Question

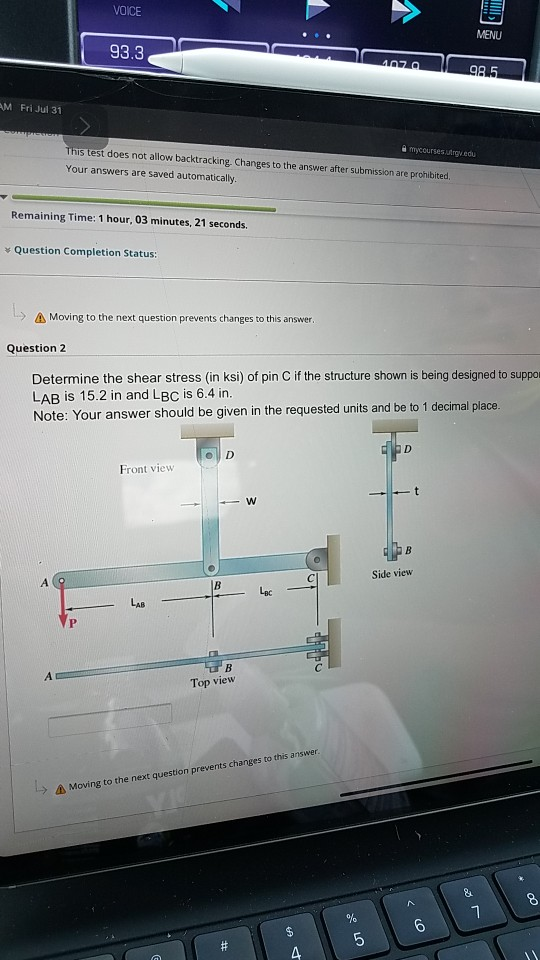

VOICE CU MENU 93.3 4070 98.5 AM Fri Jul 31 mycourses tudu This test does not allow backtracking. Changes to the answer after submission are prohibited. Your answers are saved automatically. Remaining Time: 1 hour, 03 minutes, 21 seconds. Question Completion Status: L A Moving to the next question prevents changes to this answer. Question 2 Determine the shear stress (in ksi) of pin C if the structure shown is being designed to suppo LAB is 15.2 in and LBC is 6.4 in. Note: Your answer should be given in the requested units and be to 1 decimal place. CD D Front view t W B Side view Lac LAB P B А Top view 1 Moving to the next question prevents changes to this answer & A 00 % CO $ 5 # 4

Determine the sheer stress (in ksi) of pin C if structure shown is being designed to support a 6.4 kip load. Pin C has a diameter of 0.7 in, LAB IS 15.2 in and LBC is 6.4 in

Answer 1

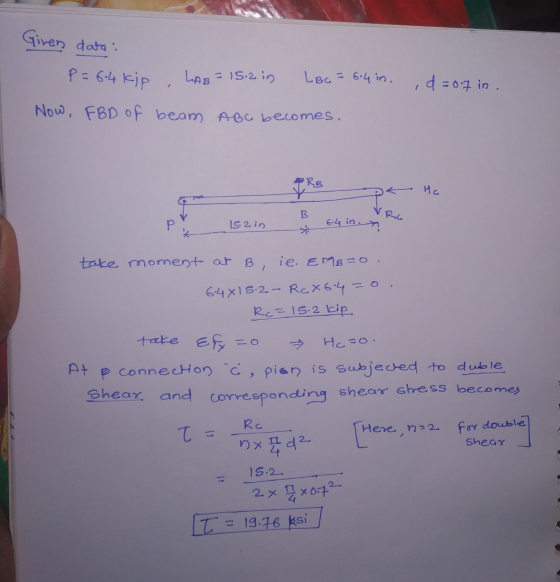

Giren data: P = 6.4 kip LAB = 15.2 in LBC 6.4 in. d=07 in . Now, FBD of beam ABC becomes. FRA Hc VRO B P IS2 in 6.4 in. n take moment at B, ie. EMB=0. 64X 15.2 - Rcx64=0 Rc=15-2 kip Hc=o. take Efx=0 At p connection i, pian is subjected to duble Shear and corresponding shear stress becomes Rc T n=2 for double [Here, nx Id² Shear 15.2 2 x 7 x 0.72 IT = 19.76 ksi
