Solve the following frame using Slope Deflection Method,

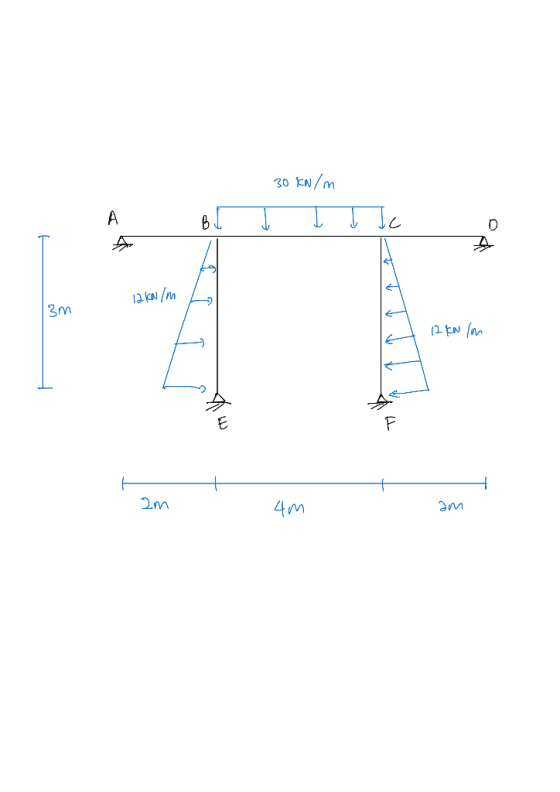

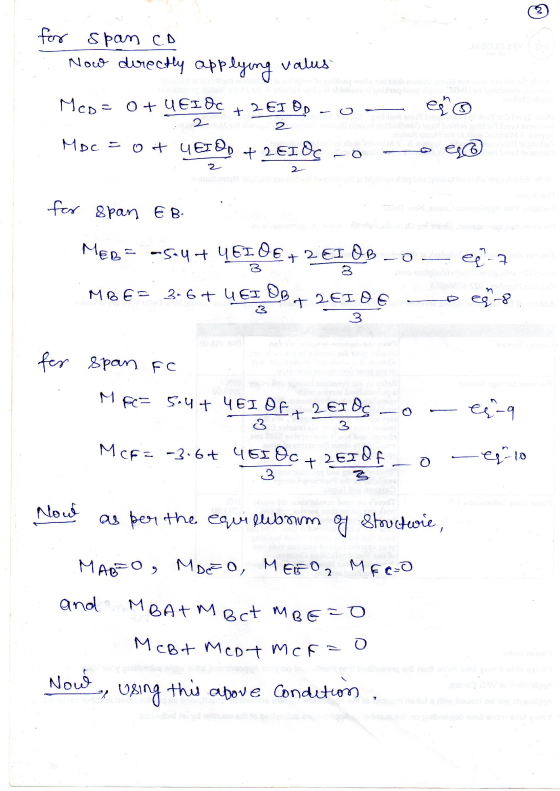

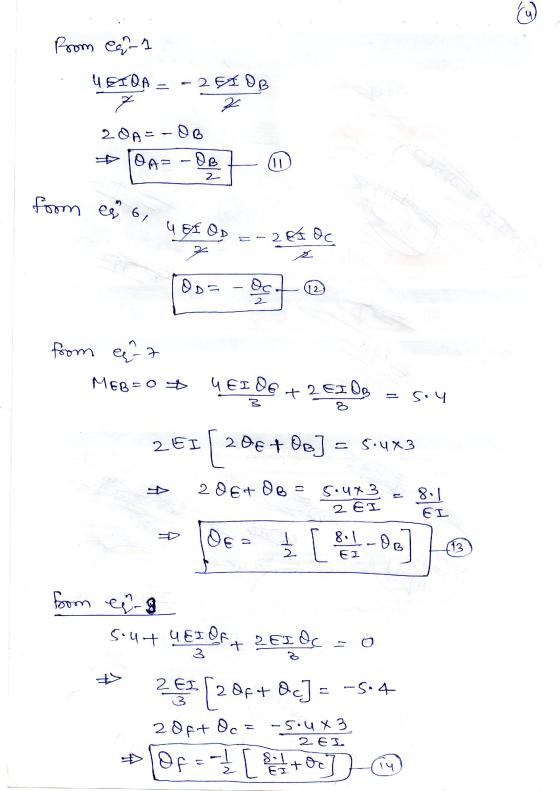

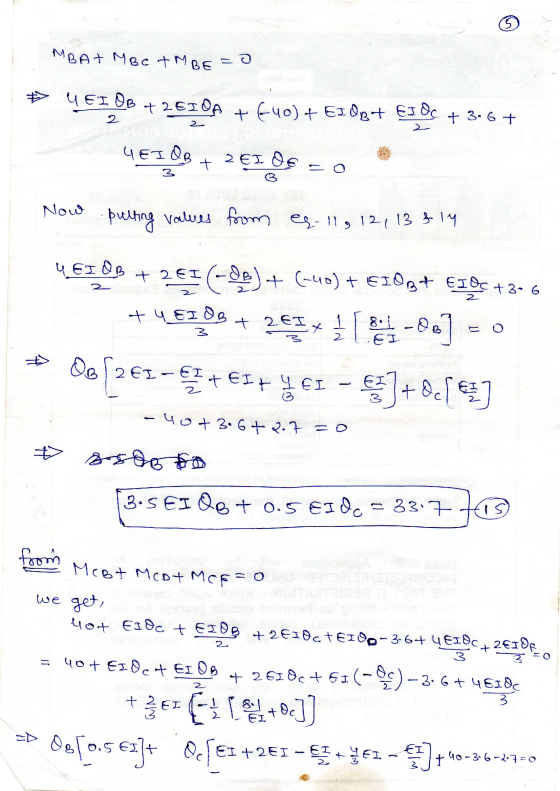

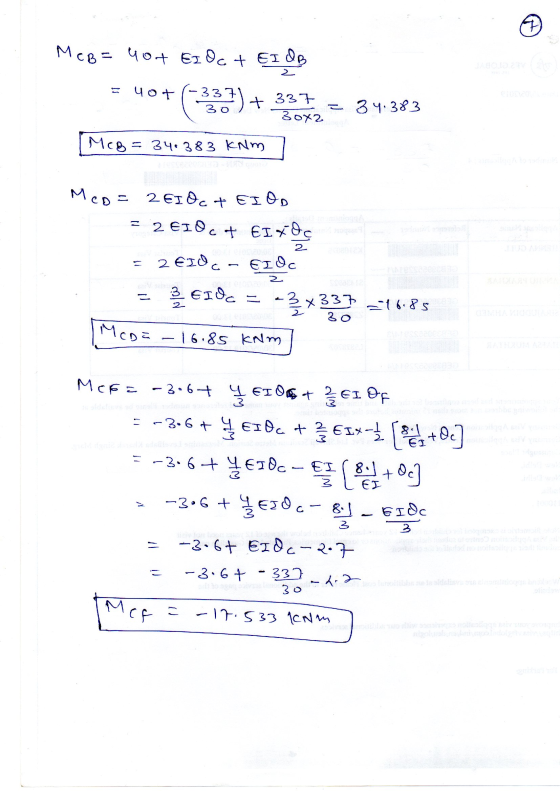

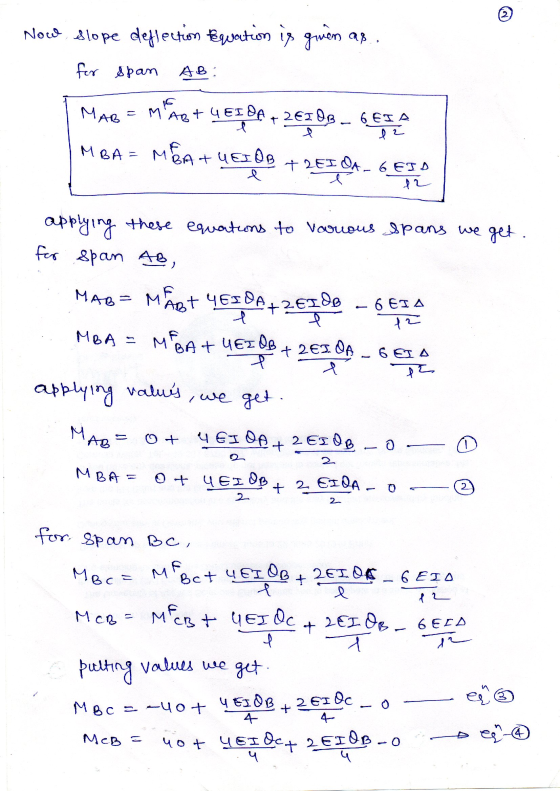

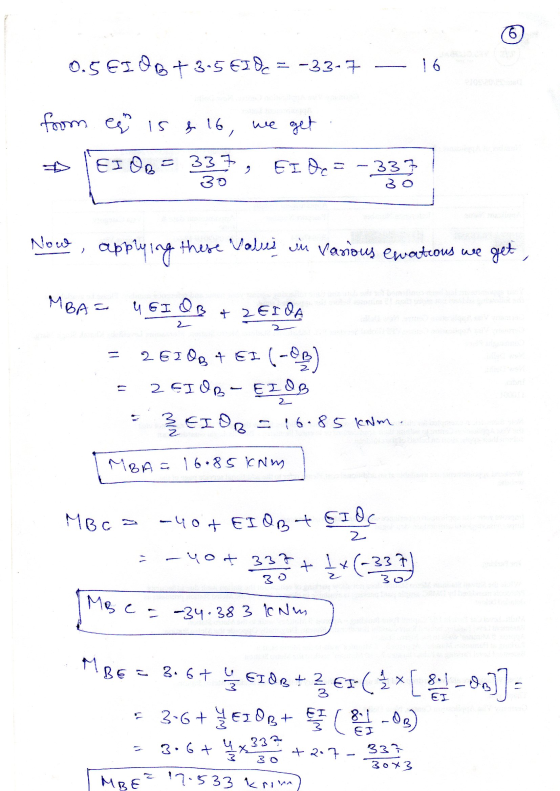

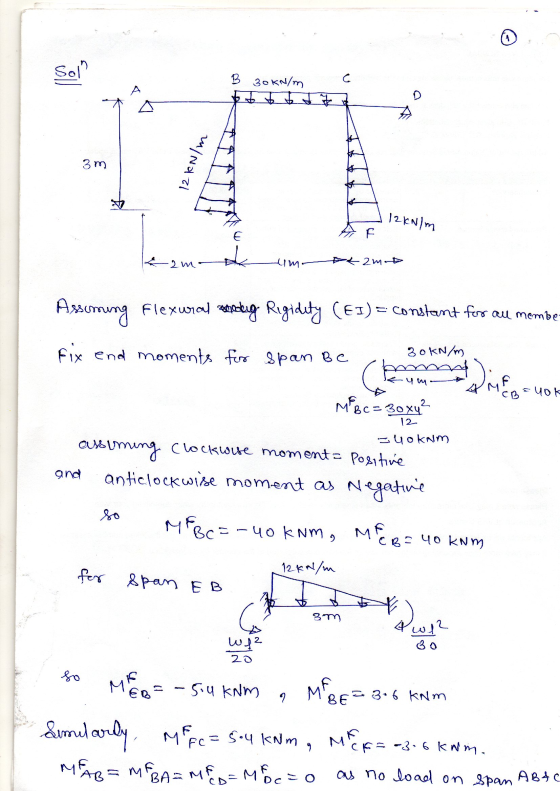

Solve the following frame using Slope Deflection Method, 30 kN/m A B1 Ic D 12 kN/m...
