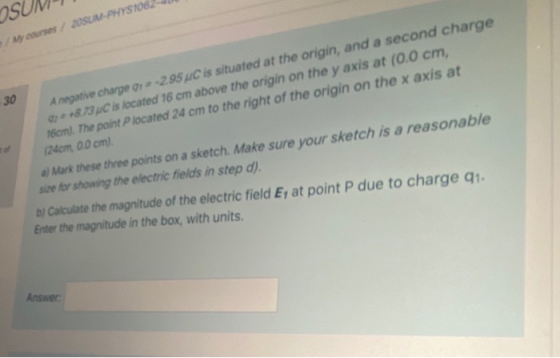

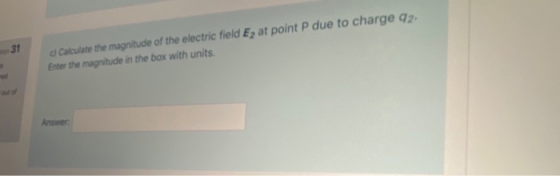

osu My courses 2OSUM-PHYS106 30 A negative charge , * -2.95 uC is situated at the...
A positive charge of magnitude Q1 = 6.5 nC is located at the origin. A negative charge Q2 = -7.5 nC is located on the positive x-axis at x = 14.5 cm from the origin
A positive charge of magnitude Q1 = 6.5 nC is located at the origin. A negative charge Q2 = -7.5 nC is located on the positive x-axis at x = 14.5 cm from the origin. The point P is located y = 15 cm above charge Q2Part (a) Calculate the x-component of the electric field at point P due to charge Q1. write your answer in units of N/C. Part (b) Calculate the y-component of the electric field at point P...
A positive charge of magnitude Q1 = 7.5 nC is located at the origin. A negative charge Q2 =-3.5 nC is located on the positive x-axis at x= 19.5 cm from the origin.
A positive charge of magnitude Q1 = 7.5 nC is located at the origin. A negative charge Q2 =-3.5 nC is located on the positive x-axis at x= 19.5 cm from the origin. The point P is located y = 14.5 cm above charge Q2. Part (a) Calculate the x-component of the electric field at point P due to charge Qy. Write your answer in units of N/C. Part (b) Calculate the y-component of the electric field at point P due to...
JV 1. A positive charge qi is located at the point (0,0) and a negative charge...
JV 1. A positive charge qi is located at the point (0,0) and a negative charge q2 at (a,0) At an arbitrary point (Oy) on the y-axis: (a) Find the magnitude of the electric field E1 due to charge qi and the magnitude of the electric field E2 due to charge q2 in terms of the given quantities q1, q2.y, and a. (b) Find the cos and sin of the angle θ that the vector E2 makes with the x-axis,...
A point charge q1 = -8.2 uC is located at the center of a thick conducting shell of inner radius a = 2 cm and outer radius b = 4.3 cm, The conducting shell has a net charge of q2 = 2.3 μC
A point charge q1 = -8.2 uC is located at the center of a thick conducting shell of inner radius a = 2 cm and outer radius b = 4.3 cm, The conducting shell has a net charge of q2 = 2.3 μC. a.) What is Ex(P), the value of the x-component of the electric field at point P, located a distance 7.9 cm along the x-axis from q1? b.) What is Ey(P), the value of the y-component of the electric field...
A point charge q1--8.2 uC is located at the center of a thick conducting shell of...
A point charge q1--8.2 uC is located at the center of a thick conducting shell of inner radius a-2 cm and outer radius b-4.8 cm, The conducting shell has a net charge of q2 -1.3 HC. 91 1) What is E P), the value of the x-component of the electric field at point P, located a distance 8 cm along the x-axis from qı? N/C Submit 2) What is Ey/(P), the value of the y-component of the electric field at...
30 An infinite line of charge with linear density λ,--S6pcim is positioned along the axis of...
30 An infinite line of charge with linear density λ,--S6pcim is positioned along the axis of a thick conducting shell of inner radius a 3.4 cm and outer radius b-54 cm and infinite length. The conducting shell is uniformly charged with a linear charge density A 2 3.5 uC/m 1) What is EXP), the electric field at point P, located at (x,y)卟7.6cm, 0cm) ? NIC Submit 2) What is Ey/P), the electric field at point P, located at (xy)-(-7.6 cm,...
A point charge of +3.0 C is situated at the origin of a set of coordinates and a point charge of +6.0 C is situated at coordinates
a)A point charge of +3.0 C is situated at the origin of a set of coordinates and a point charge of +6.0 C is situated at coordinates (3.0 m, 4.0 m). Calculate the change in the electrostatic potential energy of the system if the second charge is moved from its initial position to coordinates (3.0 m, 0.0 m). Assume the charges are in a vacuum. b)ln a certain region of space, there is a uniform electric field of magnitude 10.0 V...
A point charge of 2 uC is located at the origin of an x-y coordinate system,...
A point charge of 2 uC is located at the origin of an x-y coordinate system, while a second point charge of 4uC is located at x=10cm. Calculate the magnitude and direction of the electric field vector at a point located at y = 20 cm along the y axis
1. Two equal but opposite point charges (the positive charge being situated to the left) are...
1. Two equal but opposite point charges (the positive charge being situated to the left) are separated by distance of 38.0 cm. The electric field between the charges (at a point seven- nineteenths the distance from the positive charge) is 7.35x10% N/C. Find the magnitude of each charge? (Correct sketch that must show all component vectors and the resultant electric field, is worth 2 points out of 10) 38.0 cm
(6%) Problem 14: A positive charge of magnitude Q,-8.5 nC is located at the origin. A...
(6%) Problem 14: A positive charge of magnitude Q,-8.5 nC is located at the origin. A negative charge Q,--9.5 nC is located on the positive x-axis at x = 6.5 cm from the origin. The point P is located y - 17.5 cm above charge Q2 2 Otheexpertta.com @theexpertta.com-tracking id: 8075-83-54-49-94F2-19878. In accordance with Expert TA's Terms of Service. copying this information to any solutions sharing website is strictly forbidden. Doing so may result in termination of your Expert TA...
JV 1. A positive charge qi is located at the point (0,0) and a negative charge q2 at (a,0) At an arbitrary point (Oy) on the y-axis: (a) Find the magnitude of the electric field E1 due to charge qi and the magnitude of the electric field E2 due to charge q2 in terms of the given quantities q1, q2.y, and a. (b) Find the cos and sin of the angle θ that the vector E2 makes with the x-axis,...
A point charge q1--8.2 uC is located at the center of a thick conducting shell of inner radius a-2 cm and outer radius b-4.8 cm, The conducting shell has a net charge of q2 -1.3 HC. 91 1) What is E P), the value of the x-component of the electric field at point P, located a distance 8 cm along the x-axis from qı? N/C Submit 2) What is Ey/(P), the value of the y-component of the electric field at...
30 An infinite line of charge with linear density λ,--S6pcim is positioned along the axis of a thick conducting shell of inner radius a 3.4 cm and outer radius b-54 cm and infinite length. The conducting shell is uniformly charged with a linear charge density A 2 3.5 uC/m 1) What is EXP), the electric field at point P, located at (x,y)卟7.6cm, 0cm) ? NIC Submit 2) What is Ey/P), the electric field at point P, located at (xy)-(-7.6 cm,...
a)A point charge of +3.0 C is situated at the origin of a set of coordinates and a point charge of +6.0 C is situated at coordinates (3.0 m, 4.0 m). Calculate the change in the electrostatic potential energy of the system if the second charge is moved from its initial position to coordinates (3.0 m, 0.0 m). Assume the charges are in a vacuum. b)ln a certain region of space, there is a uniform electric field of magnitude 10.0 V...
1. Two equal but opposite point charges (the positive charge being situated to the left) are separated by distance of 38.0 cm. The electric field between the charges (at a point seven- nineteenths the distance from the positive charge) is 7.35x10% N/C. Find the magnitude of each charge? (Correct sketch that must show all component vectors and the resultant electric field, is worth 2 points out of 10) 38.0 cm
(6%) Problem 14: A positive charge of magnitude Q,-8.5 nC is located at the origin. A negative charge Q,--9.5 nC is located on the positive x-axis at x = 6.5 cm from the origin. The point P is located y - 17.5 cm above charge Q2 2 Otheexpertta.com @theexpertta.com-tracking id: 8075-83-54-49-94F2-19878. In accordance with Expert TA's Terms of Service. copying this information to any solutions sharing website is strictly forbidden. Doing so may result in termination of your Expert TA...
