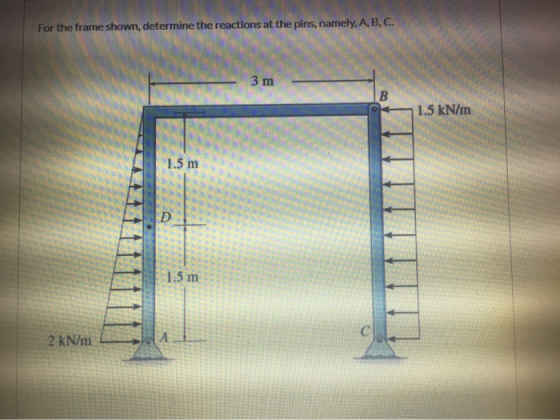

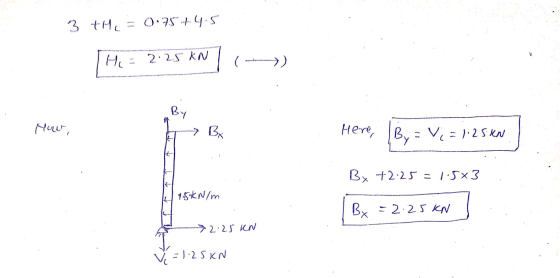

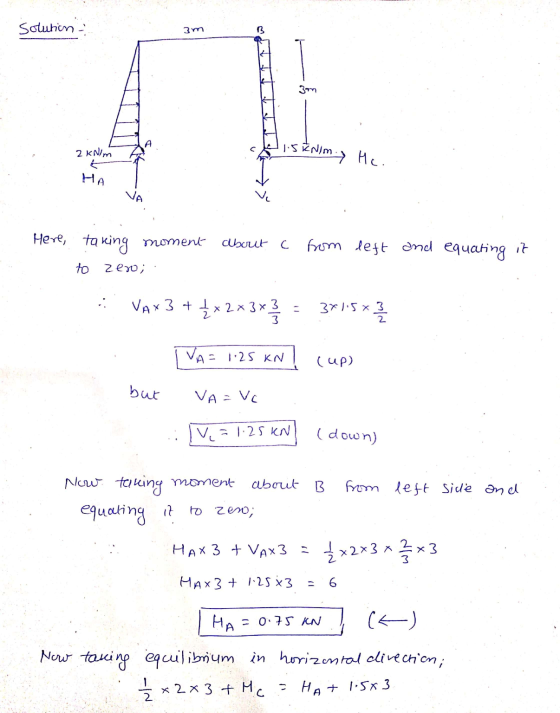

For the frame shown, determine the reactions at the pins, namely,A,B,C. 3 m B 1.5 kN/m...
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m...
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m А
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m...
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m A
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m...
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m 2A.
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN...
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN E D 80 KN 3 m C 540 kN.m B 3 m А 1.5 m 3 m
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN...
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN E D 80 KN 3 m 540 kN.m C B 3 m А 1.5 m 3 m
Please Solve Ay and Cy Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12...
Please Solve Ay and Cy
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t Q1: Deter...
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t
3. Using the image and the following information, determine the support reactions of the frame shown...
3. Using the image and the following information, determine the support reactions of the frame shown below. a. The members of the frame are shown in black. There are 3 members in the frame (AC, CE, and EF). b. The red dots represent the connection points for the frame. C. The external forces are shown by the blue lines. d. There is a pin support at A and rocker supports at B, D, and F. 250 N 100 N/m 175...
Extra Credit: Calculate the reactions at the supports at A and C for the frame shown....
Extra Credit: Calculate the reactions at the supports at A and C for the frame shown. Hint: Isolate member AB or BC to solve for the horizontal reactions 2 kN 1.5 kN 1.5 m 1 m 0.5 m The reactions at the supports A is? The reactions at the supports C is?
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will...
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m А B 2 m 2 m 2 m
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m А
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m A
For the frame shown, determine the reactions at the pins, namely, A, B, C. 3 m B 1.5 kN/m 1.5 m D 1.5 m 2 kN/m 2A.
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN E D 80 KN 3 m C 540 kN.m B 3 m А 1.5 m 3 m
For the frame shown, draw the bending moment diagram for each member. 40 kN/m 60 KN E D 80 KN 3 m 540 kN.m C B 3 m А 1.5 m 3 m
Please Solve Ay and Cy
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Consider the frame shown in (Figure 1). Assume A and C are pins w 24 kN/m. igure 1 of 1 HEE1m 12 kN/m B 4 m 6 m
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t
Q1: Determine the reactions at supports A, B and D. 4.KN 5 kN 8 kN.m 60° 3 1.5 m B 4 6-KN 45° -3 m 2 m t
3. Using the image and the following information, determine the support reactions of the frame shown below. a. The members of the frame are shown in black. There are 3 members in the frame (AC, CE, and EF). b. The red dots represent the connection points for the frame. C. The external forces are shown by the blue lines. d. There is a pin support at A and rocker supports at B, D, and F. 250 N 100 N/m 175...
Extra Credit: Calculate the reactions at the supports at A and C for the frame shown. Hint: Isolate member AB or BC to solve for the horizontal reactions 2 kN 1.5 kN 1.5 m 1 m 0.5 m The reactions at the supports A is? The reactions at the supports C is?
1. FRAME Determine the support reactions at A (fixed) and at C (rocker). (Hint: You will need 2 FBDs to solve this problem.) 10 KN 4 kN/m А B 2 m 2 m 2 m
