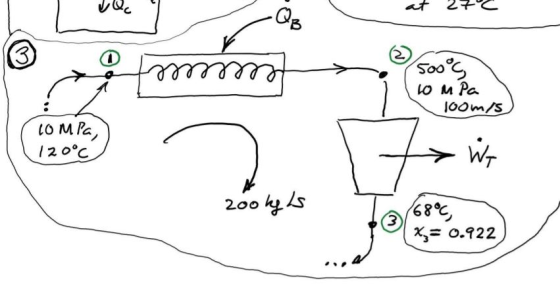

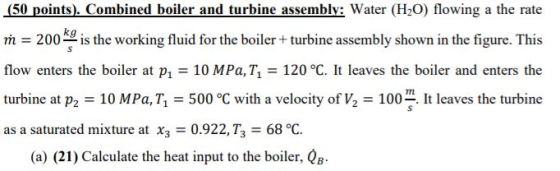

2 -Qg © 500°C 10 MPa 100m/s LOMPa, 120°C We 200 olyls 168°C) X = 0.922 (50 points). Combined boiler and turbine assembly: Water (H2O) flowing a the rate m = 200 kg is the working fluid for the boi

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

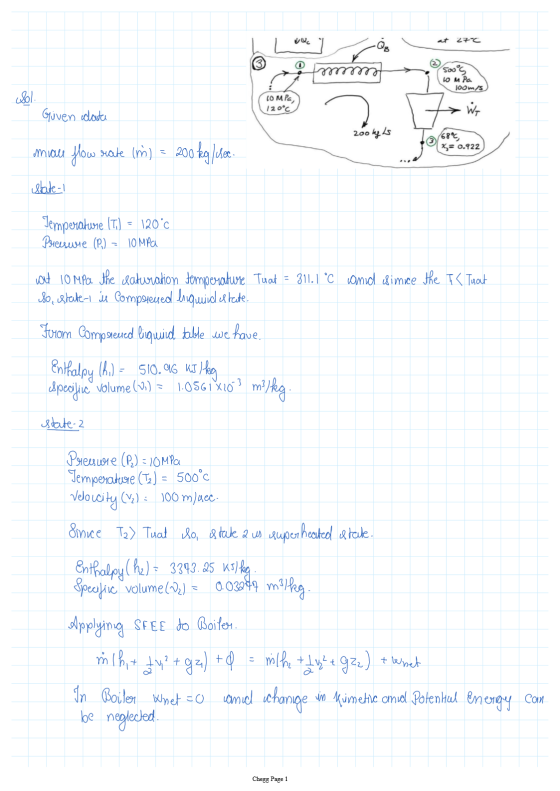

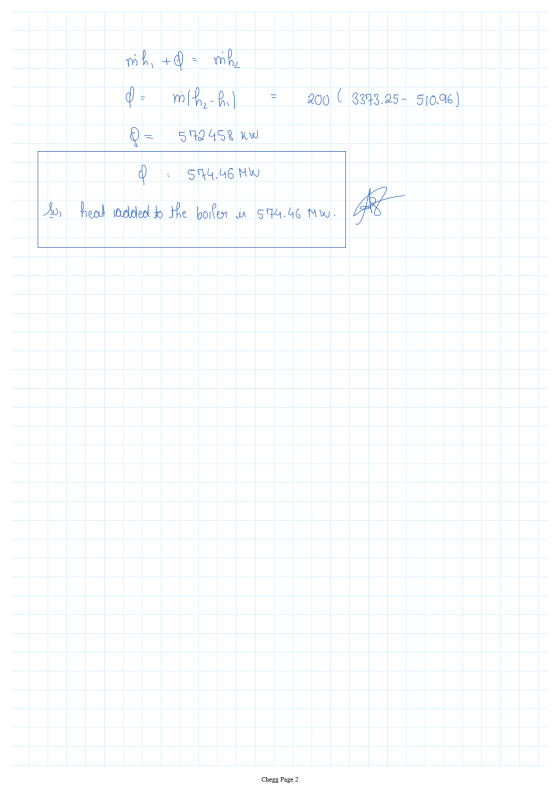

Answer 1

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

2 -Qg © 500°C 10 MPa 100m/s LOMPa, 120°C We 200 olyls 168°C) X = 0.922...

2 -Qg © 500°C 10 MPa 100m/s LOMPa, 120°C We 200 olyls 168°C) X = 0.922 (50 points). Combined boiler and turbine assembly: Water (H20) flowing a the rate m = 200 kg is the working fluid for the boiler + turbine assembly shown in the figure. This flow enters the boiler at p. = 10 MPa, T1 = 120 °C. It leaves the boiler and enters the turbine at P2 = 10 MPa, T, = 500 °C with a...
1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C...

1. Water enters the constant 130-mm inside-diameter tubes of a boiler at 7 MPa and 65°C and leaves the tubes at 6 MPa and 450°C with a velocity of 80 m/s. Calculate the velocity of the water at the tube inlet and the inlet volume flow rate. [5-14] 2. Air enters a nozzle steadily at 50 psia, 140°F, and 150 ft/s and leaves at 14.7 psia and 900 ft/s. The heat loss from the nozzle is estimated to be 6.5...
C and D please. AGL Energy is expanding the capacity of the Liddell Power Station. The plan is to commission a steam tu...

C and D please. AGL Energy is expanding the capacity of the Liddell Power Station. The plan is to commission a steam turbine power plant that operates on a regenerative Rankine cycle and has a net power output of 150 MW where steam enters the turbine at 10 MPa and 500°C, and the condenser at 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the both pump is 95 percent. Steam is extracted from the...

5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves...

5-30 Air enters an adiabatic nozzle steadily at 300 kPa, 200°C, and 30 m/s and leaves at 100 kPa and 180 m/s. The inlet area of the nozzle is 80 cm². Determine (a) the mass flow rate through the nozzle, (b) the exit temperature of the air, and (c) the exit area of the nozzle. Answers: (a) 0.5304 kg/s, (b) 184.6°C, (c) 38.7 cm P = 300 kPa T, = 200°C Vi = 30 m/s A = 80 cm AIR...
Problem 2 (Marks 3) AGL Energy is expanding the capacity of the Liddell Power Station. The plan is to commission a stea...

Problem 2 (Marks 3) AGL Energy is expanding the capacity of the Liddell Power Station. The plan is to commission a steam turbine power plant that operates on a regenerative Rankine cycle and has a net power output of 150 MW where steam enters the turbine at 10 MPa and 500°C, and the condenser at 10 kPa. The isentropic efficiency of the turbine is 80 percent, and that of the both pump is 95 percent. Steam is extracted from the...
Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands t...

Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30 KPa T- 90 °C T3-100 °C Are the above calculated/estimated conditions true? Calculate the true values. Problem 3. Problem 2 The isentropic efficiency of a turbine is 90% when a steam at 500 °C 10 MPa , expands to 0.05 MPa saturated steam. The following conditions were calculated/estimated: P2s-30...

4. An Ideal diesel engine has a compression ratio of 20 and uses air as the...

4. An Ideal diesel engine has a compression ratio of 20 and uses air as the working fluid. The state of air at the beginning of the compression process is 95kPa and 20°C. If the maximum temperature in the cycle is not to exceed 2200K, determine a) the thermal efficiency and b) the mean effective pressure. Assume constant specific heats for air at room temperature. 5. An aircraft engine operates on a simple ideal Brayton cycle with a pressure ratio...
20 points Save Anga LOS (20 pts) Consider the cogeneration plant shown in Figure below Steam...

20 points Save Anga LOS (20 pts) Consider the cogeneration plant shown in Figure below Steam enters the turbine at 5 MPa and 300 C Single Efect Evaporation desalination unit-Labelled as SEE in the block dia Some steam is extracted from the turbine at 500 kPa for process heating in a to the boiler pressure At simes of high demand for process heat, some steam leaving the ho steam continues to expand to 5kPa Seam is then condensed t constant...
