II. Series-Parallel Circuits Use the Reduce and Return circuit analysis approach to solve for all voltages...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

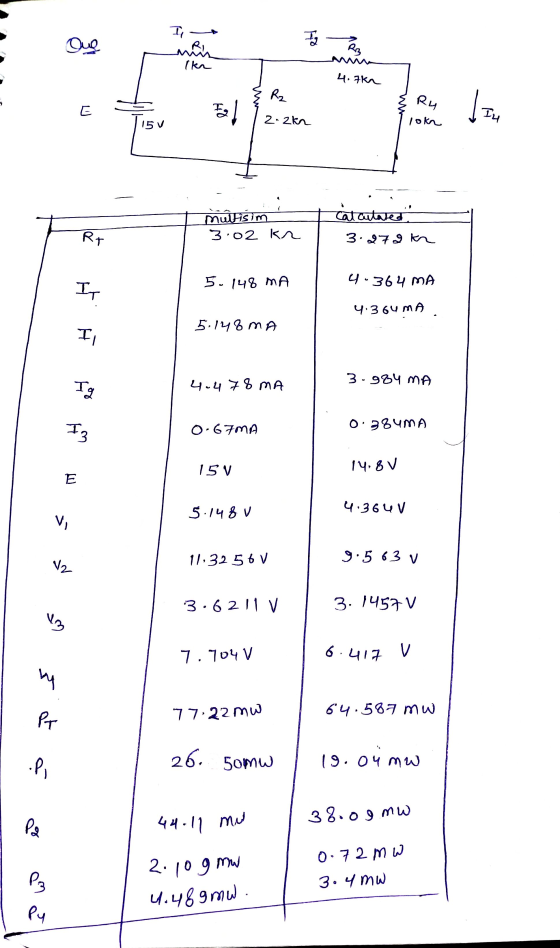

I One Tag RB (kn 4.7kn Rz R4 E love El In 2.2kn lokh Tisu catcutated multisim 3.02 km R+ 3.279kr 5.148 MA 4.364 MA I 4:36UMA

Answer 2

Similar Homework Help Questions

please include work. II. Series-Parallel Circuits Use the Reduce and Return circuit analysis approach to solve...

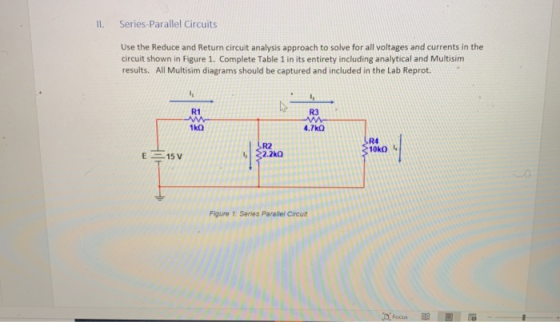

please include work. II. Series-Parallel Circuits Use the Reduce and Return circuit analysis approach to solve for all voltages and currents in the circuit shown in Figure 1. Complete Table 1 in its entirety including analytical and Multisim results. All Multisim diagrams should be captured and included in the Lab Reprot. R1 R3 w 4.7ko 1ko R2 2.2k RA 10k0 E = 15 V Figure 1: Series Parallel Circuit TO Table 1: Series-Parallel Analysis (Reduce and Return Approach) Calculated Multisim...
Please calculate whats boxed 1 R1 w 1kg R3 w 4.7k RA 10k0 SR2 2.2ko E15V...

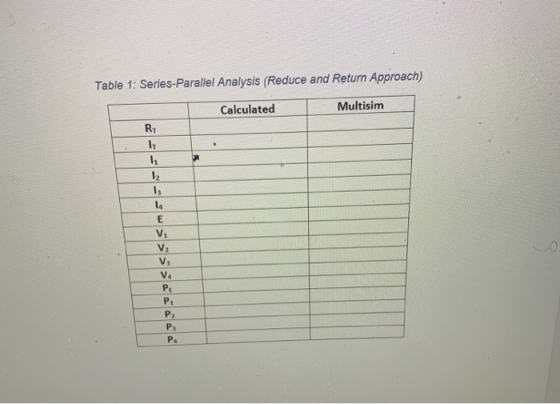

Please calculate whats boxed 1 R1 w 1kg R3 w 4.7k RA 10k0 SR2 2.2ko E15V Figure 1: Series Parallel Circuit Table 1: Series-Parallel Analysis (Reduce and Return Approach) Calculated Multisim RI E VI V V
