Question
A folding table is shown below.

25.) neglecting friction and weights of members, compute the pin reaction at A.
26.) neglecting friction and weights of members, compute the pin reaction at C.

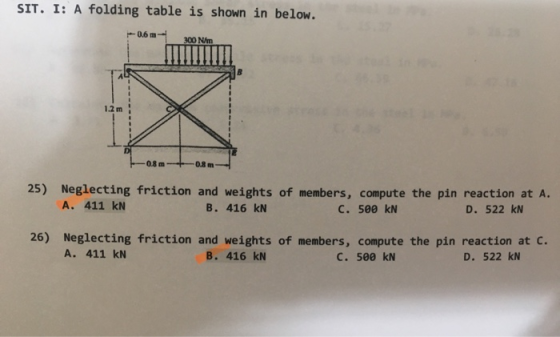

SIT. I: A folding table is shown in below. -0.6 m-- 300 Nm 1.2 m 0.8 m 0.8 m 25) Neglecting friction and weights of members,
0 0
Add a comment Improve this question Transcribed image text
Answer #1

STEPI: GIVEN FOR A FOLDING TABLE : 0.6m 300NM B A 1.2m E D 0.8m 0.8m STEP II: TO FIND NEGLECTING WEIGHT OF MEMBERS AND FRICTI
