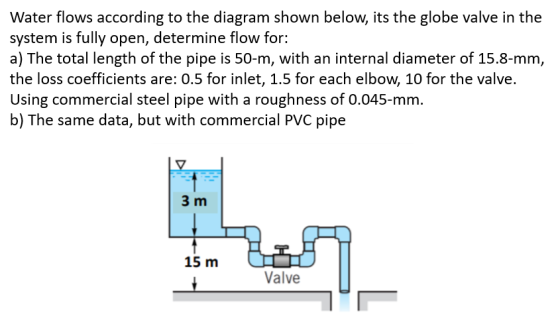

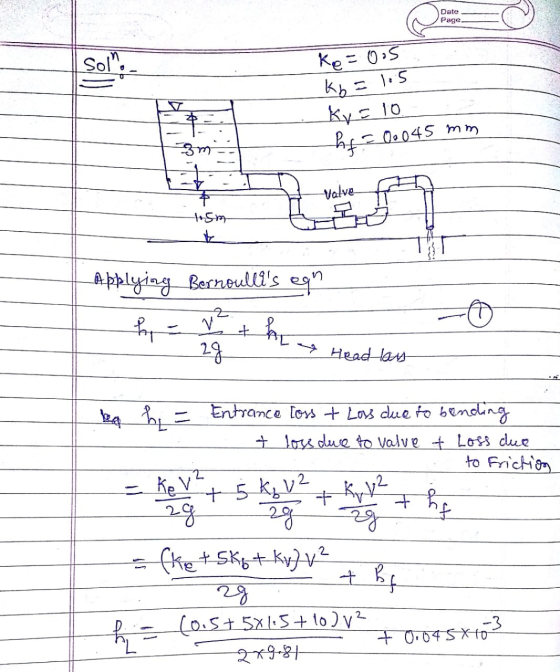

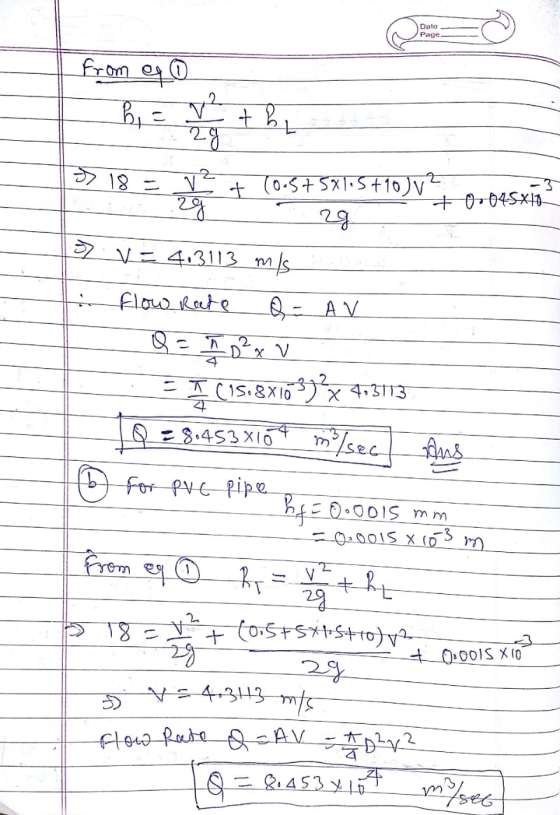

Water flows according to the diagram shown below, its the globe valve in the system is...
The Figure below (Figure 3) shows a pipe system with a valve and two reservoirs
QUESTION3 The Figure below (Figure 3) shows a pipe system with a valve and two reservoirs. A pump transports a constant flow rate of Q = 0.1 m3/s of water from reservoir A to reservoir B. At four sections the pipe has bends and the roughness of the pipe is ks = 1.5 mm. The pipe has a diameter D = 34 cm and a total length L = 500 m. The water level in reservoir B is Δh=4.67 m above...
Water at 15° is flowing at the rate of 14.4m²/hr (Fig. 2). The head added by...
Water at 15° is flowing at the rate of 14.4m²/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of ε = 5.1 x 108m. Assume that the entrance from Tankl is through a rounded inlet with inlet radius of 10mm and that the elbows are...
The system shown in the diagram consists of 1200m of cast-iron pipe with an internal diameter...
The system shown in the diagram consists of 1200m of cast-iron pipe with an internal diameter of 5cm (roughness of 0.00015 ft), two 45o and four 90o long radius elbows, a fully open bevel seat globe valve, and a sharp exit into a reservoir. If the elevation difference between the inlet and level in the reservoir is 10m, what gauge pressure is required at point 1 to deliver 0.005m^3/s of water at 20oC into the reservoir (use density of 998.2...
Threaded regular 90° elbow Square-edge exit Square-edge entrance Half-open gale valve Miter 90° elbow Open globe...
Threaded regular 90° elbow Square-edge exit Square-edge entrance Half-open gale valve Miter 90° elbow Open globe valve Water is pumped between two reservoirs through a 5 cm diameter pipe that is 12.2 m long with a number of minor losses shown in the image. The elevation difference between the two reservoirs is Az = 2.8 m. For a pipe roughness ratio of e/D=0.001, what is the minimum pump power (in W) required to move 30°C water at a volumetric flow...
) 25 points - Water flows in a piping system a section of which is shown...
) 25 points - Water flows in a piping system a section of which is shown below.Pipe is 30 mm ID commercial steel pipe. Velocity of flow is 1.6 m/s and is constant throughout. Pressure at Pt is 200 kPa. All the valves are fully open gate valves, all the elbows are regular 90° threaded. For water, p:1000 kg/m3, 0.00108 N-s/m2. Other necessary data is given on the diagram. Assume the flow is incompressible and steady. Determine the volume flow...
- + Fit to page LO (15 marks) Exercise 2 Water at 15° is flowing at...
- + Fit to page LO (15 marks) Exercise 2 Water at 15° is flowing at the rate of 14.4m/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of s=5.1 x 10ʻm. Assume that the entrance from Tankl is through a rounded inlet with inlet...
The bathroom plumbing of a building consists of 1.5 cm diameter commercial steel pipes with threaded connectors, as show...
The bathroom plumbing of a building consists of 1.5 cm diameter
commercial steel pipes with threaded connectors, as shown in
Fig.
(1) If the gauge pressure at the inlet of the system is 200 kPa
during a shower and the toilet reservoir is full (no flow in that
branch), determine the flow rate of water through the shower
head.
**Roughness of commercial steel
4.6105 Shower head KL-12 Toilet reservoir with float KL-14 2 m Globe valve, fully open KL-10 K,=10...
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a...
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a volumetric flow rate of 0.006 m/s through a 120-m long pipe of 5 cm diameter. The roughness ratio of the pipe is a/d = 0.001. There are some fittings and valves in the pipe system, as shown in Figure Q1. The loss coefficients of the valves and fittings can be found in Table Q1. The Darcy friction factor can be found in the Moody...
Water at 15° is flowing at the rate of 14.4m/hr (Fig. 2). The head added by...
Water at 15° is flowing at the rate of 14.4m/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of s=5.1 x 10ʻm. Assume that the entrance from Tankl is through a rounded inlet with inlet radius of 10mm and that the elbows are standard 90°....
Please solve a,b,c,d,e,f 1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe...
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
Water at 15° is flowing at the rate of 14.4m²/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of ε = 5.1 x 108m. Assume that the entrance from Tankl is through a rounded inlet with inlet radius of 10mm and that the elbows are...
Threaded regular 90° elbow Square-edge exit Square-edge entrance Half-open gale valve Miter 90° elbow Open globe valve Water is pumped between two reservoirs through a 5 cm diameter pipe that is 12.2 m long with a number of minor losses shown in the image. The elevation difference between the two reservoirs is Az = 2.8 m. For a pipe roughness ratio of e/D=0.001, what is the minimum pump power (in W) required to move 30°C water at a volumetric flow...
) 25 points - Water flows in a piping system a section of which is shown below.Pipe is 30 mm ID commercial steel pipe. Velocity of flow is 1.6 m/s and is constant throughout. Pressure at Pt is 200 kPa. All the valves are fully open gate valves, all the elbows are regular 90° threaded. For water, p:1000 kg/m3, 0.00108 N-s/m2. Other necessary data is given on the diagram. Assume the flow is incompressible and steady. Determine the volume flow...
- + Fit to page LO (15 marks) Exercise 2 Water at 15° is flowing at the rate of 14.4m/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of s=5.1 x 10ʻm. Assume that the entrance from Tankl is through a rounded inlet with inlet...
The bathroom plumbing of a building consists of 1.5 cm diameter
commercial steel pipes with threaded connectors, as shown in
Fig.
(1) If the gauge pressure at the inlet of the system is 200 kPa
during a shower and the toilet reservoir is full (no flow in that
branch), determine the flow rate of water through the shower
head.
**Roughness of commercial steel
4.6105 Shower head KL-12 Toilet reservoir with float KL-14 2 m Globe valve, fully open KL-10 K,=10...
Water (density 998 kg/mº, dynamic viscosity 0.001 Pa s) is pumped between two reservoirs at a volumetric flow rate of 0.006 m/s through a 120-m long pipe of 5 cm diameter. The roughness ratio of the pipe is a/d = 0.001. There are some fittings and valves in the pipe system, as shown in Figure Q1. The loss coefficients of the valves and fittings can be found in Table Q1. The Darcy friction factor can be found in the Moody...
Water at 15° is flowing at the rate of 14.4m/hr (Fig. 2). The head added by the pump is equivalent to 80 m. Both tanks are vented. Suction line is 15m long and discharge line is 200m long. Both suction and discharge lines are standard 2-inch (5.1cm) clean steel pipe with roughness value of s=5.1 x 10ʻm. Assume that the entrance from Tankl is through a rounded inlet with inlet radius of 10mm and that the elbows are standard 90°....
Please solve a,b,c,d,e,f
1) A water fountain is to be installed at a remote location by attaching a cast iron pipe directly to a water main through which water is flowing. The entrance to the pipe is sharp-edged 15m (K-0.5), and the 15m long piping system involves three 90 bends without vanes (K1.1), a fully open gate valve (K.-0.2), and a fully open angle valve (K-5). If the diameter of the pipe is 2 em and the system is to...
