1. Verify the operation of the Adder 7483, to do this implement a circuit that performs the sum of two numbers A and B each of two bits according to the pin connection in the annex. View outputs with a 7-segment display.

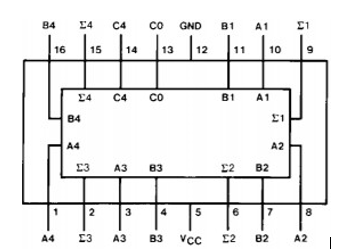

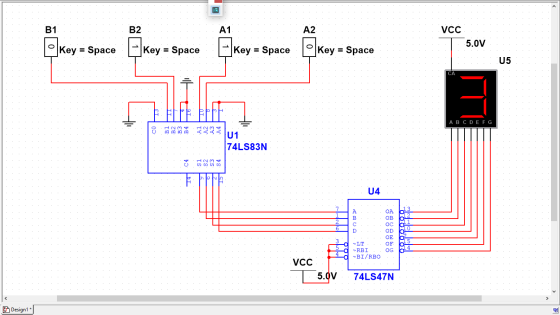

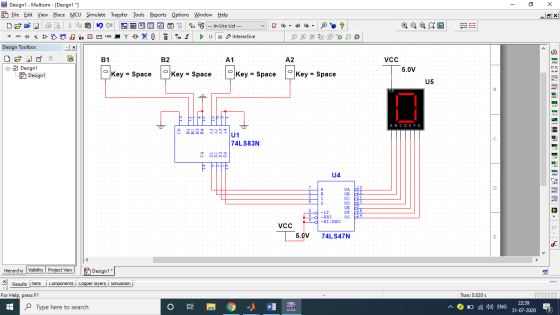

The circuit is wired in NI MULTISIM as below
![X 6 X Design 1 - Multisim - [Design1 *] Eile Edit View Place MCU Simulate Transfer Tools Reports Options Window Help HER % Ee](http://img.homeworklib.com/questions/206afb70-eb1a-11ea-8d73-cfbc49b2bca1.png?x-oss-process=image/resize,w_560)

Since the numbers are two bit, we will connect A3, A4, B3 and B4 to ground. The input carry bit is also grounded. The output is given to a 7447 BCD to seven segment decoder and the output is connected to the seven segment display
Case - I : A2 = 0, A1 = 0, B2 = 0, B1 = 0
So A = 0, B = 0. Sum = 0

Case - II : A2 = 0, A1 = 0, B2 = 0, B1 = 1
So A = 0, B = 1. Sum = 1

Case - III : A2 = 0, A1 = 0, B2 = 1, B1 = 0
So A = 0, B = 2. Sum = 2

Case - IV : A2 = 0, A1 = 0, B2 = 1, B1 = 1
So A = 0, B = 3. Sum = 3

Case - V : A2 = 0, A1 = 1, B2 = 0, B1 = 0
So A = 1, B = 0. Sum = 1

Case - VI : A2 = 0, A1 = 1, B2 = 0, B1 = 1
So A = 1, B = 1. Sum = 2

Case - VII : A2 = 0, A1 = 1, B2 = 1, B1 = 0
So A = 1, B = 2. Sum = 3

Case - VIII : A2 = 0, A1 = 1, B2 = 1, B1 = 1
So A = 1, B = 3. Sum = 4

Case - IX : A2 = 1, A1 = 0, B2 = 0, B1 = 0
So A = 2, B = 0. Sum = 2

Case - X : A2 = 1, A1 = 0, B2 = 0, B1 = 1
So A = 2, B = 1. Sum = 3

Case - XI : A2 = 1, A1 = 0, B2 = 1, B1 = 0
So A = 2, B = 2. Sum = 4

Case - XII : A2 = 1, A1 = 0, B2 = 1, B1 = 1
So A = 2, B = 3. Sum = 5

Case - XIII : A2 = 1, A1 = 1, B2 = 0, B1 = 0
So A = 3, B = 0. Sum = 3

Case - XIV : A2 = 1, A1 = 1, B2 = 0, B1 = 1
So A = 3, B = 1. Sum = 4

Case - XV: A2 = 1, A1 = 1, B2 = 1, B1 = 0
So A = 3, B = 2. Sum = 5

Case - XVI: A2 = 1, A1 = 1, B2 = 1, B1 = 1
So A = 3, B = 3. Sum = 6

We can write the truth table as below
