Use a Buckboost converter
Question 1 As a power electronics engineer, you have been contracted by...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK...

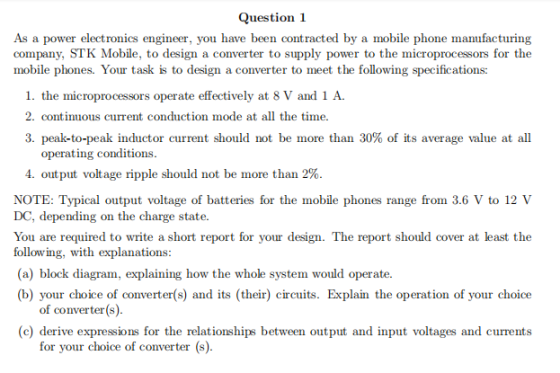

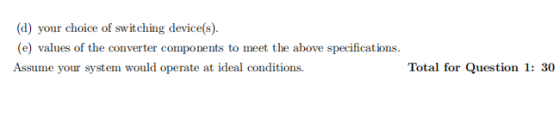

As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: 1. the microprocessors operate effectively at 8 V and 1 A. 2. continuous current conduction mode at all the time. 3. peak-to-peak inductor current should not be more than 30% of its average value at all operating...
How would you solve this question? Question 1 As a power electronics engineer, you have been...
How would you solve this question?
Question 1 As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: 1. the microprocessors operate effectively at 8 V and 1 A. 2. continuous current conduction mode at all the time. 3. peak-to-peak inductor current should not be more than...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: a). the microprocessors operate effectively at 8 V and 1 A. b). continuous current conduction mode at all the time. c). peak-to-peak inductor current should not be more than 30% of its average value at all operating...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: 1. the microprocessors operate effectively at 8 V and 1 A. 2. continuous current conduction mode at all the time. 3. peak-to-peak inductor current should not be more than 30% of its average value at all operating...
You are required to design a 10V to 5V non-isolated step-down converter. The converter specificat...
You are required to design a 10V to 5V non-isolated step-down converter. The converter specifications are as follows: • Minimum input voltage: 6V • Maximum input voltage: 10V • Output voltage: 5V • Switching frequency: 20 kHz • Output voltage ripple: 20mV • Maximum output load current: 1A • Minimum output load current: 0.1A The converter must operate in the continuous conduction mode under all output current conditions and input voltage conditions. During this design process, provide good engineering reasons...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Powe...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value. Label the transformer turns ratio.
1. (35 points) Switch mode...
Please help in this question conserning the buck-boost converter 4. a. Draw a buck-boost converter to...
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
1. to design a high efficiency d.c. to d.c. power converter with the given specifications Input v...
1. to design a high efficiency d.c. to d.c. power converter with the given specifications Input voltage Output voltage Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV min 10V max 15V nominal (regulated) 8V Define a suitable power circuit topology to meet the above specification Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the...
Problem 3: (20 points) Design a suitable power converter (only the power stage) for the following...
Problem 3: (20 points) Design a suitable power converter (only the power stage) for the following specifications Input voltage: 36 V to 72 V; required output voltage: 48 V regulated; load current: 2 A to 10 A Maximum allowable pk-pk output ripple voltage: 0.5 V; maximum allowable pk-pk ripple in any inductor current: 2 A. Assume a switching frequency of 200 kHz. Show a complete schematic and the following details in your answer. L: Minimum L value C: Minimum C...
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with...
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with universal input voltage, i.e the input voltage can be either 120V (RMS)+/- 10% at 60 Hz or 240 V(RMS) +/- 10% at 50 Hz. The output voltage is regulated at 400 V DC and the maximum (average) output power is 1kW. The switching frequency is 200 kHz. (a) Calculate the value of inductance needed to keep its peak peak ripple current to be less...
How would you solve this question?
Question 1 As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: 1. the microprocessors operate effectively at 8 V and 1 A. 2. continuous current conduction mode at all the time. 3. peak-to-peak inductor current should not be more than...
As a power electronics engineer, you have been contracted by a mobile phone manufacturing company, STK Mobile, to design a converter to supply power to the microprocessors for the mobile phones. Your task is to design a converter to meet the following specifications: a). the microprocessors operate effectively at 8 V and 1 A. b). continuous current conduction mode at all the time. c). peak-to-peak inductor current should not be more than 30% of its average value at all operating...
1. (35 points) Switch mode DC DC Converters. a. (15 points) Design a flyback DC/DC power converter to the following specifications. Assume ideal components Input Voltage Output Voltage Output Power Switching frequency Maximum Current Ripple in the filter inductor Output ripple voltage: Continuous conduction 170 VDC 12 VDC 40 Watts 750 kHz 1.2 Amps Your answer should include a circuit diagram with each energy storage element labeled with its value. Label the transformer turns ratio.
1. (35 points) Switch mode...
Please help in this question conserning the buck-boost
converter
4. a. Draw a buck-boost converter to be implemented with an IGBT and diode b. Suggest suitable component values if such a converter is to serve resistive loads between 15 W and 30 W with a constant 8 V output, when the converter's input can vary between 5 V and 12 V. The output peak-to-peak voltage ripple should be less than 5% of the output voltage. The converter should operate in...
1. to design a high efficiency d.c. to d.c. power converter with the given specifications Input voltage Output voltage Nominal load current: 4A Inductor current ripple: 0.1A max Switching frequency: 30 kHz Output voltage ripple: 20 mV min 10V max 15V nominal (regulated) 8V Define a suitable power circuit topology to meet the above specification Sketch a circuit diagram of the chosen power circuit topology (a) Define the minimum and maximum duty cycles assuming that the control circuit keeps the...
Problem 3: (20 points) Design a suitable power converter (only the power stage) for the following specifications Input voltage: 36 V to 72 V; required output voltage: 48 V regulated; load current: 2 A to 10 A Maximum allowable pk-pk output ripple voltage: 0.5 V; maximum allowable pk-pk ripple in any inductor current: 2 A. Assume a switching frequency of 200 kHz. Show a complete schematic and the following details in your answer. L: Minimum L value C: Minimum C...
Problem 1: (40 points) A boost converter based power factor correction circuit needs to operate with universal input voltage, i.e the input voltage can be either 120V (RMS)+/- 10% at 60 Hz or 240 V(RMS) +/- 10% at 50 Hz. The output voltage is regulated at 400 V DC and the maximum (average) output power is 1kW. The switching frequency is 200 kHz. (a) Calculate the value of inductance needed to keep its peak peak ripple current to be less...
