Given the circuit below, determine the apparent power supplied by the circuit. Give your answer as...
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer...

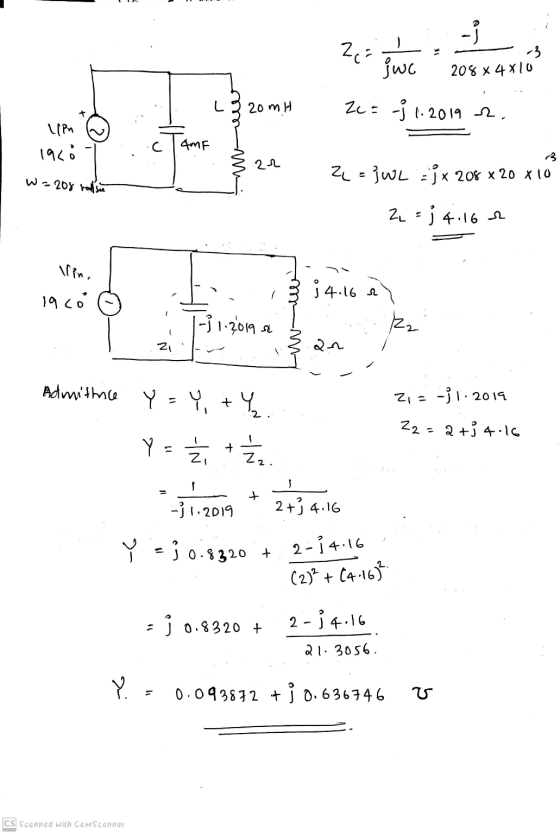

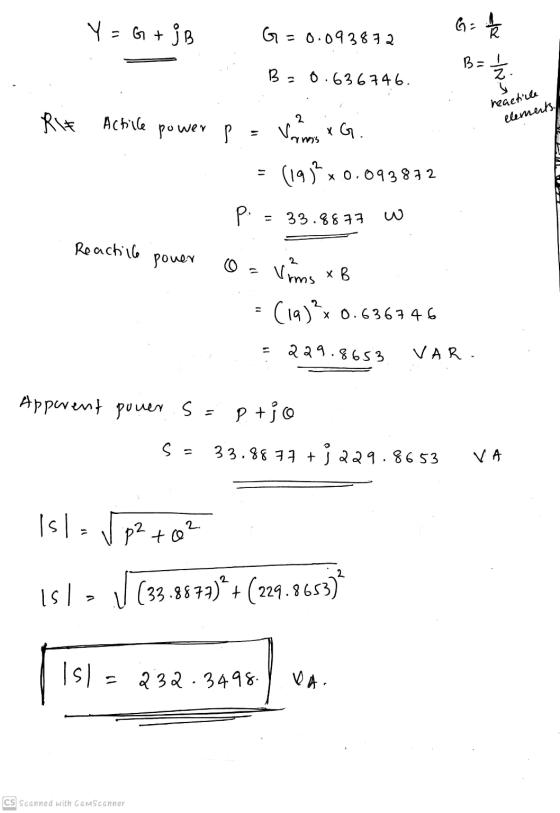

Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer...
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer...
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Question 3 25 pts Given the circuit below, determine the apparent power supplied by the circuit....
Question 3 25 pts Given the circuit below, determine the apparent power supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w=851 rad/sec and Vin = 14 20°V 20 mH Vout(t) Vin(t) 4 mF 292
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer...
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer as positive and in units of VAR. Use the following quantities: w = 100 rad/sec and Vin = 1220°V + 20 mH Vout(t) + Vin(t) 4 mF 292
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer...
Given the circuit below, determine the reactive power Q
supplied by the circuit. Give your answer as positive and in units
of VAR.
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer as positive and in units of VAR. Use the following quantities: w = 9,043 rad/sec and Vin = 28 20° + Vout HH m 3 mH 5 F 400 Vin 2002
Given the circuit below, determine the average real power supplied by the circuit. Give your answer...
Given the circuit below, determine the average real power supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 485 rad/sec and Vin = 2520°V Vout 3 mH 5 F 4002 200
Given the circuit below, determine the average real power P supplied by the circuit. Give your...
Given the circuit below, determine the average real power P supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 9,356 rad/sec and Vin = 45 20 V Vout 3 mH 5 ur 4022 V 2002
Given the circuit below, determine the power factor of the source, given that it has a...
Given the circuit below, determine the power factor of the source, given that it has a frequency of 90 rad/sec. + 20 mH Vout(t) + Vin(t) 4 mF 222 A source is supplying a circuit with 1,294 W of real average power, with a power factor of 0.30 leading. Determine the apparent power being supplied by the source.
Question 3 25 pts Given the circuit below, determine the average real power P supplied by...
Question 3 25 pts Given the circuit below, determine the average real power P supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 744 rad/sec and Vin = 47 20°V Vout 3 mH 5 F 4002 V. 2002 25 pts U Question 4
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Given the circuit below, determine the apparent power |S| supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w = 112 rad/sec and Vin = 17 20°V + 20 mH Vout(t) + Vin(t) 4 mF 22
Question 3 25 pts Given the circuit below, determine the apparent power supplied by the circuit. Give your answer as positive and in units of VA. Use the following quantities: w=851 rad/sec and Vin = 14 20°V 20 mH Vout(t) Vin(t) 4 mF 292
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer as positive and in units of VAR. Use the following quantities: w = 100 rad/sec and Vin = 1220°V + 20 mH Vout(t) + Vin(t) 4 mF 292
Given the circuit below, determine the reactive power Q
supplied by the circuit. Give your answer as positive and in units
of VAR.
Given the circuit below, determine the reactive power Q supplied by the circuit. Give your answer as positive and in units of VAR. Use the following quantities: w = 9,043 rad/sec and Vin = 28 20° + Vout HH m 3 mH 5 F 400 Vin 2002
Given the circuit below, determine the average real power supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 485 rad/sec and Vin = 2520°V Vout 3 mH 5 F 4002 200
Given the circuit below, determine the average real power P supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 9,356 rad/sec and Vin = 45 20 V Vout 3 mH 5 ur 4022 V 2002
Given the circuit below, determine the power factor of the source, given that it has a frequency of 90 rad/sec. + 20 mH Vout(t) + Vin(t) 4 mF 222 A source is supplying a circuit with 1,294 W of real average power, with a power factor of 0.30 leading. Determine the apparent power being supplied by the source.
Question 3 25 pts Given the circuit below, determine the average real power P supplied by the circuit. Give your answer as positive and in units of W. Use the following quantities: w = 744 rad/sec and Vin = 47 20°V Vout 3 mH 5 F 4002 V. 2002 25 pts U Question 4
