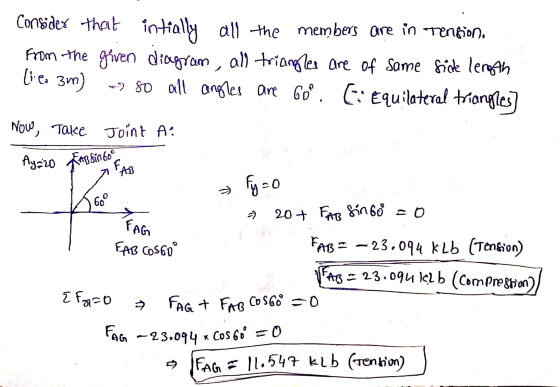

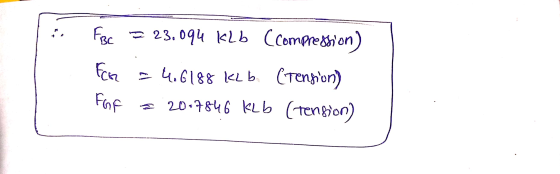

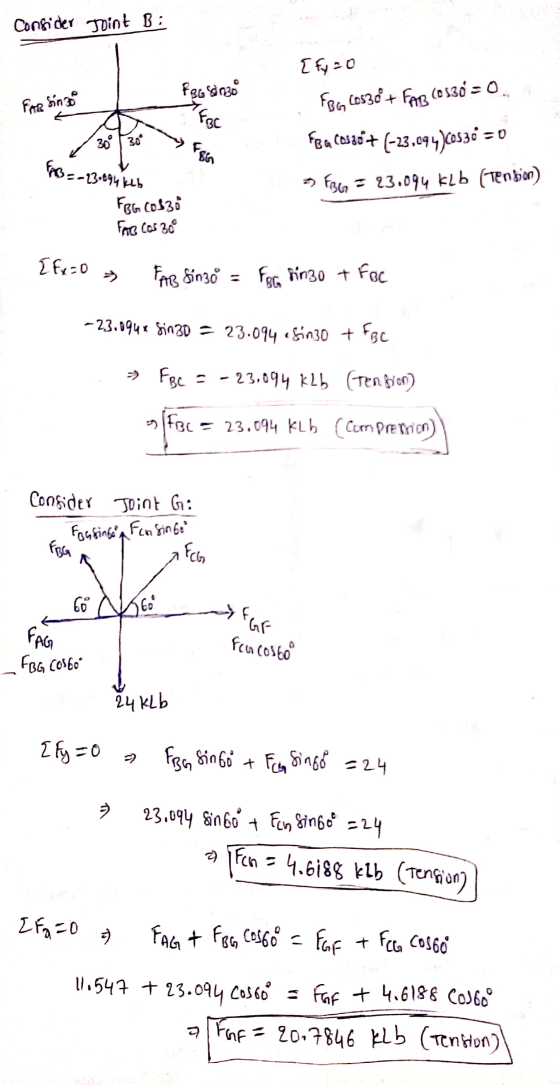

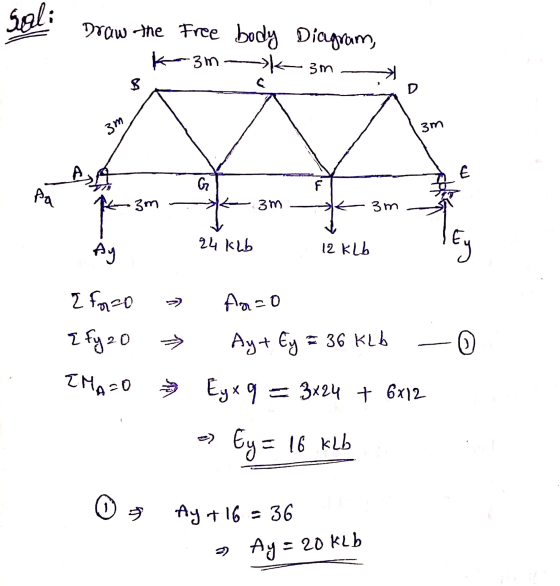

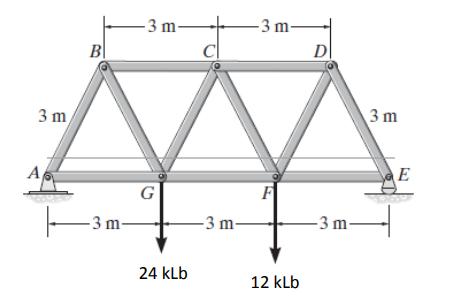

Determine the force on the BC, CG, and GF elements of the Warren
armor.
Indicate if the elements are in tension or in compression.
Homework Answers
Add Answer to:
Determine the force on the BC, CG, and GF elements of the Warren
armor.
Indicate if...
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if...
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if the members are in tension or compression. 3 nm DI BI 3 In nI 3 m o kN 8 kN
Use method of sections to determine the internal force in members BC and GF. Indicate whether...
Use method of sections to determine the internal force in members BC and GF. Indicate whether these member forces are tension or compression. 4 m 4 m 8 m 4 m 6 m 10 kN
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate...
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E - 5OON 7 3м B - А 3m- 1-3mt som 14oon
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate...
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E 50ON Зим T I o e A G 1-3mt sm 3m- 1400N
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI, DE, DF, EF,...
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane...
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane truss. The forces are positive if in tension, negative if in compression. 0.35 m E D 4 m 4 m с 4 m 95 KN 4 m 0.35 m B 4 m Н. 45° А Answers: FG = KN CG = KN BC = KN EF = KN
What are the forces of member BC, FC and FE and indicate whether it is a...
What are the forces of member BC, FC and FE and indicate whether it is a tension or compression. Use the method of section in obtaining the force members. Given AG = 3m, BF = 2m, CE = 1m, GF = 3m I, FE = 3m, ED = 3m 25
Determine the force in members JE and GF of the truss and state if these members are in tension or compression. Also, indicate all zero-force members.
Determine the force in members JE and GF of the truss and state if thesemembers are in tension or compression. Also, indicate all zero-force members.
Find all forces in Members AB AH BH BC CD CF GF (a) Determine the forces...
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
6-B16 Using the Method of Sections, determine the force in HG, BC and GF. 2 kN...
6-B16 Using the Method of Sections, determine the force in HG, BC and GF. 2 kN 1.5 m D 0.8 m A o E F G H 1m 1.5 kN -1 m 2 m 2 m
1. Determine the force in members BC. CG, and FG of the Warren truss. Indicate if the members are in tension or compression. 3 nm DI BI 3 In nI 3 m o kN 8 kN
Use method of sections to determine the internal force in members BC and GF. Indicate whether these member forces are tension or compression. 4 m 4 m 8 m 4 m 6 m 10 kN
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E - 5OON 7 3м B - А 3m- 1-3mt som 14oon
1) Determine the force in members GE, GC and BC of the truss shown below. Indicate whether the members are in tension or compression. E 50ON Зим T I o e A G 1-3mt sm 3m- 1400N
Determine the Force in member AB, AI, BC, BI, CD, CF, CG, CI,
DE, DF, EF, FG, GH, GI, HI And state if the member is in tension or
compression.
Suppose that P1 = 1.5 kip and P2-24 kip . (Figure 1) Figure 1 of 1 3 kip 3 kip 8 ft 4 ft 10 ft 10 ft 10 ft 10 ft
Question 2 Determine the forces in members FG, CG, BC, and EF for the loaded crane truss. The forces are positive if in tension, negative if in compression. 0.35 m E D 4 m 4 m с 4 m 95 KN 4 m 0.35 m B 4 m Н. 45° А Answers: FG = KN CG = KN BC = KN EF = KN
What are the forces of member BC, FC and FE and indicate whether it is a tension or compression. Use the method of section in obtaining the force members. Given AG = 3m, BF = 2m, CE = 1m, GF = 3m I, FE = 3m, ED = 3m 25
Find all forces in Members AB AH BH BC CD CF GF
(a) Determine the forces in members: AB, AH, BH and BC using Method of Joints. (b) Determine the forces in members: CD, CF, and GF using Method of Sections. Н. F 4.5 m 3 m E B DI 2 KN 6 KN 8 KN - 12 m, 4 @ 3 m
6-B16 Using the Method of Sections, determine the force in HG, BC and GF. 2 kN 1.5 m D 0.8 m A o E F G H 1m 1.5 kN -1 m 2 m 2 m
