A 200N rod is connected to a pin at A and a chord at B as...

Question

Question

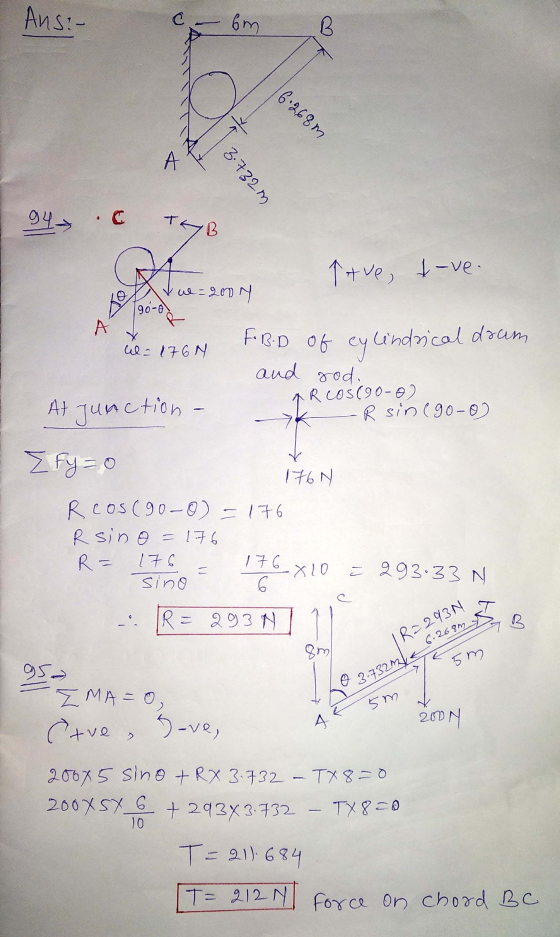

A 200N rod is connected to a pin at A and a chord at B as shown. It holds a cylindrical drum which weighs 176N.

a.) Calculate the force between the rod and the drum

b.) Calculate the force in the chord BC

c.) Calculate the reaction at the pin at A

engineering Civil-Engineering

Answer 1

Answer #1

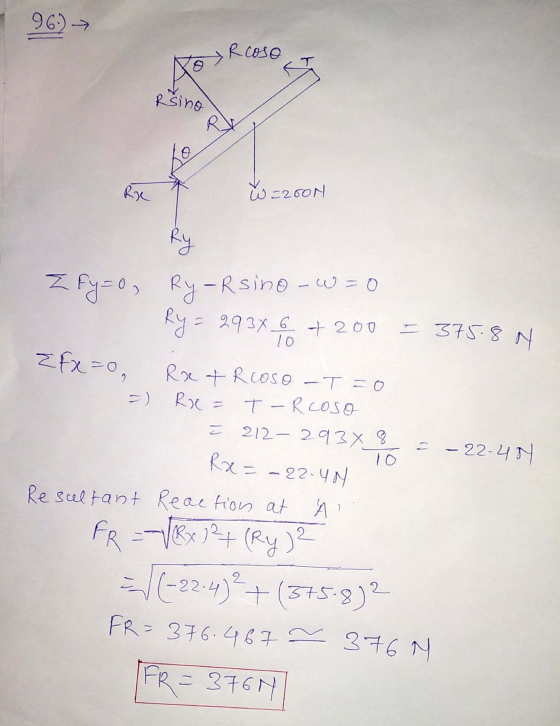

Ko Rsino R. o W=250N FR =-/Rx 1²+ (Ry) 2 96.) → Rcoso Rue Ry I fy=0, Ry -Rsino - W=0 Ry= 293x6 +200 = 375.8 N Rx + Rcoso -T=0
