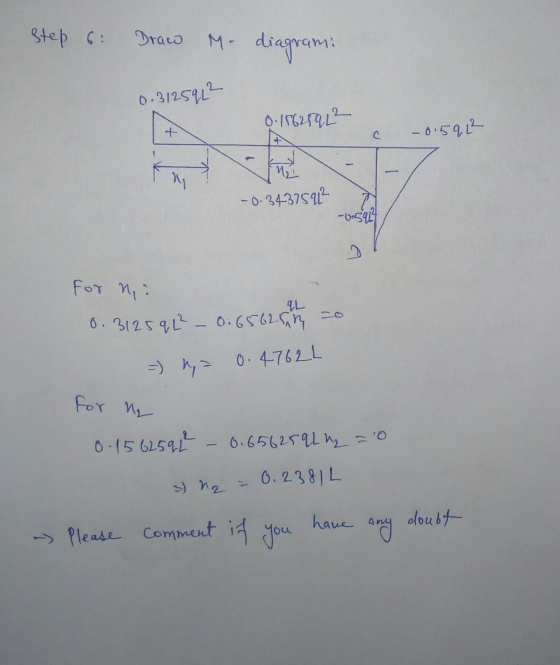

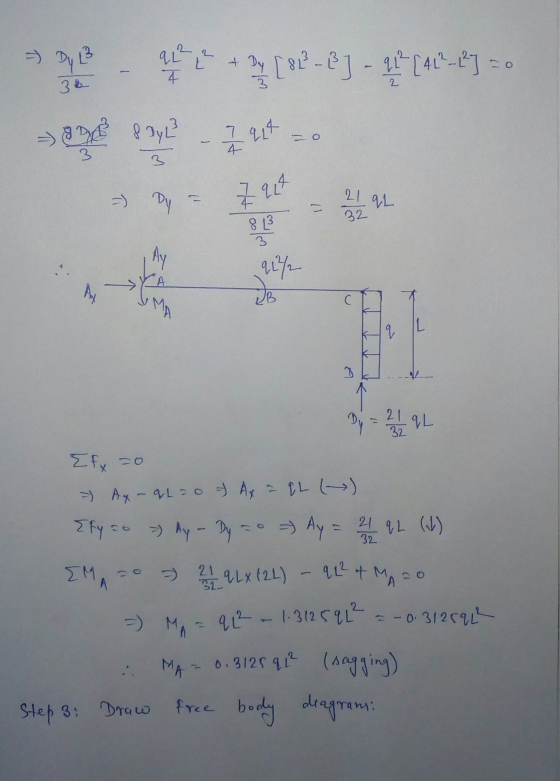

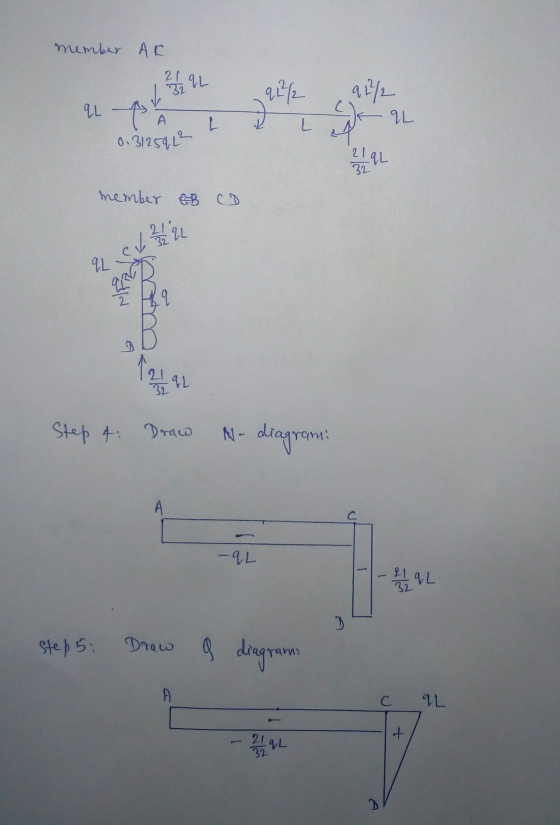

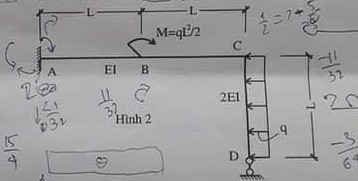

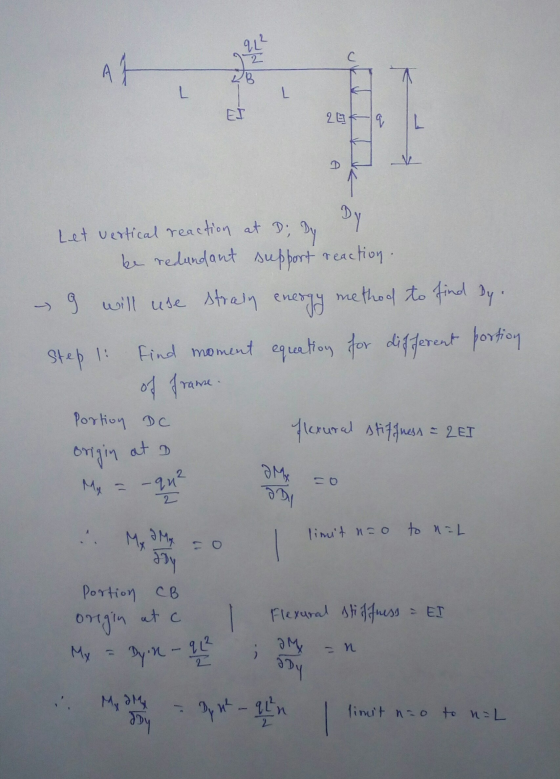

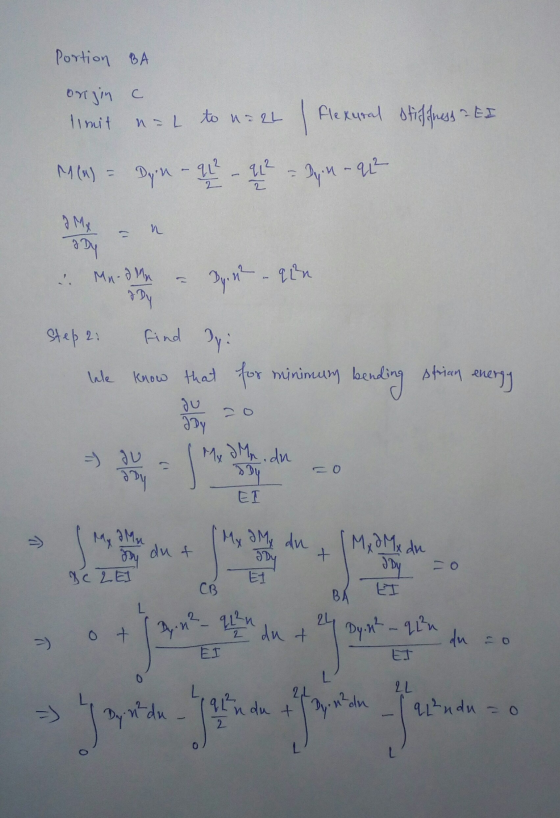

For the flat ABCD system has links, bearing and bending stiffness of the bars as shown in Figure 2, ignoring the effect of shear and vertical forces on the displacement of the system. Determine the reaction force at D, draw internal force diagrams M, Q, N and determine the forced displacement.





For the flat ABCD system has links, bearing and bending stiffness of the bars as shown...
Question 1) (L.0.6.1-4): Using the force method, draw the bending moment, shear force and axial force diagrams for the structure shown in Figure 1. Effects of shear and axial forces on deformation are neglected. qa? B 2a Figure 1. Question 2) (L.0.7.1-4): Using the displacement method, draw the bending moment diagram for the structure shown in Figure 2. Effects of axial and shear forces on deformation are neglected. 2qa? q qa a/2 a/2 a a/2 a/2 f + Figure 2.
Problem 3 (19 points): A simply supported beam ABCD carries a uniformly distributed load, w, and a concentrated load, F, as shown in the figure. All the dimensions are given in the figure, and the weight of the beam is neglected a) Draw the free body diagram for the beam, showing all the applied and reaction forces. Find the reaction forces F=14 kN .6m b) Give the expression for the shear force, V- V(x), and the bending moment M M(x),...
Q2b Using the direct stiffness method, determine for the beam shown: a) the displacements and rotations of the nodes, the shear forces and moments at the nodes b) Subsequently, draw the deflected shape, shear force and bending moment diagrams. 4m rM Take: El 5 X 106 Nm2, F 10 kN and w 4 kN/m.
There are two bearings support each end of a shaft. Bearing at right side has vertical stiffness, ks. Shaft is subjected to a distributed load which intensity is p equal to 4380 N/m and a point P of 1880 N as shown in figure C. the flexural rigidity EI of the shaft is 34.5*103 Nm2 Ks 250 kN/m. Determine: i. The slope and deflection at the ends and midspan of the shaft ii. The moment and shear force at the...
Name: Question 6 (25 Points) For the shown beam below, determine the following: 1) The internal forces at F (mid-point between C & D) 2) Draw the Shear Force and Bending Moment diagrams ID: Sec: (9 Points) (16 Points) 20 N 100 N N/m
Name: Question 6 (25 Points) For the shown beam below, determine the following: 1) The internal forces at F (mid-point between C & D) 2) Draw the Shear Force and Bending Moment diagrams ID: Sec: (9...
Extra Credit) A gear reduction unit uses the countershaft shown in the figure. Gear A receives power from another gear with the transmitted force FA applied at the 20° pressure angle as shown. The power is transmitted through the shaft and delivered through gear B through a transmitted force FB at the pressure angle shown. (a) Determine the force FB, assuming the shaft is running at a constant speed. (b) Find the magnitudes of the bearing reaction forces, assuming the...
A dapped-end bearing connection in a precast concrete beam is shown. reinforcement bars The function of the indicated reinforcement bars is primarily to resist & O (A) bending caused by the eccentricity of the vertical reaction O (B) shear-friction reinforcement (C) confinement to prevent compression failure O (D) diagonal tension cracking emanating from the reentrant corner
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4. Finally, draw the shear force and bending moment diagrams for each element. LetE 30 x 103 ksi, A = 8 in,2 , and 1-800 in.4 for all elements. 20 kip 25 ft 25 ft- 40 ft 20...
Solve all problems using the finite element stiffness method. For the rigid frame shown in Figure P5-4, determine (1) the nodal displacements and rotation at node 4, (2) the reactions, and (3) the forces in each element. Then check equilibrium at node 4 Finally, draw the shear force and bending moment diagrams for each element. Let E 30x 103 ksi, A 8 in2, and I 800 in.4 for all elements. 20 kip 25 ft 25 ft 40 ft Figure P5-4...
Solve in SI units.
A gear reduction unit uses the countershaft shown in the figure.
Gear A receives power from another gear with the transmitted force
FA applied at the 20ᵒ pressure angle as shown. The power is
transmitted through the shaft and delivered through gear B through
a transmitted force FB at the pressure angle shown. a) Determine
the force FB, assuming the shaft is running at a constant speed. b)
Find the magnitudes of the bearing reaction forces,...
