2. The setup for an experiment consists of a curved steel beam with a rectangular cross...
2. The setup for an experiment consists of a curved steel beam with a rectangular cross...

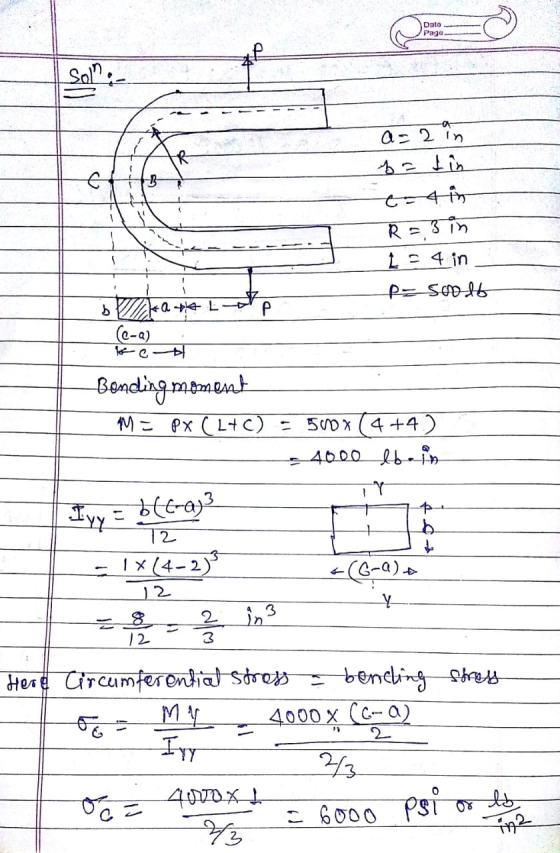

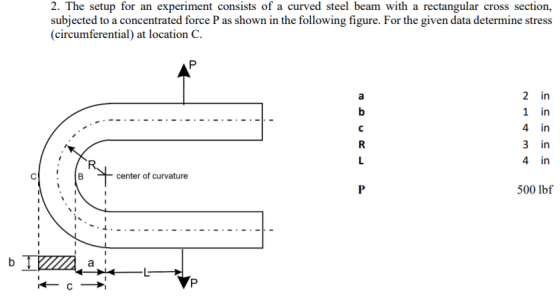

2. The setup for an experiment consists of a curved steel beam with a rectangular cross section, subjected to a concentrated force P as shown in the following figure. For the given data determine stress (circumferential) at location C. P 2 in 1 in b 4 in 3 in 4 in L center of curvature 500 lbf TIZ
The figure shown below is the cross section of a steel rectangular beam. The beam is subjected to transverse loading ap...
The figure shown below is the cross section of a steel
rectangular beam. The beam is subjected to transverse loading
applied in the Y-direction.
Mark the location on the cross section that experiences
maximum normal stress.
FE CIVIL PRACTICE EXAM The figure shown below is the cross section of a steel rectangular beam. The beam is subjected to 64. transverse loading applied in the Y-direction Mark the location on the cross section that experiences maximum normal stress SIDE VIEW CROSS...
A steel beam of rectangular cross section is 50mm wide and 80mm high. Please give the...
A steel beam of rectangular cross section is 50mm wide and
80mm high. Please give the answer of these two questions.
ECH0013 Mechanics of Solids & Structures Exercise Sheet 5: PLASTIC COLLAPSE A steel beam of rectangular cross section is 50 mm wide and 80 mm high. The yield stress is ơr MPa. Find the percentage of the cross-sectional area is occupied by the elastic core, if the beam is subjected to a bending moment of 13 kNm acting about...
The curved steel bar shown in the figure has a rectangular cross section with a radial...
The curved steel bar shown in the figure has a rectangular cross section with a radial height h= 8 mm and a thickness b= 3 mm. The radius of the centroid is R= 40 mm. A force P= 15 N is applied as shown here. Find the vertical deflection at B. Use Castigliano's method for a curved flexural member. Since Rih< 10, do not neglect any of the terms. The vertical deflection at Bis D m m.
Question 3: A steel (E 30x106 psi and v 0.3) cantilever l-beam is subjected to a...
Question 3: A steel (E 30x106 psi and v 0.3) cantilever l-beam is subjected to a distributed load and a concentrated load. The I section is 4-inch-wide and 5-inch-tall, and the flange and web plates are all 0.5-inch-thick, as marked in the figure. a) Draw the moment diagram as a function of x and clearly label the moment values at 1, 2, and 4 ft. (10) b) Find the maximum tensile (normal) stress in the entire beam. (5) c) Find...
A rectangular cross section at a location along a beam in bending is
(a). A rectangular cross section at a location along a beam in bending is acted upon by a bending moment and a shear force. The cross section is \(120 \mathrm{~mm}\) wide, \(300 \mathrm{~mm}\) deep and is orientated such that it is in bending about its major axis of bending. The magnitudes of the bending moment and shear force are \(315 \mathrm{kNm}\) and \(240 \mathrm{kN}\) respectively. Determine the maximum bending and shear stresses on the cross section. Plot the bending and...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
Determine the stress distribution across the beam A rectangular bar with a cross section 2 in....
Determine the stress distribution across the beam
A rectangular bar with a cross section 2 in. by 8 in. is subjected to an axial tensile force of 20 kip an bending moment of 60 kip-in., as shown in Fig. 16.2(a). Determine the stress distribution across theb M 60 kip-in. M- 60 kip-in NA 20 kíp P-20 kip 2 in.
Q6 (12 marks) In the figure below, the steel beam ABC is simply supported at A...
Q6 (12 marks) In the figure below, the steel beam ABC is simply supported at A and C. Its cross-section is the rectangular tube as shown where dimensions are in in. Force F varies such that the magnitude of deflection at the mid-span of the beam is between 0.01" and 0.05". Determine the mean stress and alternating stress developed at the top surface of cross-section B. Given, a = 7", b = 12". A ab — In Simple supports 4X2X1/4...
A steel beam has a rectangular 2. cross section (b mm and h mm) with a...
A steel beam has a rectangular 2. cross section (b mm and h mm) with a length, L m. For steel, E in GPA and p in kg/m3 The beam supported in: Fixed-Free a) List the boundary conditions b) Compute the three lowest temporal frequencies. Lenth, L (m) b (m) h(m) E (GPa) Density, p (kg/m3) 1.50 0.155 0.060 200 7750
A steel beam has a rectangular 2. cross section (b mm and h mm) with a length, L m....
2. The setup for an experiment consists of a curved steel beam with a rectangular cross section, subjected to a concentrated force P as shown in the following figure. For the given data determine stress (circumferential) at location C. P 2 in 1 in b 4 in 3 in 4 in L center of curvature 500 lbf TIZ
The figure shown below is the cross section of a steel
rectangular beam. The beam is subjected to transverse loading
applied in the Y-direction.
Mark the location on the cross section that experiences
maximum normal stress.
FE CIVIL PRACTICE EXAM The figure shown below is the cross section of a steel rectangular beam. The beam is subjected to 64. transverse loading applied in the Y-direction Mark the location on the cross section that experiences maximum normal stress SIDE VIEW CROSS...
A steel beam of rectangular cross section is 50mm wide and
80mm high. Please give the answer of these two questions.
ECH0013 Mechanics of Solids & Structures Exercise Sheet 5: PLASTIC COLLAPSE A steel beam of rectangular cross section is 50 mm wide and 80 mm high. The yield stress is ơr MPa. Find the percentage of the cross-sectional area is occupied by the elastic core, if the beam is subjected to a bending moment of 13 kNm acting about...
The curved steel bar shown in the figure has a rectangular cross section with a radial height h= 8 mm and a thickness b= 3 mm. The radius of the centroid is R= 40 mm. A force P= 15 N is applied as shown here. Find the vertical deflection at B. Use Castigliano's method for a curved flexural member. Since Rih< 10, do not neglect any of the terms. The vertical deflection at Bis D m m.
Question 3: A steel (E 30x106 psi and v 0.3) cantilever l-beam is subjected to a distributed load and a concentrated load. The I section is 4-inch-wide and 5-inch-tall, and the flange and web plates are all 0.5-inch-thick, as marked in the figure. a) Draw the moment diagram as a function of x and clearly label the moment values at 1, 2, and 4 ft. (10) b) Find the maximum tensile (normal) stress in the entire beam. (5) c) Find...
A rectangular beam is subjected to the loadings shown in Figure Q.16(a) has cross section of 100 mm x 300 mm as shown in Figure Q.16(b). An axial load of 5 kN is applied along the centroid of the cross-section at one end of the beam. Compute the normal stress and shear stress at point P through the cut-section of P in the beam. [15 marks] у 10 kN/m P Ž 5 KN --- 00 P k 3 m -...
Determine the stress distribution across the beam
A rectangular bar with a cross section 2 in. by 8 in. is subjected to an axial tensile force of 20 kip an bending moment of 60 kip-in., as shown in Fig. 16.2(a). Determine the stress distribution across theb M 60 kip-in. M- 60 kip-in NA 20 kíp P-20 kip 2 in.
Q6 (12 marks) In the figure below, the steel beam ABC is simply supported at A and C. Its cross-section is the rectangular tube as shown where dimensions are in in. Force F varies such that the magnitude of deflection at the mid-span of the beam is between 0.01" and 0.05". Determine the mean stress and alternating stress developed at the top surface of cross-section B. Given, a = 7", b = 12". A ab — In Simple supports 4X2X1/4...
A steel beam has a rectangular 2. cross section (b mm and h mm) with a length, L m. For steel, E in GPA and p in kg/m3 The beam supported in: Fixed-Free a) List the boundary conditions b) Compute the three lowest temporal frequencies. Lenth, L (m) b (m) h(m) E (GPa) Density, p (kg/m3) 1.50 0.155 0.060 200 7750
A steel beam has a rectangular 2. cross section (b mm and h mm) with a length, L m....
