in an ideal dual combustioncycle, the pressure , volume, and temperature at the beginning of the...

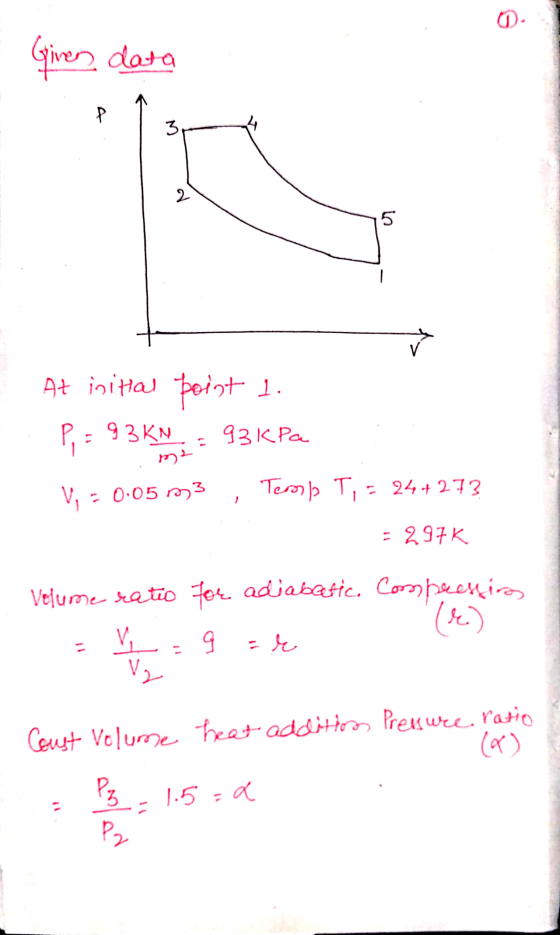

in an ideal dual combustioncycle, the pressure , volume, and temperature at the beginning of the adiabatic compression are 93kn/m2 , 0.05m3, and 24 degrees celcius respectively. The volume ratio of the adiabatic compression is 9:1 . The constant volume heat addition pressure ratio is 1.5:1 and the constant pressure heat addition volume ratio is 2:1
Determine , for this cycle;

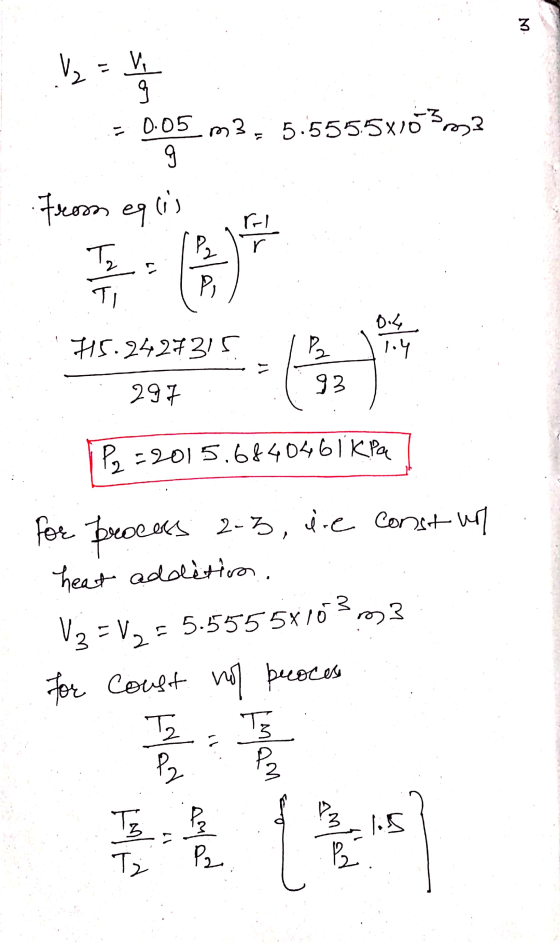

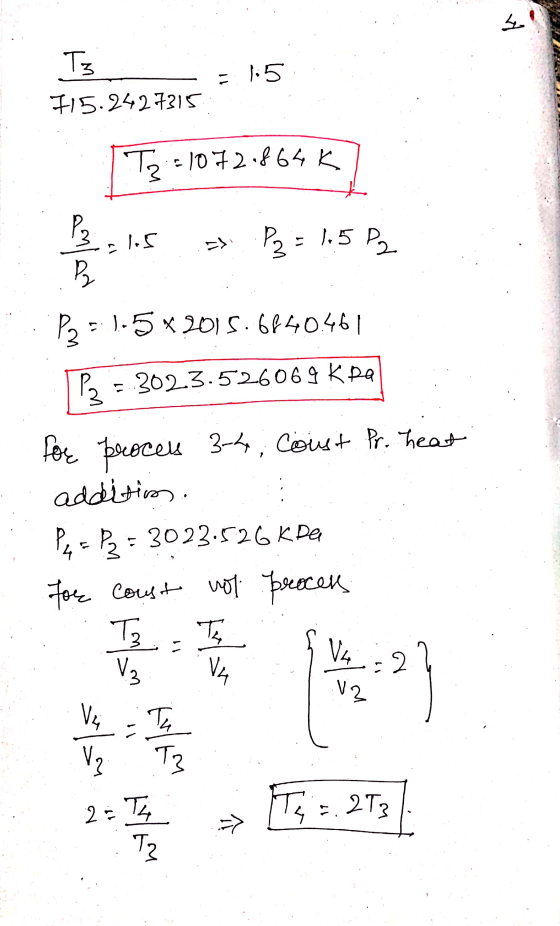

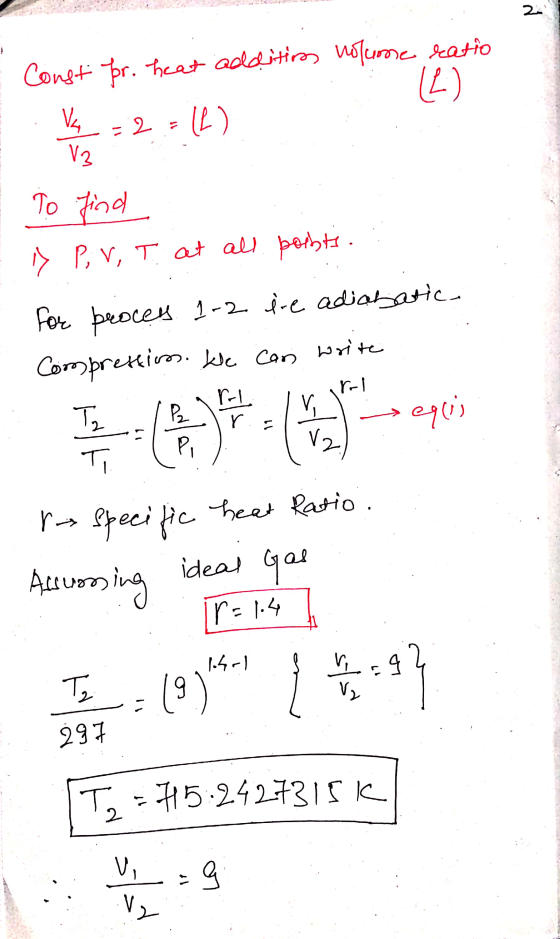

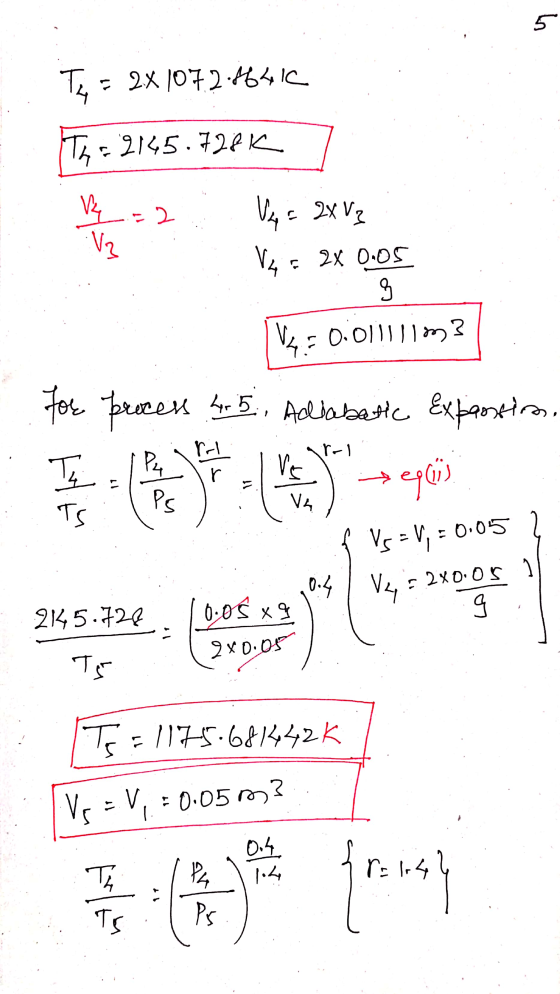

a. The pressure , volume and temperature at the cycle process change points

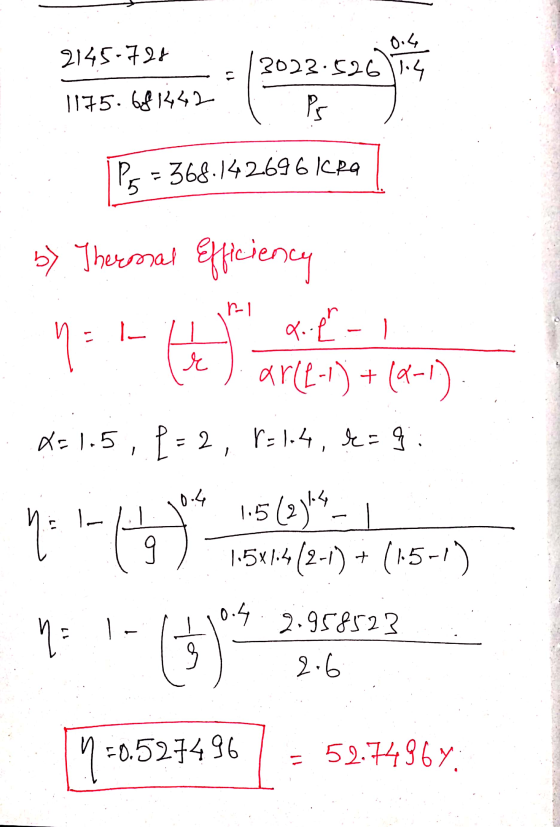

b. The thermal efficiency of the cycle

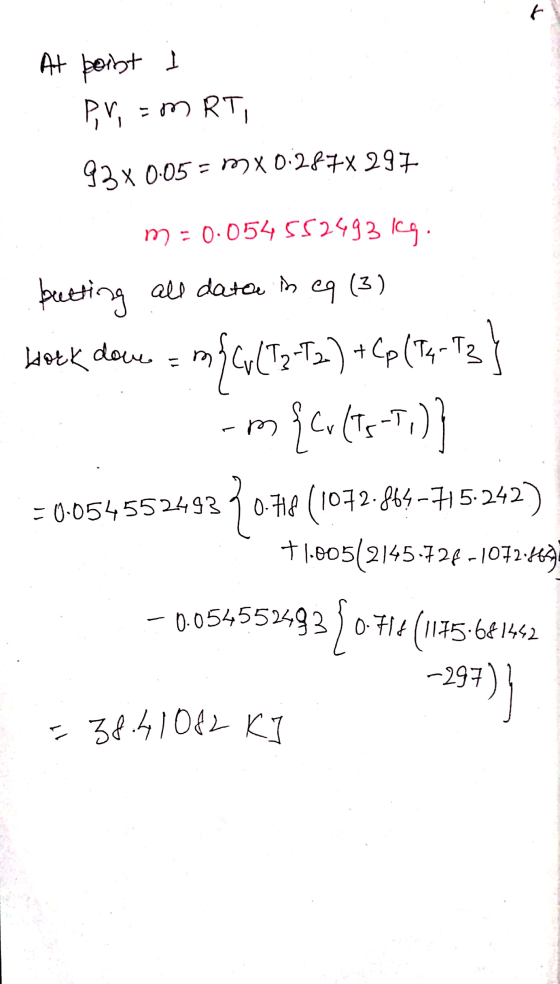

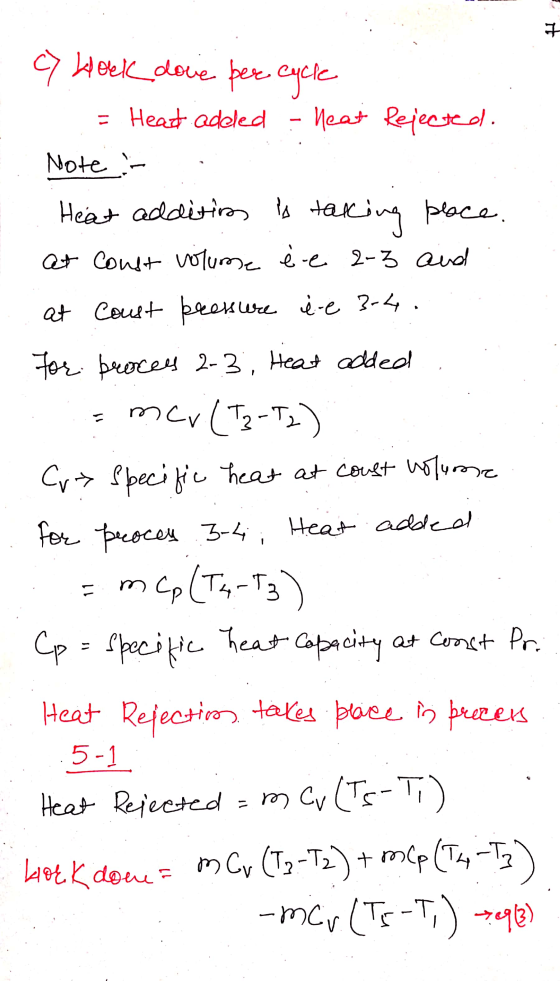

c. The work done per cycle
