USING ( Finite Difference Method for PDEs )
Homework Answers
Add Answer to:
USING ( Finite Difference Method for PDEs )

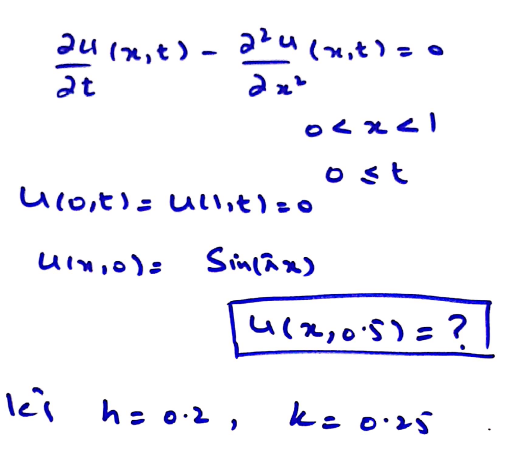

au ca, t) - azu (nt) = 0...
au ca, t) - azu (nt) = 0 at an² ocael ost uncoot)= ullit)=0 linio): Sincan)...
au ca, t) - azu (nt) = 0 at an² ocael ost uncoot)= ullit)=0 linio): Sincan) 418,0:5)=? lei hao.2, k= 0.25
for the following parabolic PDEs heat equation for one variable d2/dx² u(x,t) = d/dt u(x,t) . Where u(0,t)=0 , u(1,t)=0...
for the following parabolic PDEs heat equation for one variable d2/dx² u(x,t) = d/dt u(x,t) . Where u(0,t)=0 , u(1,t)=0 , u(x,0)=sinπx . Complete using crank nicolson method . With h=0.2 , k=0.02
Using the finite difference method to solve 4. d2x dx with the boundary and With the...
Using the finite difference method to solve 4. d2x dx with the boundary and With the boundary conditions x(0)-10 and x(20)-50 and h-5.
4. Higher order method via higher order finite difference formula 4. Higher order method via higher...
4. Higher order method via higher order finite difference
formula
4. Higher order method via higher order finite difference formula 1. Prove the finite difference formula 2. Use this finite difference formula to derive a numerical method to solve the ODE y' = f(y,t), y(0) = 10. 3. What is the local truncation error of this method?
Problem 1 (Section 6.3) Starting with the finite difference expressions for the partial derivatives, re-derive the forward Euler method for the heat equation with an extra nonlinear term: u(0,t)- u(1...
Problem 1 (Section 6.3) Starting with the finite difference expressions for the partial derivatives, re-derive the forward Euler method for the heat equation with an extra nonlinear term: u(0,t)- u(1t)-0 Then, find the solution over three time steps (i.e. find the twelve vawith 3 decimal digits of precision, assuming k = 1, γ=2, M = 0.01, L = 1 and N=5, with initial condition u a table to show your results. It is strongly recommended that you write a short...
Known transport equation: Make a finite difference scheme for the above transport equation using the method:...
Known transport equation:
Make a finite difference scheme for the above transport equation
using the method:
Backward Time Backward Space
u, +du, = 0
Using Newton method, find the value of t that give a maximum value at an interval...
Using Newton method, find the value of t that give a maximum value at an interval of [0 10] for the following function: 2 sin (- y (2) Use initial guess of t = 0.1 with stopping error of &s = 0.01%. Apply centered finite-difference formulas with step size of h 0.01 to calculate the derivatives For all calculation, use at least 5 significant figures for better accuracy.
Using Newton method, find the value of t that give a maximum...
Objective: Solve the wave equation numerically using finite difference methods with both dirichle...
Need help solving it using matlab with for loop
Objective: Solve the wave equation numerically using finite difference methods with both dirichlet and neumann conditions. Consider the wave equation for a string with fixed ends, L=1. lu lu Initial conditions. To make the string behave like a plucked guitar string, use a triangual initial condition. For x less than or equal to 0.5, set u(x, t 0) = 2HX and for x greater than 0.5, use u(x, t = 0)...
Solve the problem using the Finite-Difference Method. use these conditions: L=2m, h1 = 20 and h2 ...
solve the problem using the Finite-Difference Method. use these
conditions: L=2m, h1 = 20 and h2 = 10
A flat plate (k-1 W/m-K, p 2 kg/m3, c 0.7 kJ/kg-K) separates two fluids with different temperatures and convection coefficients. Heat conduction in the plate can be considered one-dimensional. The initial temperature of the plate is uniform and equal to 30 °C. a) Select the problem parameters using the table below. b) Cover the domain with a grid and write the finite...
Answer only Given the advection equation au the truncation error for Leith's method is calculated by approximati...
Answer only
Given the advection equation au the truncation error for Leith's method is calculated by approximating TE = u(xi.tk +1)-4(Xi,t.) + Vdu ax 2 ax2 Using centred finite-differences the second and third terms in this expression will respectively have truncation errors: A. 0((Ax)2) and 0((Ax)2), B. 0((Ax)2 and (At(Ax)2), C. o(Ax) and O((Ax)2), D. 0(Ax) and (t(Ax).
au ca, t) - azu (nt) = 0 at an² ocael ost uncoot)= ullit)=0 linio): Sincan) 418,0:5)=? lei hao.2, k= 0.25
Using the finite difference method to solve 4. d2x dx with the boundary and With the boundary conditions x(0)-10 and x(20)-50 and h-5.
4. Higher order method via higher order finite difference
formula
4. Higher order method via higher order finite difference formula 1. Prove the finite difference formula 2. Use this finite difference formula to derive a numerical method to solve the ODE y' = f(y,t), y(0) = 10. 3. What is the local truncation error of this method?
Problem 1 (Section 6.3) Starting with the finite difference expressions for the partial derivatives, re-derive the forward Euler method for the heat equation with an extra nonlinear term: u(0,t)- u(1t)-0 Then, find the solution over three time steps (i.e. find the twelve vawith 3 decimal digits of precision, assuming k = 1, γ=2, M = 0.01, L = 1 and N=5, with initial condition u a table to show your results. It is strongly recommended that you write a short...
Known transport equation:
Make a finite difference scheme for the above transport equation
using the method:
Backward Time Backward Space
u, +du, = 0
Using Newton method, find the value of t that give a maximum value at an interval of [0 10] for the following function: 2 sin (- y (2) Use initial guess of t = 0.1 with stopping error of &s = 0.01%. Apply centered finite-difference formulas with step size of h 0.01 to calculate the derivatives For all calculation, use at least 5 significant figures for better accuracy.
Using Newton method, find the value of t that give a maximum...
Need help solving it using matlab with for loop
Objective: Solve the wave equation numerically using finite difference methods with both dirichlet and neumann conditions. Consider the wave equation for a string with fixed ends, L=1. lu lu Initial conditions. To make the string behave like a plucked guitar string, use a triangual initial condition. For x less than or equal to 0.5, set u(x, t 0) = 2HX and for x greater than 0.5, use u(x, t = 0)...
solve the problem using the Finite-Difference Method. use these
conditions: L=2m, h1 = 20 and h2 = 10
A flat plate (k-1 W/m-K, p 2 kg/m3, c 0.7 kJ/kg-K) separates two fluids with different temperatures and convection coefficients. Heat conduction in the plate can be considered one-dimensional. The initial temperature of the plate is uniform and equal to 30 °C. a) Select the problem parameters using the table below. b) Cover the domain with a grid and write the finite...
Answer only
Given the advection equation au the truncation error for Leith's method is calculated by approximating TE = u(xi.tk +1)-4(Xi,t.) + Vdu ax 2 ax2 Using centred finite-differences the second and third terms in this expression will respectively have truncation errors: A. 0((Ax)2) and 0((Ax)2), B. 0((Ax)2 and (At(Ax)2), C. o(Ax) and O((Ax)2), D. 0(Ax) and (t(Ax).
