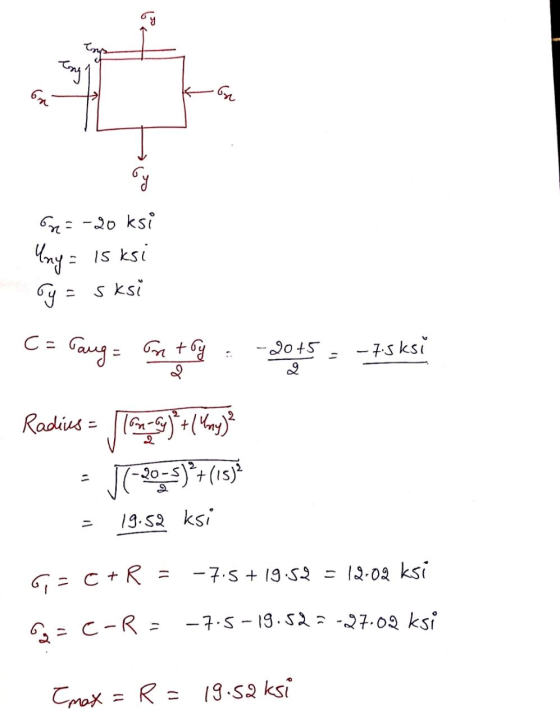

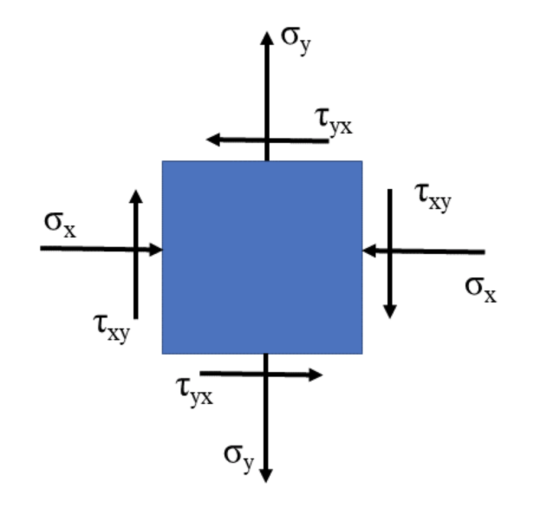

Using Mohr's circle determine for the below differential element:
a) the principal stresses and the plan on which they act. Show the stresses on a properly oriented differential element. Label all stresses.
b) the maximum shear stress and the plan on which they act. Show the stresses on a properly oriented differential element. Label all stresses.
c) the stresses on a differential element 40 degrees clockwise from the original element. Show the stresses on a properly oriented differential element. Label all stresses.
Sigma X = -20 (ksi) Tau XY = 15 (ksi) Sigma Y = 5 (ksi)

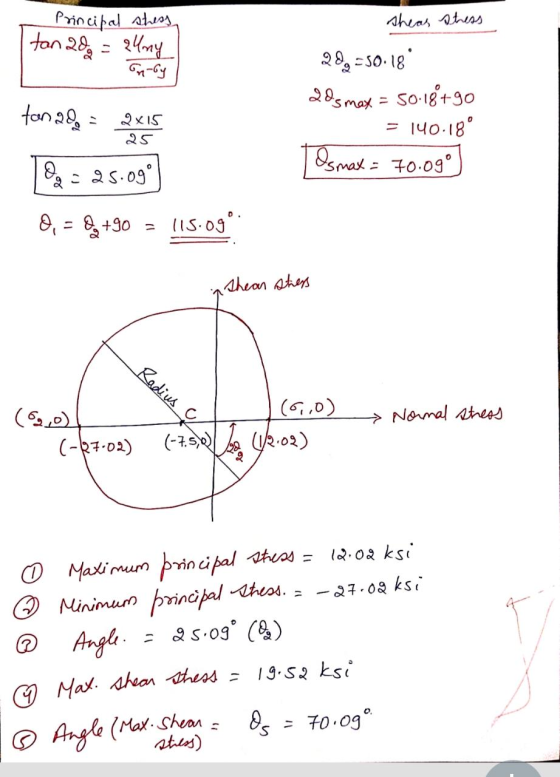

The maximum principal stress on Mohr's circle is _____ (ksi)
The minimum principal stress on Mohr's circle is ______ (ksi)
The angle at which the principal stresses occurs is ______ (degrees- counter clockwise)
The maximum shear stress on Mohr's circle is ______ (ksi)
The angle at which the maximum shear occurs is ______ (degrees - clockwise)
can someone help me with this
mohr's circle problem?
Homework Answers
Add Answer to:
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan...
Q2: (10 points) Consider the Mohr's circle (shown to the right) for an element. The principal...
Q2: (10 points) Consider the Mohr's circle (shown to the right) for an element. The principal stresses or element related to this plot occur at an orientation 40 degrees C.C.W. from the initial stress configuration (original x,y axes) (a) Determine the principal stresses (b) Determine the initial stress configuration (c) Determine the maximum shear stress magnitude and the angle it occurs at relative to the initial stress configuration. 55 ksi -5 ksi
Q5: 10-56 Determine the principal stresses and the maximum shear stress using Mohr's circle. The following...
Q5: 10-56 Determine the principal stresses and the maximum shear stress using Mohr's circle. The following data sets give the stresses on the initial stress element (ox=300 MPa; Oy=-100 MPa; Txy=80MPa CW). Perform the following operations: (a) Draw the complete Mohr's circle, labeling critical points including 01, 02, Tmax, and Oavg. (b) On Mohr's circle, indicate which line represents the x-axis on the initial stress element. (c) On Mohr's circle, indicate the angles from the line representing the x-axis to...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of stress and principal stresses. Draw a rotated element showing directions for the principal stresses and the maximum shear stress. 115 ksi 9 ksi
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on...
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on element B and show these on a sketch of a properly oriented element. b) Determine the principal stresses and show these on a sketch of a properly oriented element. c) Determine the maximum and minimum shear stresses and associated normal stresses and show these on a sketch of a properly oriented element. у Y1 4.0 MPa 2.0 MPa A B 35° 1 1.0 MPa...
2. At a point in a rock layer underground, the vertical and horizontal principal stresses are...
2. At a point in a rock layer underground, the vertical and horizontal principal stresses are 120 kN/m2 and 46 kN/m2 (both in compression), respectively. a) Label the element with the principal stresses b) Draw the Mohr's circle for these conditions. Label the axes. c) On the Mohr's circle, label the major and minor principal stresses, the deviator stress, and the center of the circle. Show all applicable coordinates or values d) What is the maximum shear stress and the...
your Consider the element in plane stress as shown below. () (2 points) Draw corresponding Mohr's...
your Consider the element in plane stress as shown below. () (2 points) Draw corresponding Mohr's circle coordinate axes with appropriate labels, center point A. radius of the circle (1) (3 points) Using the Mohir's circle, find the magnitude of the principal stresses and principal directions. Show them on a sketch of a properly oriented clement (c) (3 points) Using the Mohr's circle, find the magnitude of the maximun shear stress and associated normal stresses Show them on a sketch...
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses...
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses and maximum normal stress. Also determine 'clockwise' rotation necessary to achieve o. ax 10 ksi, ay 24 ksi, txy 6 ksi
please show clear explanation of process thank you 4) Determine (a) the principal stresses and (b)...
please show clear explanation of process thank you
4) Determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress. Specify the orientation of the element in each case. Include a diagram of Mohr's circle indicating the current state of stress and locations of principal and max shear stresses. 12 ksi 20 ksi 10 ksi
Draw and use Mohr's circle to determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress
Draw and use Mohr's circle to determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress. Specify the orientation of the element in each case.
Section A QA1 At a point on the surface of a metal working lathe, stresses, Os...
Section A QA1 At a point on the surface of a metal working lathe, stresses, Os Oy and Twy have been calculated as shown in Fig QA1 below. 110 MPa 20 MPa 10 MPa Fig. QA1 (a) Determine the principal stresses and the maximum shear stresses. [4 marks] (b) Illustrate the principal stresses on a properly oriented principal-stress element [4 marks] (c) Illustrate the maximum in-plane shear stresses on a properly oriented element. [4 marks) (d) Construct a Mohr's Stress...
Q2: (10 points) Consider the Mohr's circle (shown to the right) for an element. The principal stresses or element related to this plot occur at an orientation 40 degrees C.C.W. from the initial stress configuration (original x,y axes) (a) Determine the principal stresses (b) Determine the initial stress configuration (c) Determine the maximum shear stress magnitude and the angle it occurs at relative to the initial stress configuration. 55 ksi -5 ksi
Q5: 10-56 Determine the principal stresses and the maximum shear stress using Mohr's circle. The following data sets give the stresses on the initial stress element (ox=300 MPa; Oy=-100 MPa; Txy=80MPa CW). Perform the following operations: (a) Draw the complete Mohr's circle, labeling critical points including 01, 02, Tmax, and Oavg. (b) On Mohr's circle, indicate which line represents the x-axis on the initial stress element. (c) On Mohr's circle, indicate the angles from the line representing the x-axis to...
Draw and label Mohr's Circle of Stress for the case given. Show the original state of stress and principal stresses. Draw a rotated element showing directions for the principal stresses and the maximum shear stress. 115 ksi 9 ksi
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on element B and show these on a sketch of a properly oriented element. b) Determine the principal stresses and show these on a sketch of a properly oriented element. c) Determine the maximum and minimum shear stresses and associated normal stresses and show these on a sketch of a properly oriented element. у Y1 4.0 MPa 2.0 MPa A B 35° 1 1.0 MPa...
2. At a point in a rock layer underground, the vertical and horizontal principal stresses are 120 kN/m2 and 46 kN/m2 (both in compression), respectively. a) Label the element with the principal stresses b) Draw the Mohr's circle for these conditions. Label the axes. c) On the Mohr's circle, label the major and minor principal stresses, the deviator stress, and the center of the circle. Show all applicable coordinates or values d) What is the maximum shear stress and the...
your Consider the element in plane stress as shown below. () (2 points) Draw corresponding Mohr's circle coordinate axes with appropriate labels, center point A. radius of the circle (1) (3 points) Using the Mohir's circle, find the magnitude of the principal stresses and principal directions. Show them on a sketch of a properly oriented clement (c) (3 points) Using the Mohr's circle, find the magnitude of the maximun shear stress and associated normal stresses Show them on a sketch...
Problem 3 For the following stress state, draw a Mohr's circle diagram, find the principal stresses and maximum normal stress. Also determine 'clockwise' rotation necessary to achieve o. ax 10 ksi, ay 24 ksi, txy 6 ksi
please show clear explanation of process thank you
4) Determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress. Specify the orientation of the element in each case. Include a diagram of Mohr's circle indicating the current state of stress and locations of principal and max shear stresses. 12 ksi 20 ksi 10 ksi
Section A QA1 At a point on the surface of a metal working lathe, stresses, Os Oy and Twy have been calculated as shown in Fig QA1 below. 110 MPa 20 MPa 10 MPa Fig. QA1 (a) Determine the principal stresses and the maximum shear stresses. [4 marks] (b) Illustrate the principal stresses on a properly oriented principal-stress element [4 marks] (c) Illustrate the maximum in-plane shear stresses on a properly oriented element. [4 marks) (d) Construct a Mohr's Stress...
