Homework Answers

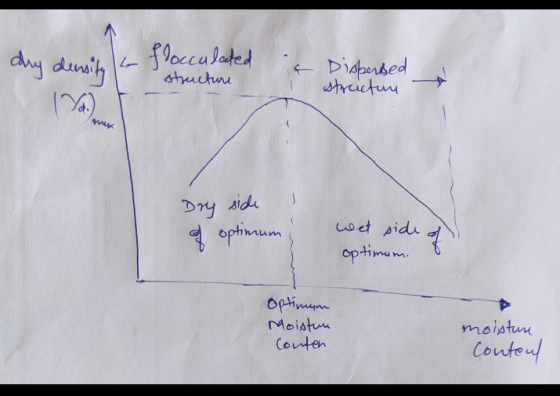

When the soil is dry then there is no moisture content in it and it have dry density.
As we are adding moisture in it then there is a compaction and a readjustment of soil particles and density increase due to achieving more compact stage. As we keep on adding moisture then there is a stage when the water particles is going to replace the soil particles then there will be a decrease in density of soil because the specific gravity of soil particle is far greater than water particles.
Now we can understand that there is moisture content at which density is maximum i.e called optimum moisture content.
If we go more than this moisture content then there will be decrease in density.
Hope you understand.
Thank you
