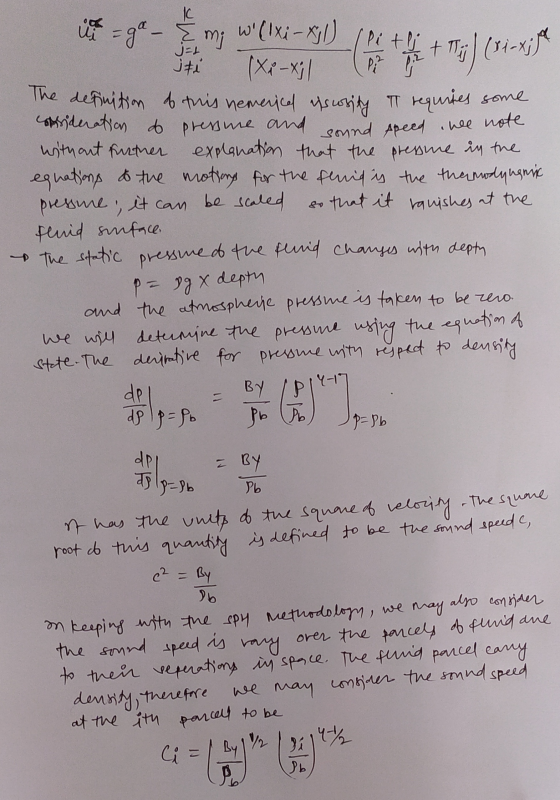

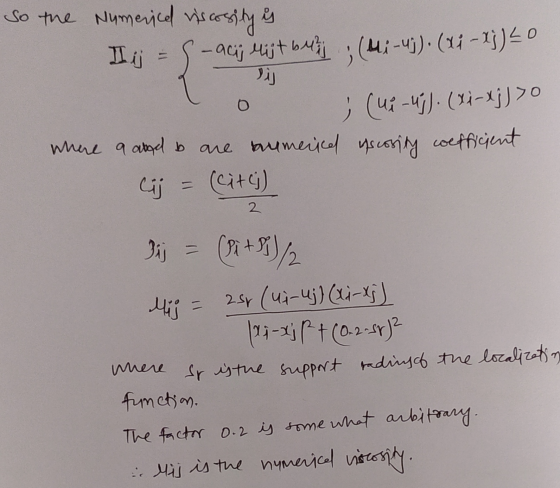

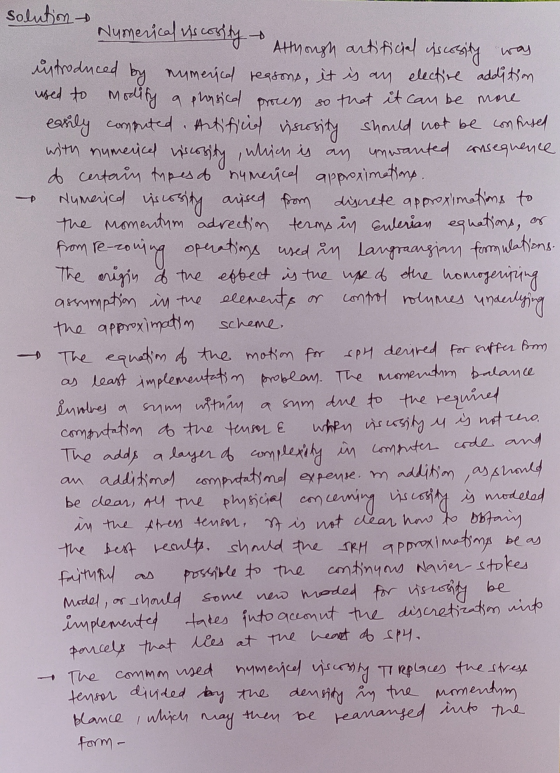

Derivation of Numerical Viscosity include all the steps correctly. (From- Computational Fluid Dynamics)
Derivation of Numerical Viscosity include all the steps correctly.
(From- Computational Fluid Dynamics)
Homework Answers
Add Answer to:
Derivation of Numerical Viscosity include all the steps
correctly.
(From- Computational Fluid Dynamics)
