A6. A unity feedback system has Open loop Transfer system s(s+1). What is its Closed loop...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

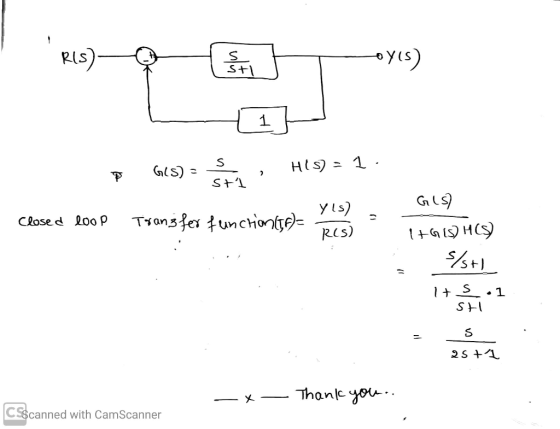

RIS) S S+ oyis) 1 Gls) = , H19) = 1 Closed loop Transfer functione yis) Ris) GLS) IGS HC $15+) Its .1 SH s 25+1 Thank you.. -

Answer 2

Similar Homework Help Questions

A5. A unity feedback system has Open loop Transfer system (s+1). What is its Closed loop...

A5. A unity feedback system has Open loop Transfer system (s+1). What is its Closed loop Transfer function? (5 marks)
A unity gain negative feedback system has an open-loop transfer function given by 4. s) =...

A unity gain negative feedback system has an open-loop transfer function given by 4. s) = s(1 + 10s)(1 + 10s)? Draw a Bode diagram for this system and determine the loop gain K required for a phase margin of 20 deg. What is the gain margin? 5. We are given the closed-loop transfer function 10(s + 1) T(s) = 82+98+10 for a "unity feedback" system and asked to find the open-loop transfer function, generate a log-magnitude-phase plot for both...
1. A unity feedback system has open-loop transfer function given by an 100 G(s)s2)(s +4) a....

1. A unity feedback system has open-loop transfer function given by an 100 G(s)s2)(s +4) a. Use analytical techniques (i.e. without using any plots) to estimate the closed-loop: i. Resonant frequency, w (8 marks) ii. Resonance peak, Mp (in decibels) (2 marks) i. Phase at w = 3rad/s (2 marks) b. Obtain a table for the response of the open-loop transfer function for a set S of frequency values, where S {1.5,3,5,7, 10, 15, 20} rad/s (8 marks) Hence draw...

please solve If a system has the open-loop transfer function G(s) s(s+25n) with unity feedback, then the closed-loop tr...

please solve If a system has the open-loop transfer function G(s) s(s+25n) with unity feedback, then the closed-loop transfer function is given b T(s) s2+20ns+wf Verify the values of the PM shown in Fig. 6.36 for = 0.1,0.4, and 0.7. Figure 6.36 Damping ratio versus 1.0 0.8 PM 2 0.6 0,4 0.2 0 0° 10° 20° 30° 40° 50 60° 70° 80° Phase margin Damping ratio, If a system has the open-loop transfer function G(s) s(s+25n) with unity feedback, then...
1. A unity feedback system has open-loop transfer function given by an 100 G(s)s2)(s +4) a....

1. A unity feedback system has open-loop transfer function given by an 100 G(s)s2)(s +4) a. Use analytical techniques (i.e. without using any plots) to estimate the closed-loop: i. Resonant frequency, w (8 marks) ii. Resonance peak, Mp (in decibels) (2 marks) i. Phase at w = 3rad/s (2 marks) b. Obtain a table for the response of the open-loop transfer function for a set S of frequency values, where S {1.5,3,5,7, 10, 15, 20} rad/s (8 marks) Hence draw...
4. The open loop transfer function of a unity feedback control system is s 5 Showing...

4. The open loop transfer function of a unity feedback control system is s 5 Showing all calculations, construct the root loci of the characteristic equation of the closed loop system for K20, with (a) n-1 (c) n=5 n-

PD & PID controller design Consider a unity feedback system with open loop transfer function, G(s)...

PD & PID controller design Consider a unity feedback system with open loop transfer function, G(s) = 20/s(s+2)(8+4). Design a PD controller so that the closed loop has a damping ratio of 0.8 and natural frequency of oscillation as 2 rad/sec. b) 100 Consider a unity feedback system with open loop transfer function, aus. Design a PID controller, so that the phase margin of (S-1) (s + 2) (s+10) the system is 45° at a frequency of 4 rad/scc and...
please help to solve . Thank you A4. What is time response of the control system?...

please help to solve . Thank you A4. What is time response of the control system? (around 50 words) (5 marks) A5. A unity feedback system has Open loop Transfer system (s+1). What is its Closed loop Transfer function? (5 marks) A6. A unity feedback system has Open loop Transfer system s/(s+1). What is its Closed loop Transfer function? (5 marks)
2. A unity feedback system has the following open-loop transfer function -0.5s + 0.5 G(s)i a)...

2. A unity feedback system has the following open-loop transfer function -0.5s + 0.5 G(s)i a) Obtain the Nyquist plot and analyze the stability of the closed loop system b) Compute the stability margins from the Nyquist plot.

1. Given a unity feedback system with the open-loop transfer function s(0.5s +1) .design a lead c...

1. Given a unity feedback system with the open-loop transfer function s(0.5s +1) .design a lead compensator ,0 〈 α 〈 1, such that the desired closed-loop poles at -2+2j following steps: J, by completing the (a) Find the angle deficiency from the compensator, (b)Find the zero and poles of the compensator (c) Find constant gain Kc. 1. Given a unity feedback system with the open-loop transfer function s(0.5s +1) .design a lead compensator ,0 〈 α 〈 1, such...
