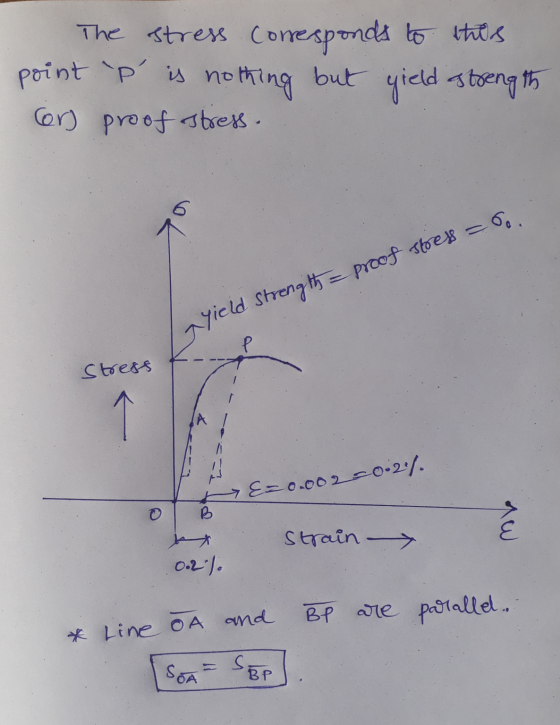

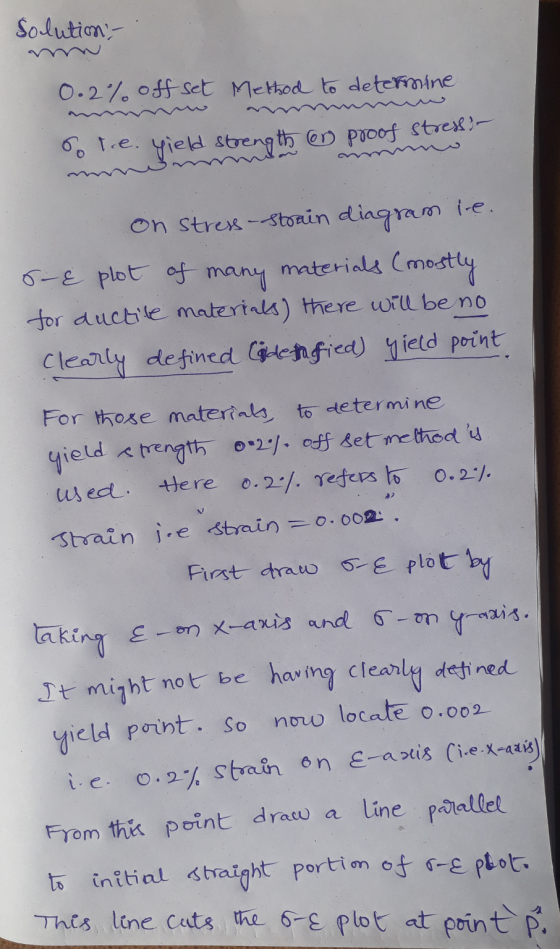

Prob 5 a. On a tension test o vs e plot, show how to determine o,...
b. On a tension test o vs ε plot, draw and label both “perfectly plastic" and...
b. On a tension test o vs ε plot, draw and label both “perfectly plastic" and "strain hardening plastic” behavior for o > 0. Which case is assumed in structural design, which is used in cold forming of ducts, corrugated metal sheets, reinforcing bars, and seamless tube? c. What document does a fabricator submit to show it is using the correct material? What sketches of Prob“b” components are submitted to show that contract plans are properly interpreted?
Problem 1: A tension test was performed on a steel specimen having an original diameter of...
Problem 1: A tension test was performed on a steel specimen having an original diameter of 0.50 in. and gage length of 2.00 in. The final diameter is de .38 in. The data is listed in the table. 1) Plot the stress-strain diagram on engineering paper, so you can calculate the area easily; 2) Determine approximately the modulus of elasticity; 3) Find the yield stress by 0.2% offset method; 4) Calculate approximately the modulus of resilience; 5) Determine approximately the...
Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1...
Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1 5 kN/m Solve using Stiffness method and show each matrix and final matrix
Level Estim Prob Hypoth Prob 0.60000 15 <40 0.40000 42 0.60000 > 40 0.40000 z Test...
Level Estim Prob Hypoth Prob 0.60000 15 <40 0.40000 42 0.60000 > 40 0.40000 z Test Prob z Test Statistic -2.8868 0.0039 Frequencies Method: Fix hypothesized values, rescale o Level Count Prob Test Probabilities <40 20 0.40000 >40 Total N Missingo 2 Levels 30 0,60000 50 1.00000 Level Estim Prob Hypoth Prob <40 0.40000 0.30000 >40 0.60000 0.70000 z Test Prob z Test Statistic 1.5430 0.1228 Test Probabilities Method: Fix hypothesized values, rescale Level Estim Prob Hypoth Prob 0,50000 <40...
need help with question# 5 Working problem! Show all e putting down the result even if...
need help with question# 5
Working problem! Show all e putting down the result even if it is right! The diagram below shows a wavelength squared (m) vs tension (N) plot for a stressed string that is found from a similar setup of lab #9: Standing wave in a string y 0.6117x+0.009 R' = 0.9966 2 2.5 0.5 1 2. Complete the plot above by putting correct axes titles with proper units. (2) 3. What is the slope of this...
manifactoring processes 1) Sketch Engineering stress vs. Engineering strain curve and True stress vs. true strain...
manifactoring processes 1) Sketch Engineering stress vs. Engineering strain curve and True stress vs. true strain curve from one uniaxial tension test for an engineering metals that shows power law strain hardening (e.g. aluminum or steel), within the same plot, and identify, from the curves, the material property parameters of: Yield strength (0.2% offset) Uniform engineering strain ultimate tensile strength (eng.) true stress and true strain at the onset of necking K and n from power-law fitting (the range of...
Human femur bone was subjected to a uniaxial tension test. As a result of a series...
Human femur bone was subjected to a uniaxial tension test. As a result of a series of experiments, the stress-strain curve shown in Fig. 13.42 was obtained. Based on the graph in Fig. 13.42, determine the following parameters: Elastic modulus, E. Apparent yield strength, sigma _y (use the offset method). Ultimate strength. sigma _u. Strain, epsilon _1, corresponding to yield stress. Strain, epsilon _2, corresponding to ultimate stress. Strain energy when stress is at the proportionality limit.
*5-16. Determine the tension in the cable and the horizontal and vertical components of reaction of...
*5-16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb. 2 5ft -5ft Prob. 5-16
PLEASE ANSWER BOTH AND SHOW ALL WORK 2. The diagram next page shows a wavelength squared (m2) vs tension (N) plot for a stressed string ; similar to what you have done in lab 9. 1.4 1.2 y:0.5323x+...
PLEASE ANSWER BOTH AND SHOW ALL WORK
2. The diagram next page shows a wavelength squared (m2) vs tension (N) plot for a stressed string ; similar to what you have done in lab 9. 1.4 1.2 y:0.5323x+0.009 R2 = 0.9966 0.8 0.6 0.4 0.2 0 0.5 1.5 2.5 1) Complete the diagram above by putting correct axes titles with proper units. (2) Il) If the string has a mass of 2.88 grams per 700 cm, what is the frequency...
e motion of a particle is defined by vs 50 16t and y 100 4t2. Plot...
e motion of a particle is defined by vs 50 16t and y 100 4t2. Plot the path of the particle and find its velocity at t-5s. The title of the plot should display the max x displacement and the speed of the particle. Consider the timeframe of O to 5 seconds. Also, save the position (x and y) and velocity (vx and vy) data to a data file. 42 10203040506070” x (m)
b. On a tension test o vs ε plot, draw and label both “perfectly plastic" and "strain hardening plastic” behavior for o > 0. Which case is assumed in structural design, which is used in cold forming of ducts, corrugated metal sheets, reinforcing bars, and seamless tube? c. What document does a fabricator submit to show it is using the correct material? What sketches of Prob“b” components are submitted to show that contract plans are properly interpreted?
Problem 1: A tension test was performed on a steel specimen having an original diameter of 0.50 in. and gage length of 2.00 in. The final diameter is de .38 in. The data is listed in the table. 1) Plot the stress-strain diagram on engineering paper, so you can calculate the area easily; 2) Determine approximately the modulus of elasticity; 3) Find the yield stress by 0.2% offset method; 4) Calculate approximately the modulus of resilience; 5) Determine approximately the...
Determine the reactions at the supports. Assume O is a roller. El is constant Prob. 15-1 5 kN/m Solve using Stiffness method and show each matrix and final matrix
Level Estim Prob Hypoth Prob 0.60000 15 <40 0.40000 42 0.60000 > 40 0.40000 z Test Prob z Test Statistic -2.8868 0.0039 Frequencies Method: Fix hypothesized values, rescale o Level Count Prob Test Probabilities <40 20 0.40000 >40 Total N Missingo 2 Levels 30 0,60000 50 1.00000 Level Estim Prob Hypoth Prob <40 0.40000 0.30000 >40 0.60000 0.70000 z Test Prob z Test Statistic 1.5430 0.1228 Test Probabilities Method: Fix hypothesized values, rescale Level Estim Prob Hypoth Prob 0,50000 <40...
need help with question# 5
Working problem! Show all e putting down the result even if it is right! The diagram below shows a wavelength squared (m) vs tension (N) plot for a stressed string that is found from a similar setup of lab #9: Standing wave in a string y 0.6117x+0.009 R' = 0.9966 2 2.5 0.5 1 2. Complete the plot above by putting correct axes titles with proper units. (2) 3. What is the slope of this...
Human femur bone was subjected to a uniaxial tension test. As a result of a series of experiments, the stress-strain curve shown in Fig. 13.42 was obtained. Based on the graph in Fig. 13.42, determine the following parameters: Elastic modulus, E. Apparent yield strength, sigma _y (use the offset method). Ultimate strength. sigma _u. Strain, epsilon _1, corresponding to yield stress. Strain, epsilon _2, corresponding to ultimate stress. Strain energy when stress is at the proportionality limit.
*5-16. Determine the tension in the cable and the horizontal and vertical components of reaction of the pin A. The pulley at D is frictionless and the cylinder weighs 80 lb. 2 5ft -5ft Prob. 5-16
PLEASE ANSWER BOTH AND SHOW ALL WORK
2. The diagram next page shows a wavelength squared (m2) vs tension (N) plot for a stressed string ; similar to what you have done in lab 9. 1.4 1.2 y:0.5323x+0.009 R2 = 0.9966 0.8 0.6 0.4 0.2 0 0.5 1.5 2.5 1) Complete the diagram above by putting correct axes titles with proper units. (2) Il) If the string has a mass of 2.88 grams per 700 cm, what is the frequency...
e motion of a particle is defined by vs 50 16t and y 100 4t2. Plot the path of the particle and find its velocity at t-5s. The title of the plot should display the max x displacement and the speed of the particle. Consider the timeframe of O to 5 seconds. Also, save the position (x and y) and velocity (vx and vy) data to a data file. 42 10203040506070” x (m)
