K8 ft * 4 ft PROBLEM 4 Determine the support reactions and the force in member...
—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member...

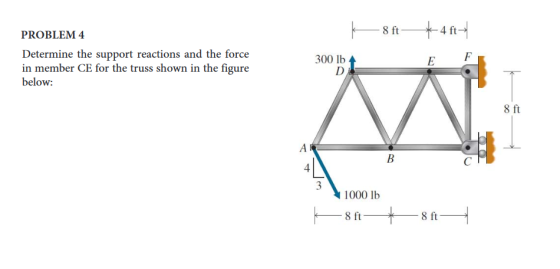

—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B 3 1000 lb 8 ft- 8 ft
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member...
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A B 4 3 1000 lb 8 ft * 8 ft
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for...
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft А B 1000 lb 8 ft + 8 ft
-8 ft *4ft-4 PROBLEM 4 Determine the support reactions and the force in member CE for...
-8 ft *4ft-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A 3 1000 lb 8 ft 8 ft
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss...
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft B 1000 lb 8f- -8 ft-
K 8t 444 PROBLEM 4 Determine the support reactions and the force in member CE for...
K 8t 444 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft ΑΙ B 3 1000 lb 8f- -8ft

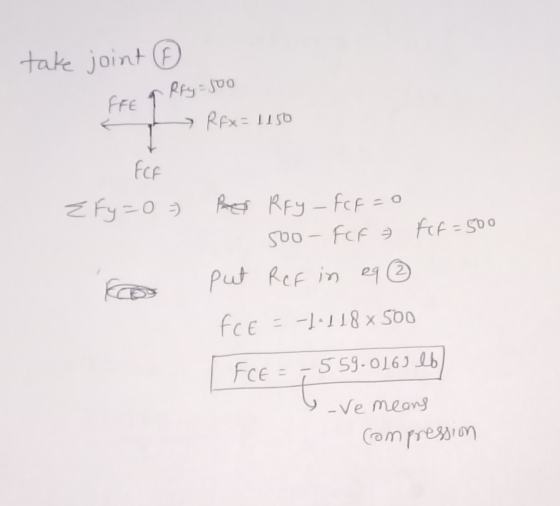

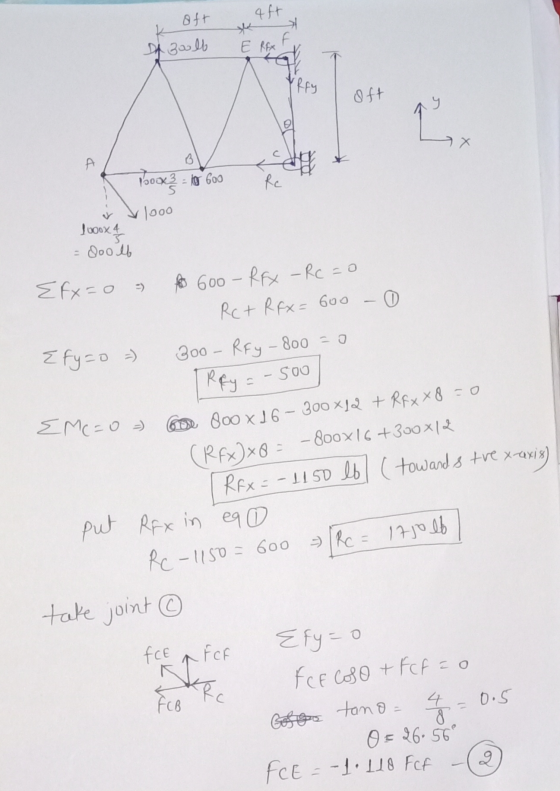

Determine the support reactions and the force in member CE for the truss : 8 ft...
Determine the support reactions and the force in member CE for
the truss :
8 ft *4fty 300 lb D E F 8 ft A B 3 1000 lb 8 ft * 8 ft
6.10 reactions and all internal forces 3m 6.9 and 6.10 Determine the force in each member...
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] l...
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
Determine the force in each member of the Gambrel roof truss shown if load P =...
Determine the force in each member of the Gambrel roof truss shown if load P = 720 lb. (Round the final answers to their nearest whole number.) 600 lb 600 lb 300lb B 2 ft 4 in. 300 lb 8 ft S ft 8 ft S ft lb. (Compression) lb. (Tension) The force in member AB (FAB) is The force in member AC (FAc) is The force in member BC (FBc) is 0 The force in member CE (FCE) is...
—8 ft * 4 fit PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E F 8 ft A B 3 1000 lb 8 ft- 8 ft
8 ft PROBLEM 4 *4ftY E F Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A B 4 3 1000 lb 8 ft * 8 ft
8 ft #417 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft А B 1000 lb 8 ft + 8 ft
-8 ft *4ft-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D 8 ft A 3 1000 lb 8 ft 8 ft
8f-4f-4 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft B 1000 lb 8f- -8 ft-
K 8t 444 PROBLEM 4 Determine the support reactions and the force in member CE for the truss shown in the figure below: 300 lb D E 8 ft ΑΙ B 3 1000 lb 8f- -8ft
Determine the support reactions and the force in member CE for
the truss :
8 ft *4fty 300 lb D E F 8 ft A B 3 1000 lb 8 ft * 8 ft
6.10
reactions and all internal forces
3m 6.9 and 6.10 Determine the force in each member of the truss shown. State whether each member is in tension (1) or compression (C). A 12.5 kN 12.5 kN 12.5 kN 12.5 KN 8 KN Fig. P6.9 2.5 m Fig. P6.10 6.11 Determine the force in each member of the Gambrel roof truss shown. State whether each member is in tension (T) or compression (C). 600 lb 600 lb 600 lb 2 ft...
If the member EF was removed and the support at F was replaced as shown below, determine the support forces at E and F 500 lb 500 lb 12 ft 12 ft12 ft 12 ft 15 ft Support force at E, (Ex, Ey). 1 pt] lb (Sign: negative if leftwards or downwards) Support force at F, (Fx, Fy). [1 pt] )lb (Sign: negative if leftwards or downwards)
If the member EF was removed and the support at F was replaced...
Determine the force in each member of the Gambrel roof truss shown if load P = 720 lb. (Round the final answers to their nearest whole number.) 600 lb 600 lb 300lb B 2 ft 4 in. 300 lb 8 ft S ft 8 ft S ft lb. (Compression) lb. (Tension) The force in member AB (FAB) is The force in member AC (FAc) is The force in member BC (FBc) is 0 The force in member CE (FCE) is...
