Question

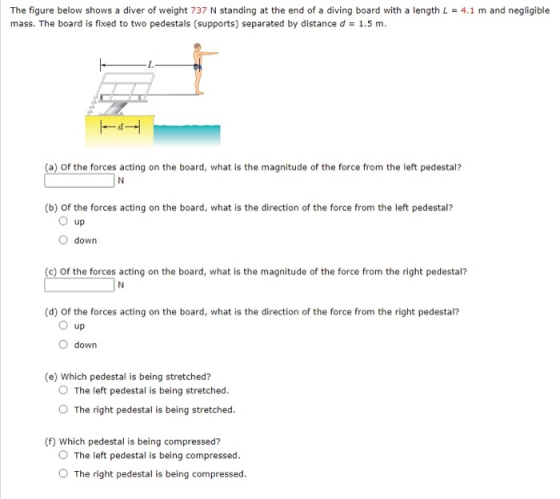

The figure below shows a diver of weight 737 N standing at the end of a diving board with a length L = 4.1 m and negligible mass. The board is fixed to two pedestals (supports separated by distance d = 1.5 m. kind (a) of the forces acting on the board, what is the magnitude of the force from the left pedestal? N (b) of the forces acting on the board, what is the direction of the force from the left pedestal? up down (c) of the forces acting on the board, what is the magnitude of the force from the right pedestal? N (d) of the forces acting on the board, what is the direction of the force from the right pedestal? up down (e) Which pedestal is being stretched? The left pedestal is being stretched. The right pedestal is being stretched. (f) Which pedestal is being compressed? The left pedestal is being compressed. The right pedestal is being compressed.

Answer 1

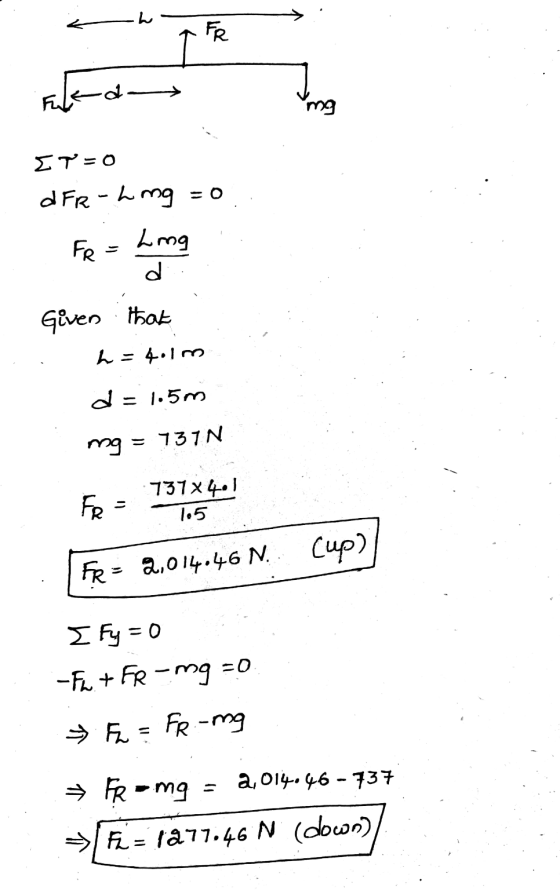

Fe img ΣΤ' = 0 dFR-L ng =0 FR = Ling Given that k= 4.10 de = 1.5m mg = 737N FR = 737x4.1 185 Cup) FR = 2,014.46 N. Fy = 0 -FutFramg =0 F = FR-ng → Fromg = a, 014046 - 737 > F=1277.46 N (down)

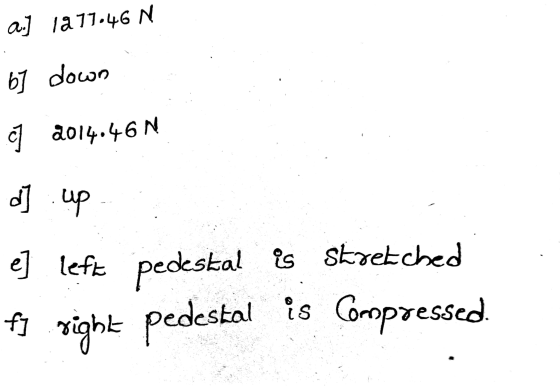

a.) la 77.46 N 67 down C2014.46N d] up e] left pedestal is stretched fy right pedestal is Compressed
