![2.[10]For the function, f(x), given on the interval 0 < x <L (a)[4] Sketch the graphs of the even extension g(x) and odd exte](http://img.homeworklib.com/questions/77025e90-ee40-11ea-92c9-c3828d35c94e.png?x-oss-process=image/resize,w_560)
Homework Answers
Add Answer to:
2.[10]For the function, f(x), given on the interval 0 < x <L (a)[4] Sketch the graphs...
2. [10]For the function, f(x), given on the interval 0 <x<L (a)[4] Sketch the graphs of...

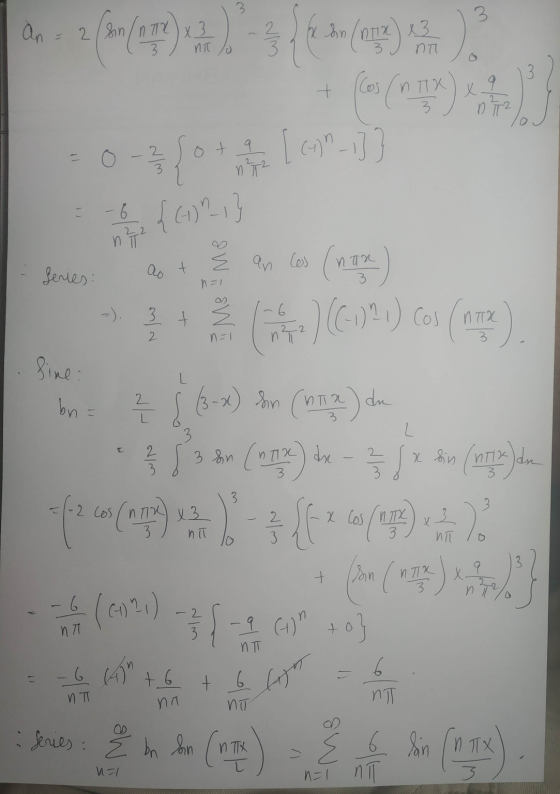

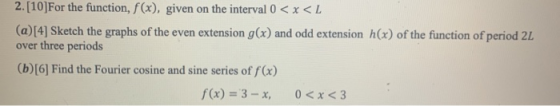

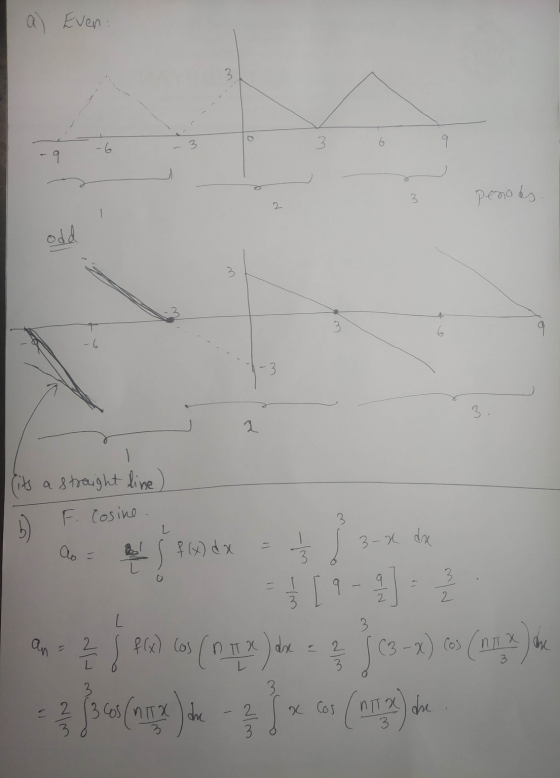

2. [10]For the function, f(x), given on the interval 0 <x<L (a)[4] Sketch the graphs of the even extension g(x) and odd extension h(x) of the function of period 2L over three periods (b)[6] Find the Fourier cosine and sine series of f(x) f(x) = 3 - x, 0<x<3
1. [8] Given x + 2, -2 < x < 0 f(x) = 12 – 2x,...
1. [8] Given x + 2, -2 < x < 0 f(x) = 12 – 2x, 0<x< 2, f(x + 4) = f(x) (a)[3] Sketch the graph of this function over three periods. Examine the convergence at any discontinuities (b)[5] Find the Fourier series of f(x) 2.[10]For the function, f(x), given on the interval 0 < x <L (a)[4] Sketch the graphs of the even extension g(x) and odd extension h(x) of the function of period 2L over three periods...
Question 6 Consider the function defined over the interval 0<x<L. Extend f(x) as a function of...
Question 6 Consider the function defined over the interval 0<x<L. Extend f(x) as a function of period 2L by using an odd half-range expansion 1) Sketch the extended function over the interval -3L<XS3L. 2) Calculate the coefficients for the Fourier Series representation of the extended function. 3) Write the first 5 non-zero terms of the Fourier Series. (10 marks)
Find the required Fourier Series for the given function f(x). Sketch the graph of f(x) for...
Find the required Fourier Series for the given function f(x).
Sketch the graph of f(x) for three periods. Write out the first
five nonzero terms of the Fourier Series.
cosine series, period 4 f(0) = 3 if 0<x<1, if 1<x<2 1,
please answer both questions 3. A function f(t) defined on an interval 0 <t<L is given....
please answer both questions
3. A function f(t) defined on an interval 0 <t<L is given. Find the Fourier cosine and sine series of f. f() = 6(1-1),0 <t< 4. Find the steady state periodic solution, *xp(t) of the following differential equation. *" + 5x = F(t), where FC) is the function of period 2nt such that F(t) = 18 if 0 << < 1 and F(t) = -18 if t <t <200.
Sketch the function with its (a) odd periodic extension and (b) even then find the Fourier...
Sketch the function with its (a) odd periodic extension and (b) even then find the Fourier Sine and Fourier Cosine series, respectively. periodic extension, 0< x < X f(x) = -< x< 2 2
Sketch the function with its (a) odd periodic extension and (b) even then find the Fourier Sine and Fourier Cosine series, respectively. periodic extension, 0
Consider the following. 1, -LSX<0. 10. OSX<L; f(x + 2) = f(x) (a) Sketch the graph...
Consider the following. 1, -LSX<0. 10. OSX<L; f(x + 2) = f(x) (a) Sketch the graph of the given function for three periods. (In these graphs, L = 1.) f(x) — — - - - 1 -3 -2 -1 1 2 -3 3 3 -2 -1 . 2 1 (b) Find the Fourier series for the given function. R0 - 4 - ŠOx)
Given, f(x) = {x #1, 2 5x<4 4,0<x< 2 (a) Sketch the graph of f(x) and...
Given, f(x) = {x #1, 2 5x<4 4,0<x< 2 (a) Sketch the graph of f(x) and its even half-range expansion. Then sketch THREE (3) full periods of the periodic function in the interval -12 < x < 12. (6 marks) (b) Determine the Fourier cosine coefficients of Ql(a). (10 marks)
5. (a) (6) Carefully sketch the odd periodic extension, of period 2m, of the function f(x)1, 0 < x < π. (Only sketch over the interval z E [-2π, 2π). (b) (10) Find the Fourier sine series o...
5. (a) (6) Carefully sketch the odd periodic extension, of period 2m, of the function f(x)1, 0 < x < π. (Only sketch over the interval z E [-2π, 2π). (b) (10) Find the Fourier sine series of the function in part (a)
5. (a) (6) Carefully sketch the odd periodic extension, of period 2m, of the function f(x)1, 0
Q1 Given, f(x) = x + 1, 2 5 x < 4 4,0<x<2 (a) Sketch the...
Q1 Given, f(x) = x + 1, 2 5 x < 4 4,0<x<2 (a) Sketch the graph of f(x) and its even half-range expansion. Then sketch THREE (3) full periods of the periodic function in the interval -12 < x < 12. (6 marks) (6) Determine the Fourier cosine coefficients of Q1(a). (10 marks) (c) Write out f(x) in terms of Fourier coefficients you have found in Q1(b). (4 marks)
2. [10]For the function, f(x), given on the interval 0 <x<L (a)[4] Sketch the graphs of the even extension g(x) and odd extension h(x) of the function of period 2L over three periods (b)[6] Find the Fourier cosine and sine series of f(x) f(x) = 3 - x, 0<x<3
1. [8] Given x + 2, -2 < x < 0 f(x) = 12 – 2x, 0<x< 2, f(x + 4) = f(x) (a)[3] Sketch the graph of this function over three periods. Examine the convergence at any discontinuities (b)[5] Find the Fourier series of f(x) 2.[10]For the function, f(x), given on the interval 0 < x <L (a)[4] Sketch the graphs of the even extension g(x) and odd extension h(x) of the function of period 2L over three periods...
Question 6 Consider the function defined over the interval 0<x<L. Extend f(x) as a function of period 2L by using an odd half-range expansion 1) Sketch the extended function over the interval -3L<XS3L. 2) Calculate the coefficients for the Fourier Series representation of the extended function. 3) Write the first 5 non-zero terms of the Fourier Series. (10 marks)
Find the required Fourier Series for the given function f(x).
Sketch the graph of f(x) for three periods. Write out the first
five nonzero terms of the Fourier Series.
cosine series, period 4 f(0) = 3 if 0<x<1, if 1<x<2 1,
please answer both questions
3. A function f(t) defined on an interval 0 <t<L is given. Find the Fourier cosine and sine series of f. f() = 6(1-1),0 <t< 4. Find the steady state periodic solution, *xp(t) of the following differential equation. *" + 5x = F(t), where FC) is the function of period 2nt such that F(t) = 18 if 0 << < 1 and F(t) = -18 if t <t <200.
Sketch the function with its (a) odd periodic extension and (b) even then find the Fourier Sine and Fourier Cosine series, respectively. periodic extension, 0< x < X f(x) = -< x< 2 2
Sketch the function with its (a) odd periodic extension and (b) even then find the Fourier Sine and Fourier Cosine series, respectively. periodic extension, 0
Consider the following. 1, -LSX<0. 10. OSX<L; f(x + 2) = f(x) (a) Sketch the graph of the given function for three periods. (In these graphs, L = 1.) f(x) — — - - - 1 -3 -2 -1 1 2 -3 3 3 -2 -1 . 2 1 (b) Find the Fourier series for the given function. R0 - 4 - ŠOx)
Given, f(x) = {x #1, 2 5x<4 4,0<x< 2 (a) Sketch the graph of f(x) and its even half-range expansion. Then sketch THREE (3) full periods of the periodic function in the interval -12 < x < 12. (6 marks) (b) Determine the Fourier cosine coefficients of Ql(a). (10 marks)
5. (a) (6) Carefully sketch the odd periodic extension, of period 2m, of the function f(x)1, 0 < x < π. (Only sketch over the interval z E [-2π, 2π). (b) (10) Find the Fourier sine series of the function in part (a)
5. (a) (6) Carefully sketch the odd periodic extension, of period 2m, of the function f(x)1, 0
Q1 Given, f(x) = x + 1, 2 5 x < 4 4,0<x<2 (a) Sketch the graph of f(x) and its even half-range expansion. Then sketch THREE (3) full periods of the periodic function in the interval -12 < x < 12. (6 marks) (6) Determine the Fourier cosine coefficients of Q1(a). (10 marks) (c) Write out f(x) in terms of Fourier coefficients you have found in Q1(b). (4 marks)
