Question 20 Not yet answered Points out of 7.00 P Flag question A hollow cylindrical conductor...

Question

Question

science physics

Answer 1

Answer #1

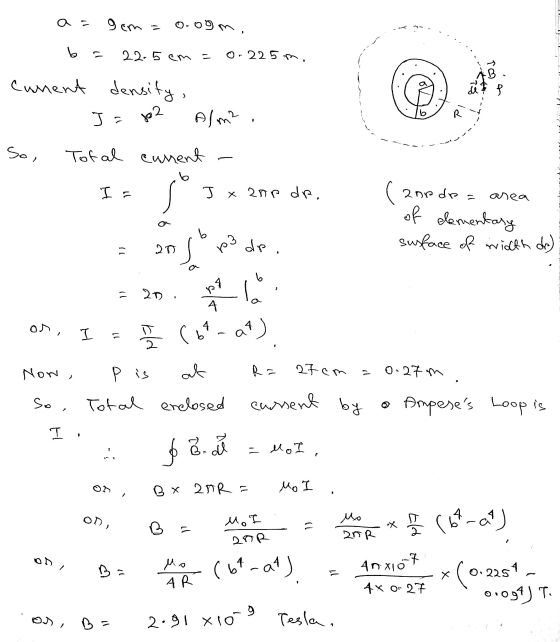

9 cm - 0.09m, b 22.5 cm - - 225 cunent density, 13 १ J = 802 Alm². R So, Total curent I a J xana da. ( 2nddo area of elementa

Answer 2

Similar Homework Help Questions

Question 19 Not yet answered Points out of 7.00 p Flag question A hollow cylindrical conductor...

Question 19 Not yet answered Points out of 7.00 p Flag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r2 in units of A/m². a . . (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one: • a. 501.03 E-ZT . b. 219.45 E-ZT . c. 13640.60 E-7 T Question 20 Not...
Not yet answered Points out of 7.00 Flag question A hollow cylindrical conductor of inner radius...

Not yet answered Points out of 7.00 Flag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r2 in units of A/m2 (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor. Select one: a. 11603.67 E-7T O b. 417.59 E-7 T O c. 502.53 E-7 T
Not yet answered Points out of 7.00 plag question A hollow cylindrical conductor of inner radius...

Not yet answered Points out of 7.00 plag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r^2 in units of A/m2 Io . (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor. Select one O a. 502.53 E-ZT O b. 417.59 E-7T O c. 11603.67 E-7T

Question 19 Not yet answered Points out of 7.00 P Flag question A hollow cylindrical conductor...

Question 19 Not yet answered Points out of 7.00 P Flag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r2 in units of A/m2 o. (a) Calculate the magnetic field at distance r = 13.5 cm from the jenter of the conductor. Select one: a. 13640.60 E-7 T Ob. 219.45 E-7T O c. 501.03 E-ZT
P Flag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer...

P Flag question A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a nor uniform current density J = r^2 in units of A/m2 i . a P (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor. Select one: O a. 11603.67 E-7T O b. 417.59 E-7 T O c. 502.53 E-ZT
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...

A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non-uniform current density J = r2 in units of A/m2. i P (b) Calculate the magnetic field at distance r = 27 cm from the center of the conductor Select one: O a. 417.59 E-ZT o b. 11603.67 E-7 T O c. 502.53 E-7 T

3 part Question? A hollow cylindrical conductor of inner radius a = 9 cm, and outer...

3 part Question? A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = r^2 in units of A/m2 . . i . Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor. Select one: a. 13640.60 E-7 T b. 219.45 E-ZT c. 501.03 E-7T A hollow cylindrical conductor of inner radius a = 9 cm, and outer...
A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...

A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has a non- uniform current density J = m2 in units of A/m2. b (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one a. 13640.60 E-7 T b. 501.03 E-7 T c. 219.45 E-7 T A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22.5 has...
Question 19 Not yet answered Points out of 7.00 P Flag question A cylindrical conductor of...

Question 19 Not yet answered Points out of 7.00 P Flag question A cylindrical conductor of radius R = 9 cm has a non-uniform current density J = 2 r12 in units of A/m2. . (a) Calculate the magnetic field at distance r = 8 cm from the center of the conductor. Select one: O a. 9720.00 T ob. 3240.00 T O c. 6826.67 T Next page LION 20 Not yet answered Points out of 7.00 Flag question A cylindrical...

A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b =...

A hollow cylindrical conductor of inner radius a = 9 cm, and outer radius b = 22,5 has a non-uniform current density J = r^2 in units of A/m2 Р (a) Calculate the magnetic field at distance r = 13.5 cm from the center of the conductor Select one: O a. 219.45 E-7T b. 13640.60 E-7T O c. 501.03 E-ZT
