Desighn line Follower Robotic circuit using 82c55 PPI (programmable perpheral Interterface ) with using two dc...

Question

Question

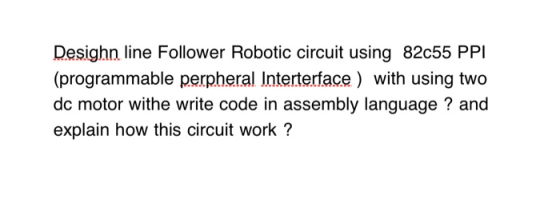

Desighn line Follower Robotic circuit using 82c55 PPI (programmable perpheral Interterface ) with using two dc motor withe wr

science physics

Add a comment Improve this question Transcribed image text

Answer 1

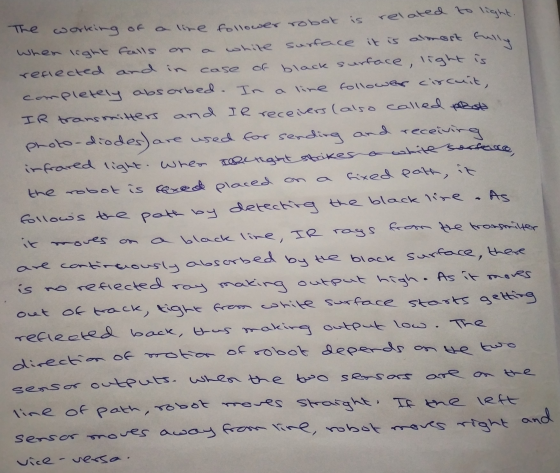

Answer #1

9V U3 RV2 U2:A 7805 VO D1 IR TX 조 D3 IR Rx 100% GND + 10k 2 LM358 R6 1k R3 R4 10k 1k D6 DIODE-LED DC MOTOR U1 RAW GND RST Vcc This is a line follower robot circuit with Arduino pro. You can easily replace it with 82c55 PPI keeping the remaining circuit intact.
