An engineer has proposed that compressed air be used to "level the load" in an electrical-generation...
An engineer has proposed that compressed air be used to "level the load" in an electrical-generation...

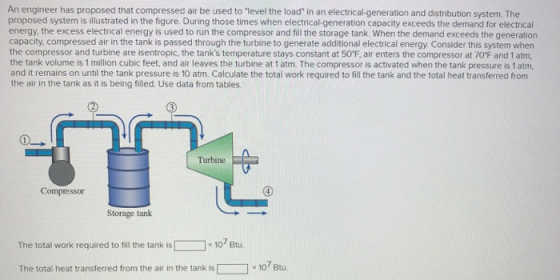

An engineer has proposed that compressed air be used to "level the load" in an electrical-generation and distribution system. The proposed system is illustrated in the figure. During those times when electrical-generation capacity exceeds the demand for electrical energy, the excess electrical energy is used to run the compressor and fill the storage tank. When the demand exceeds the generation capacity, compressed air in the tank is passed through the turbine to generate additional electrical energy. Consider this system when...
An engineer has proposed that compressed air be used to "level the load" in an electrical-generation...
An engineer has proposed that compressed air be used to "level the load" in an electrical-generation and distribution system. The proposed system is illustrated in the figure. During those times when electrical-generation capacity exceeds the demand for electrical energy, the excess electrical energy is used to run the compressor and fill the storage tank. When the demand exceeds the generation capacity, compressed air in the tank is passed through the turbine to generate additional electrical energy. Consider this system when...
Air stored underground at 500 psia and 200 deg.F is first heated by natural gas combustion...
Air stored underground at 500 psia and 200 deg.F is first heated by natural gas combustion to 2,340 deg.F at constant pressure, then expanded in an 89% efficient turbine to atmospheric (14.7 psia) pressure. Part of the work of the turbine is used to compress ambient air at 70 deg.F and 14.7 psia to store it underground with an 85% efficient compressor. The air that is stored underground loses heat to the surroundings. The turbine powers an electric generator that...
Problem 1) (40 pts) The French engineer, Guy Negre, invented an "eco-taxi," a low pollution vehicle...
Problem 1) (40 pts) The French engineer, Guy Negre, invented an "eco-taxi," a low pollution vehicle to be built in Mexico beginning in the year 2001. Its energy storage system consists of compressed air tanks that, on demand, operate an engine (it could be a turbine, but in the case of this car, it is a piston device). There are several problems to be considered. Let us limit ourselves to the turn-around efficiency of the energy storage system. For comparison,...
The gas turbine cycle of a gas-steam combined cycle power plant has a pressure ratio of...
The gas turbine cycle of a gas-steam combined cycle power plant has a pressure ratio of 12. The air enters the compressor at 310 K and 100 kPa (1) and the turbine at 1400 K (3). The combustion gases leaving the gas turbine (4) are used to heat the steam to 12.5 MPa up to 500 °C (6) in a heat exchanger. The flue gas exits the heat exchanger (5) at 247 °C. The steam is expanded in a high...
System Model: Automotive Air Conditioning System Outside Air Temp: 45 oC Car Interior Air Temp: 22...
System Model: Automotive Air Conditioning System Outside Air Temp: 45 oC Car Interior Air Temp: 22 oC Heat Load = 4.2 kJ/sec rate at which heat must go in to the air conditioner to be removed from the car’s interior Refrigerant: R134a HINT: Heat enters an air conditioning system where? Refrigerant 134a … - leaves the evaporator coil and enters the compressor as a saturated vapor at the evaporator pressure of 2.8 bars. - It leaves the compressor at...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of aircraft being developed, the SR-71 Blackbird (shown in Figure 1). Figure 1: The SR-71 Blackbird Early research on the project focused on which fuel to use for the Blackbird. Pratt & Whitney had a J-57 engine that was designed for kerosene and being considered for implementation on the Blackbird. The J-57 only took 5 months to convert to running on liquid hydrogen, however tests...
Refer to Figure 3 (below), depicting a regenerative Rankine cycle with a closed feedwater heater (CFWH) when considering the following system description. Saturated liquid water at a pressure of P b...
Refer to Figure 3 (below), depicting a regenerative Rankine cycle with a closed feedwater heater (CFWH) when considering the following system description. Saturated liquid water at a pressure of P before entering the CFWH. 12 kPa is pumped to a pressure of Pi-5 MPa After leaving the CFWH as a saturated liquid, the water continues to a Steam Generator which heats the water to a temperature of Ts 600°C. This superheated steam is used to drive a Turbine. A quantity...
part a. The air in an inflated balloon (defined as the system) is warmed over a toaster and absorbs 110 J of heat. As it...
part a. The air in an inflated balloon (defined as the system) is warmed over a toaster and absorbs 110 J of heat. As it expands, it does 79 kJ of work. What is the change in internal energy for the system? Express the energy in kilojoules to two significant figures. part b. When fuel is burned in a cylinder equipped with a piston, the volume expands from 0.235 L to 1.350 L against an external pressure of 1.02 atm...
Chose the correct answer(s) from the multiple choice lists below 1. Exergy of a system is a) b) always increasing e) guided by the first and second laws of thermodynamics for reversible proce...
Chose the correct answer(s) from the multiple choice lists below 1. Exergy of a system is a) b) always increasing e) guided by the first and second laws of thermodynamics for reversible processes only Un d) limited by the second law of thermodynamics for all processes. processes, it is destroyed partly or completely). e) equal to the Gibs free energy of the system. 211two electrodes, one made of u (E.-3.06 V) and another made of Cu ΟΕ.+034V placed in an...
An engineer has proposed that compressed air be used to "level the load" in an electrical-generation and distribution system. The proposed system is illustrated in the figure. During those times when electrical-generation capacity exceeds the demand for electrical energy, the excess electrical energy is used to run the compressor and fill the storage tank. When the demand exceeds the generation capacity, compressed air in the tank is passed through the turbine to generate additional electrical energy. Consider this system when...
Problem 1) (40 pts) The French engineer, Guy Negre, invented an "eco-taxi," a low pollution vehicle to be built in Mexico beginning in the year 2001. Its energy storage system consists of compressed air tanks that, on demand, operate an engine (it could be a turbine, but in the case of this car, it is a piston device). There are several problems to be considered. Let us limit ourselves to the turn-around efficiency of the energy storage system. For comparison,...
Quantitative: In the 1950s liquid hydrogen was considered as a fuel for a new type of aircraft being developed, the SR-71 Blackbird (shown in Figure 1). Figure 1: The SR-71 Blackbird Early research on the project focused on which fuel to use for the Blackbird. Pratt & Whitney had a J-57 engine that was designed for kerosene and being considered for implementation on the Blackbird. The J-57 only took 5 months to convert to running on liquid hydrogen, however tests...
Refer to Figure 3 (below), depicting a regenerative Rankine cycle with a closed feedwater heater (CFWH) when considering the following system description. Saturated liquid water at a pressure of P before entering the CFWH. 12 kPa is pumped to a pressure of Pi-5 MPa After leaving the CFWH as a saturated liquid, the water continues to a Steam Generator which heats the water to a temperature of Ts 600°C. This superheated steam is used to drive a Turbine. A quantity...
Chose the correct answer(s) from the multiple choice lists below 1. Exergy of a system is a) b) always increasing e) guided by the first and second laws of thermodynamics for reversible processes only Un d) limited by the second law of thermodynamics for all processes. processes, it is destroyed partly or completely). e) equal to the Gibs free energy of the system. 211two electrodes, one made of u (E.-3.06 V) and another made of Cu ΟΕ.+034V placed in an...
