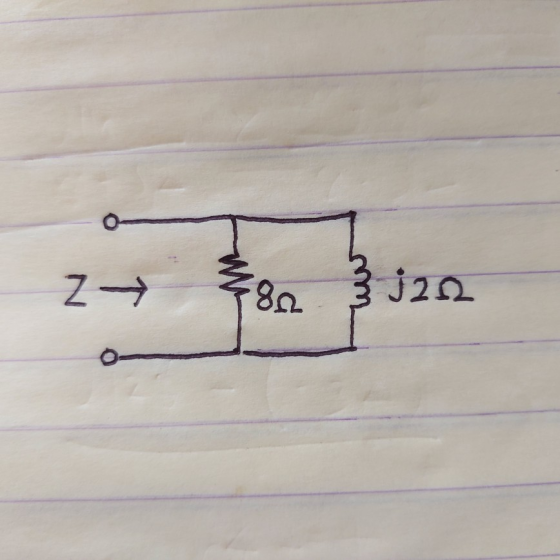

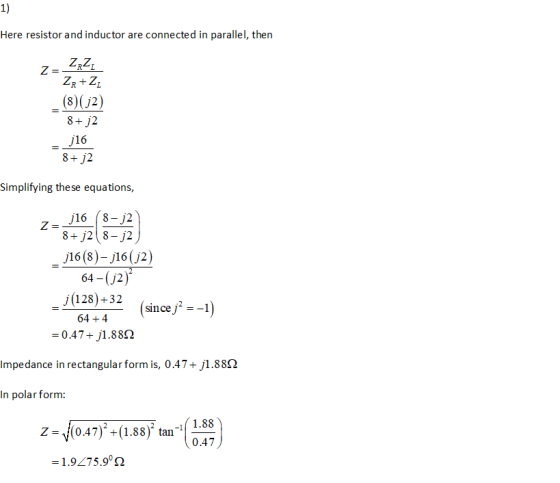

1. find the frequency-domain impedance, Z, as shown in
the figure below.

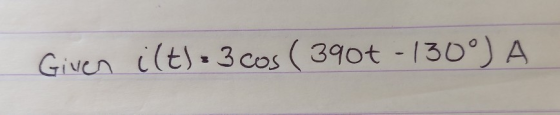

2. Determine the period of current in ms.
Homework Answers
Add Answer to:
1. find the frequency-domain impedance, Z, as shown in
the figure below.
2. Determine the period...
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure...
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure below. z 7Ω j3Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) 2 (b) degrees Click if you would like to Show Work for this question: Open Show Work
Chapter 8, Problem 8.014 Find the impedance, z, shown in the figure below at a frequency...
Chapter 8, Problem 8.014 Find the impedance, z, shown in the figure below at a frequency of 60 Hz. 10 mH 2Ω 6 Ohm 초 10 μF 2.
Q4: For the circuit shown in figure below, find the value of impedance Z that will...
Q4: For the circuit shown in figure below, find the value of impedance Z that will receive maximum power, and determine this power. (15Marks) 85 22 -j10022 170 20° V 200000 j2002 50 22
A. For the system given in Figure A, find ) The equivalent impedance (Z) 2) The...
A. For the system given in Figure A, find ) The equivalent impedance (Z) 2) The current through the components (. 3) The power factor at the source end XFion X10 X100 72000 V X30 Figure A B. Draw the single-line equivalent of the given three phase system shown in Figure B 230v 2100 200 23012 2302akV
The transfer function relating Z(s) to the input U(s) is given below: It can be shown that the IL...
The transfer function relating Z(s) to the input U(s) is given
below: It can be shown that the ILT of Z (s) is of the form Z(t)
Find C1, C2, r1 r2 r3 , and W
Problem 1: (5Points) The transfer function relating Z(s) to the input U(s) is given below: St S It can be shown that the ILT of Z (s) is of the form rt Find C1, C2» T['T2'3' Problem 2: (20 Points) The DE for a...
1) The impedance (Z) of a 220 mH inductor is j59 Ω in the frequency domain....
1) The impedance (Z) of a 220 mH inductor is j59 Ω in the frequency domain. What is the driving frequency? This question cannot be answered. Inductors do not have positive imaginary components 42.7 Hz 20 KHz 0.723 Hz 0.012 Hz 2) What is the XL for a 3.3 μH inductor at 500 KHz? 10.4 Ω -j10.4 Ω j10.4K Ω j10.4 Ω -j10.4 Ω 3) What is a component value given its complex Z of –j27 Ω at a frequency...
SC 9) (5 marks) Figure 9 represents a simple circuit in the time domain. The impedance...
SC 9) (5 marks) Figure 9 represents a simple circuit in the time domain. The impedance of a capacitor in the complex frequency domain is Z = 1 and for an inductor Z = sl. If the complex frequency describing the circuit in Fig. 9 is s = -150 +j100 s-1, determine the time domain voltage vs(t) (provided by the source) which corresponds to a frequency-domain voltage V2 = 52-250 V. i(t) 21 12 + V1 + Vs 100 mH...
A) Given An AC circuit in the frequency domain has an impedance Z represented by the...
A) Given An AC circuit in the frequency domain has an impedance Z represented by the vectors E and I 40v 16.87 60 hertz 20° 8.0A B) Determine Step 1: The value of the impedance Z as a complex number in rectangular form. Step 2: The sketch of Z in terms of an equivalent series circuit representation. Step 3: The value of the reactive element of the series equivalent circuit representation Step 4: The value of the admittance Y -...
Find the impedance, Z. shown in Fig. P8.12 at a frequency of 400 Hz. 10 mH...
Find the impedance, Z. shown in Fig. P8.12 at a frequency of 400 Hz. 10 mH 2- 10 10 uF
PROBLEMS Given in5 cos (400 120%) A, determine the period of he current and the frequency...
PROBLEMS Given in5 cos (400 120%) A, determine the period of he current and the frequency in Hertz. s galculate the current in the resistor in Fig. P8.S if the voltage input is (a) (0)-10 cos (3771 +180°%) V (b) 00 12 sin (377t +45) V Give the answers in both the time and frequency domains 8.2/Determine the relative phase relationship of the two waves ana M(010 cos (377t- 30) v n)10 cos (3771 +90*) v e.9) Given the following...
Chapter 8, Problem 8.008 (Circuit Solution) Find the frequency-domain impedance, Z, as shown in the figure below. z 7Ω j3Ω Enter (a) the amplitude and (b) the phase angle. The phase angle must be in the interval (-180°, 180°). (a) 2 (b) degrees Click if you would like to Show Work for this question: Open Show Work
Chapter 8, Problem 8.014 Find the impedance, z, shown in the figure below at a frequency of 60 Hz. 10 mH 2Ω 6 Ohm 초 10 μF 2.
Q4: For the circuit shown in figure below, find the value of impedance Z that will receive maximum power, and determine this power. (15Marks) 85 22 -j10022 170 20° V 200000 j2002 50 22
A. For the system given in Figure A, find ) The equivalent impedance (Z) 2) The current through the components (. 3) The power factor at the source end XFion X10 X100 72000 V X30 Figure A B. Draw the single-line equivalent of the given three phase system shown in Figure B 230v 2100 200 23012 2302akV
The transfer function relating Z(s) to the input U(s) is given
below: It can be shown that the ILT of Z (s) is of the form Z(t)
Find C1, C2, r1 r2 r3 , and W
Problem 1: (5Points) The transfer function relating Z(s) to the input U(s) is given below: St S It can be shown that the ILT of Z (s) is of the form rt Find C1, C2» T['T2'3' Problem 2: (20 Points) The DE for a...
SC 9) (5 marks) Figure 9 represents a simple circuit in the time domain. The impedance of a capacitor in the complex frequency domain is Z = 1 and for an inductor Z = sl. If the complex frequency describing the circuit in Fig. 9 is s = -150 +j100 s-1, determine the time domain voltage vs(t) (provided by the source) which corresponds to a frequency-domain voltage V2 = 52-250 V. i(t) 21 12 + V1 + Vs 100 mH...
A) Given An AC circuit in the frequency domain has an impedance Z represented by the vectors E and I 40v 16.87 60 hertz 20° 8.0A B) Determine Step 1: The value of the impedance Z as a complex number in rectangular form. Step 2: The sketch of Z in terms of an equivalent series circuit representation. Step 3: The value of the reactive element of the series equivalent circuit representation Step 4: The value of the admittance Y -...
Find the impedance, Z. shown in Fig. P8.12 at a frequency of 400 Hz. 10 mH 2- 10 10 uF
PROBLEMS Given in5 cos (400 120%) A, determine the period of he current and the frequency in Hertz. s galculate the current in the resistor in Fig. P8.S if the voltage input is (a) (0)-10 cos (3771 +180°%) V (b) 00 12 sin (377t +45) V Give the answers in both the time and frequency domains 8.2/Determine the relative phase relationship of the two waves ana M(010 cos (377t- 30) v n)10 cos (3771 +90*) v e.9) Given the following...
