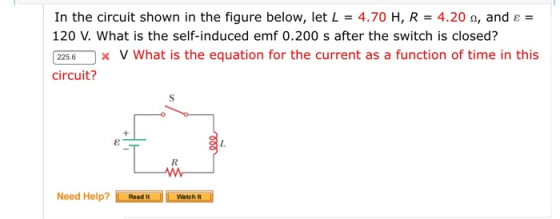

In the circuit shown in the figure below, let L = 4.70 H, R = 4.20...

Question

Question

science Advanced-Physics

Answer 1

Answer #1

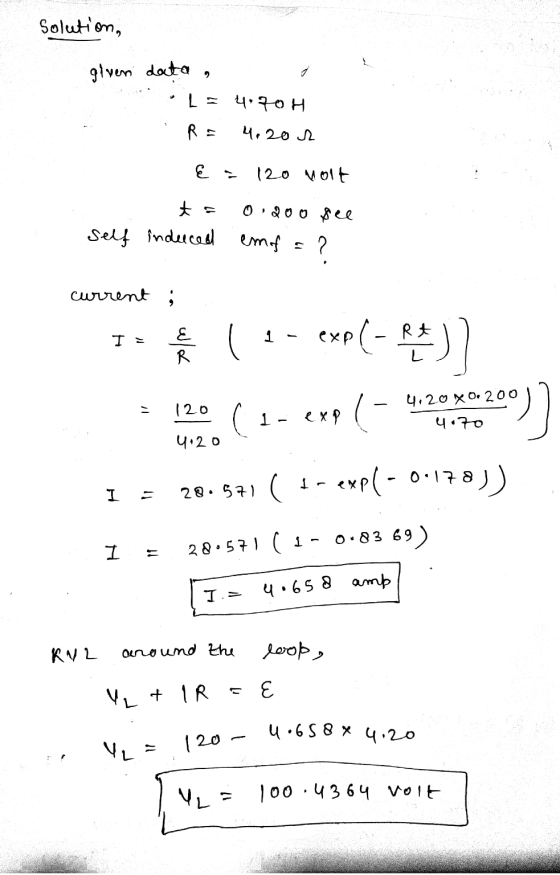

Solution, given data , 4:70 H 4. 202 R = 120 molt t = self induced 0200 yee emof = ? current ; I = 1 E R exp(- RA) 120 (1.exe

Answer 2

Similar Homework Help Questions

In the circuit shown in the figure below, let L-4.70 H, R-3.00 n, and ε·120 V....

In the circuit shown in the figure below, let L-4.70 H, R-3.00 n, and ε·120 V. what is the se lf-induced emf 0.200 s after the switch is closed?
a. With a battery emf of 17.2 V in the RL circuit (R=0.410 2 and L=...

a. With a battery emf of 17.2 V in the RL circuit (R=0.410 2 and L= 86.0 mH), what is the self-induced emf when the switch has just been closed on a? Submit Answer Tries 0/10 What is the self-induced emf after two L/R time constants have passed? Submit Answer Tries 0/10 In units of the time constant, after how much time will the self-induced emf be just one-half of the battery emf? Submit Answer Tries 0/10
Consider a series RC circuit as in the figure below for which R = 4.00 MN,...

Consider a series RC circuit as in the figure below for which R = 4.00 MN, C = 1.00 pF, and € = 29.0 V. o S R w + € (a) Find the time constant of the circuit. (b) What is the maximum charge on the capacitor after the switch is thrown closed? pc (c) Find the current in the resistor 10.0 s after the switch is closed. ДА Need Help? Read It Watch It

= In the circuit below, R 10.0 12, L = 30.0 H, and Ɛ = 20.0...

= In the circuit below, R 10.0 12, L = 30.0 H, and Ɛ = 20.0 V. Switch S1 is closed and switch S2 is left open. After the current has reached its final value, switch Si is opened and switch S2 is closed. What is the magnitude of the potential difference between points a and b three seconds after S2 is closed (in V)? (A) 3.89 (B) 9.12 (C) 2.00 (D) 7.36 (E) 6.54 (F) 1.00 ع si Sa...
Electrical Circuit and Self Inductance? With a battery emf of 13.6 V in the RL circuit...

Electrical Circuit and Self Inductance? With a battery emf of 13.6 V in the RL circuit ( R=0.710 ? and L= 78.0 mH), what is the self-induced emf when the switch has just been closed on a? What is the self-induced emf after two L/R time constants have passed? In units of the time constant, after how much time will the self-induced emf be just one-half of the battery emf?
In the circuit below, R=10.0 ohms, L=30.0 h, and E=20v. switch s1 is closed and switch...

In the circuit below, R=10.0 ohms, L=30.0 h, and E=20v. switch s1 is closed and switch s2 is left open. After the circuit has reached its final value switch s1 is opened and switch s2 is closed. what is the magnitude of the potential difference between points a and b three seconds after s2 is closed (inV). 7. In the circuit below, R = 10.0 12, L = 30.0 H, and ε = 20.0 V. Switch S1 is closed and...

In the circuit of the figure below, the battery emf e m f is 60 V,...

In the circuit of the figure below, the battery emf e m f is 60 V, the resistance R is 150 Ω, and the capacitance C is 0.500 µF. The switch S is closed for a long time interval, and zero potential difference is measured across the capacitor. After the switch is opened, the potential difference across the capacitor reaches a maximum value of 150 V. What is the value of the inductance? In the circuit of the figure below,...
Consider a series RC circuit as in the figure below for which R 5.00 MO, C-8.00...

Consider a series RC circuit as in the figure below for which R 5.00 MO, C-8.00 μF. and ε 26.0 V. (a) Find the time constant of the circuit (b) What is the maximum charge on the capacitor after the switch is thrown closed? 208 (c) Find the current in the resistor 10.0 s after the switch is closed. what mathematical function describes the time dependence of the current in an RC circuit? ㎂
Consider a series RC circuit as in the figure below for which R = 3.00 MΩ,...

Consider a series RC circuit as in the figure below for which R = 3.00 MΩ, C = 4.00 µF, and ε = 31.0 V. (a) Find the time constant of the circuit. (b) What is the maximum charge on the capacitor after the switch is thrown closed? (c) Find the current in the resistor 10.0 s after the switch is closed. S CE R w + 3

Consider a series RC circuit as in the figure below for which R = 7.00 M12,...

Consider a series RC circuit as in the figure below for which R = 7.00 M12, C = 4.00 uF, and ε = 35.0 V. c: R + E (a) Find the time constant of the circuit. S (b) What is the maximum charge on the capacitor after the switch is thrown closed? μα (c) Find the current in the resistor 10.0 s after the switch is closed. РА
