3. A 1000 kg car is parked on a slope that is 30 degrees from horizontal....

Question

Question

science physics

Answer 1

Answer #1

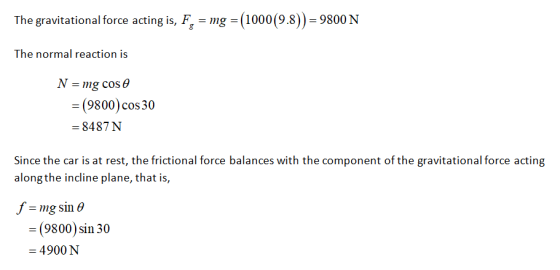

The gravitational force acting is, F, = mg = (1000(9.8)) = 9800 N The normal reaction is N = mg cose =(9800) cos 30 = 8487 N

Answer 2
