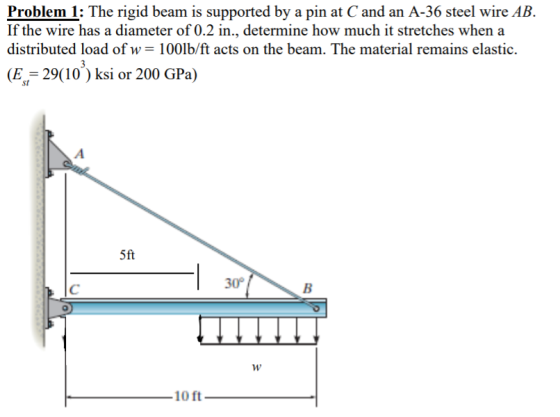

Problem 1: The rigid beam is supported by a pin at C and an A-36 steel...
The strut is supported by a pin at C and an A-36 steel guy wire...
The strut is supported by a pin at C and an A-36 steel guy wire AB. If the wire has a diameter of 10 mm, determine how much it stretches when the distributed load acts on the strut.

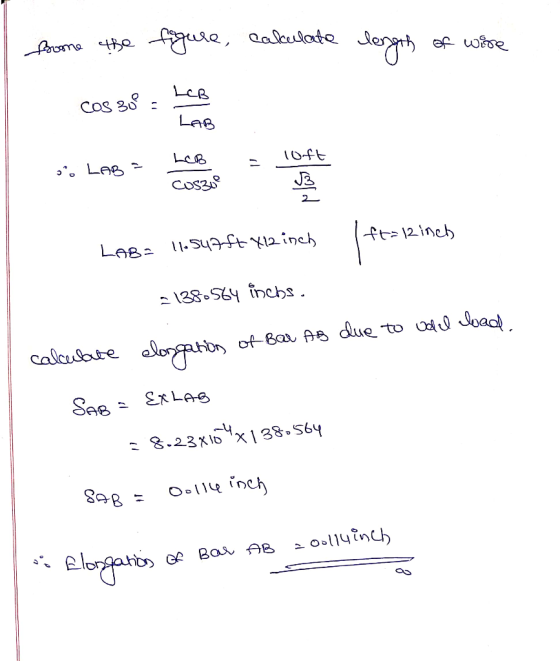

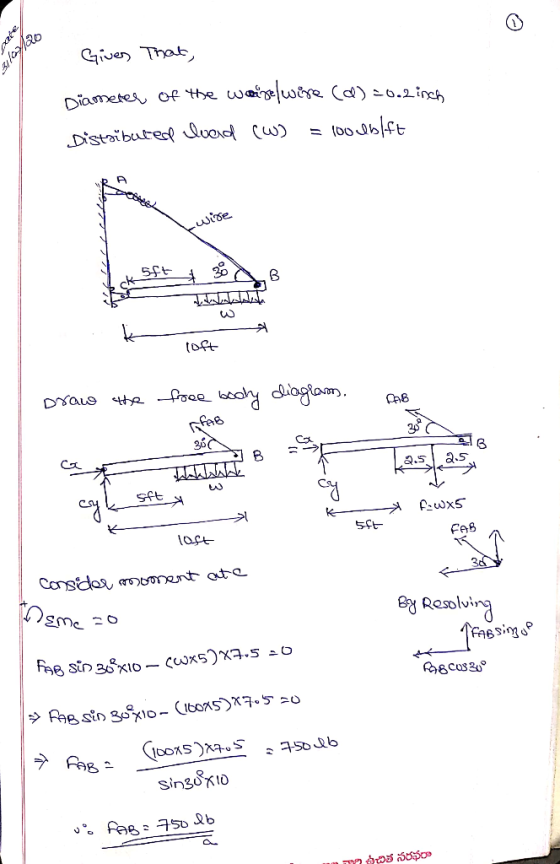

The strut is supported by a pin at C and an A-36 steel guy wire AB. If the wire has a diameter of 0.2 in., determi...
The strut is supported by a pin at C and an A-36 steel guy wire AB. If the wire has a diameter of 0.2 in., determine how much it stretches when the distributed load acts on the strut.
The rigid beam is supported at its ends by two A-36 steel tie rods. (Figure 1)...
The rigid beam is supported at its ends by two A-36 steel tie
rods. (Figure 1) The rods have diameters dAB=0.52 in.dAB=0.52 in.
and dCD=0.34 in.dCD=0.34 in. The allowable stress for the steel is
σallow=15 ksi
Determine the largest intensity of the distributed load ww and
its length xx on the beam so that the beam remains in the
horizontal position when it is loaded.
Express your answers, separated by a comma, to three significant
figures.
<Extra Credit Assignment 20...
A rigid beam AB is supported by a hinge at A and by a steel wire...
A rigid beam AB is supported by a hinge at A and by a steel wire CD, 2.50mm in diameter and 300mm long, as shown. With no load applied on the beam, the end B is 2mm above the contact point E. Determine the elongation of CD just to touch point E. For the steel wire, E=200GPa. Express your answer in mm and use two decimal places. D W = 40 kg 44 Steel wire 2.5 mm E=200 GPa 300...
The rigid pipe is supported by a pin at A and an A-36 steel guy wire...
The rigid pipe is supported by a pin at A and an A-36 steel guy wire BD Figure 1 of 1 > 4 ft IA 3 ft 3 ft
Mechanics of material Question (Problem 2) The rigid beam ABC is supported by a pin at...
Mechanics of material Question
(Problem 2) The rigid beam ABC is supported by a pin at A and wires AB and CE. If the load P acting on the beam causes the end C to be displaced by 15 mm downward, determine the straub developed in wires CE and BD. Also, calculate the load P and the load carried by each wire if wire-200 GPa, dwire-0.1m. 2 m 3 m nm
The rigid pipe is supported by a pin at A and an A-36 guy wire BD....
The rigid pipe is supported by a pin at A and an A-36 guy wire BD. If the wire has a diameter of 8 mm, determine the load P if the point D is displaced 2 mm vertically downwards Find the required material properties from the Table at the end of the textbook Also note whether the wire is within the elastic range or not?
A rigid beam ABCD is supported by a pin at B and two cables located at...
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
Q.1. (10 Marks) The rigid bar AB is supported by the pin-connected rod BC that has...
Q.1. (10 Marks) The rigid bar AB is supported by the pin-connected rod BC that has a diameter of 25 mm and is made of A-36 steel (E = 200 GPa). Determine the magnitude of w (kN/m) that is required to displace point B 3 mm downward, 3
In the figure, the rigid member ABDE is supported at A by a single shear pin...
In the figure, the rigid member ABDE is supported at
A by a single shear pin connection and at B by a
tie rod (1). The tie rod is attached at B and C
with double shear pin connections. The pins at A,
B, and C each have an ultimate shear strength of
84 ksi, and tie rod (1) has a yield strength of 63 ksi. A
concentrated load of P = 20 kips is applied perpendicular
to DE, as...
The rigid beam is supported at its ends by two A-36 steel tie
rods. (Figure 1) The rods have diameters dAB=0.52 in.dAB=0.52 in.
and dCD=0.34 in.dCD=0.34 in. The allowable stress for the steel is
σallow=15 ksi
Determine the largest intensity of the distributed load ww and
its length xx on the beam so that the beam remains in the
horizontal position when it is loaded.
Express your answers, separated by a comma, to three significant
figures.
<Extra Credit Assignment 20...
A rigid beam AB is supported by a hinge at A and by a steel wire CD, 2.50mm in diameter and 300mm long, as shown. With no load applied on the beam, the end B is 2mm above the contact point E. Determine the elongation of CD just to touch point E. For the steel wire, E=200GPa. Express your answer in mm and use two decimal places. D W = 40 kg 44 Steel wire 2.5 mm E=200 GPa 300...
The rigid pipe is supported by a pin at A and an A-36 steel guy wire BD Figure 1 of 1 > 4 ft IA 3 ft 3 ft
Mechanics of material Question
(Problem 2) The rigid beam ABC is supported by a pin at A and wires AB and CE. If the load P acting on the beam causes the end C to be displaced by 15 mm downward, determine the straub developed in wires CE and BD. Also, calculate the load P and the load carried by each wire if wire-200 GPa, dwire-0.1m. 2 m 3 m nm
A rigid beam ABCD is supported by a pin at B and two cables located at A and C. The cables have a 30 mm diameter and are made of steel with yield strength of 800 MPa and elastic modulus of 200 GPa. The beam is designed to resist a vertical load P applied at D equal to 200 kN. a) Find the forces developed in each cable b) Find the corresponding vertical displacement at point where the load is...
Q.1. (10 Marks) The rigid bar AB is supported by the pin-connected rod BC that has a diameter of 25 mm and is made of A-36 steel (E = 200 GPa). Determine the magnitude of w (kN/m) that is required to displace point B 3 mm downward, 3
In the figure, the rigid member ABDE is supported at
A by a single shear pin connection and at B by a
tie rod (1). The tie rod is attached at B and C
with double shear pin connections. The pins at A,
B, and C each have an ultimate shear strength of
84 ksi, and tie rod (1) has a yield strength of 63 ksi. A
concentrated load of P = 20 kips is applied perpendicular
to DE, as...
