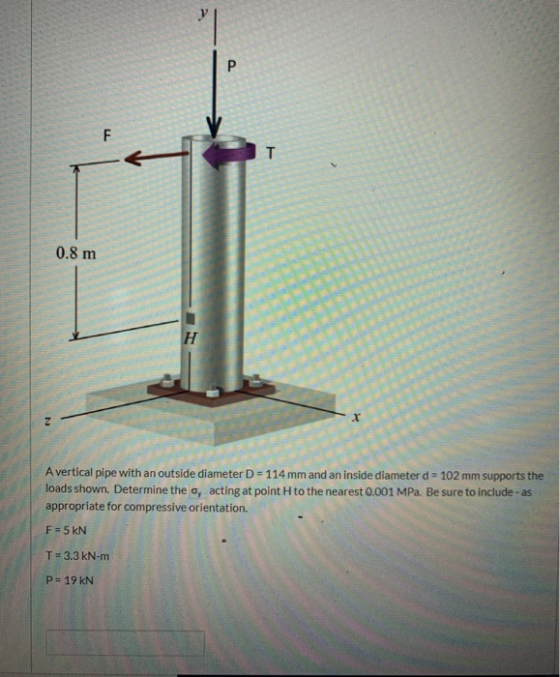

P F LT 0.8 m H Z X A vertical pipe with an outside diameter D...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

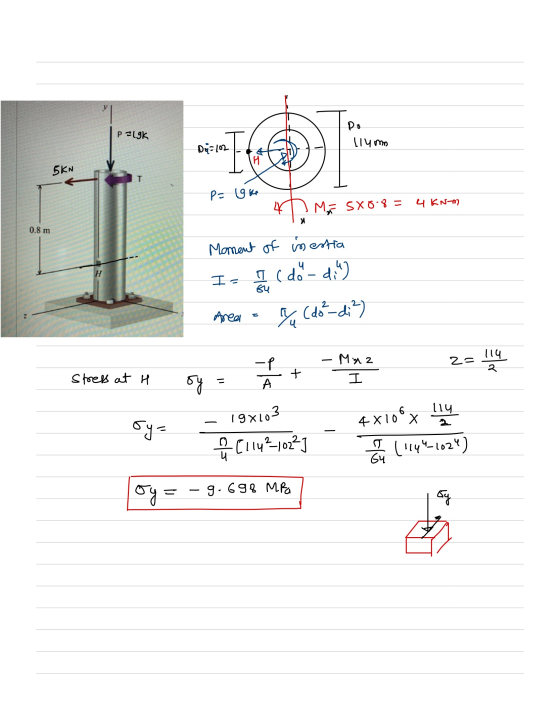

Palok OT Do lium Do-102 H 5KN T P = 1gkn 4h 4 KNm Mai SX0.8 = พ 0.8 m Moment of imestia H Is II (do - di) 84 Area = % (do ²

Answer 2

Similar Homework Help Questions

50 kN Problem 2 The vertical pipe supports the loads shown. The pipe has an outside diameter of 325 mm and an insid...

50 kN Problem 2 The vertical pipe supports the loads shown. The pipe has an outside diameter of 325 mm and an inside diameter of 305 mm Determine the stresses acting on points H and K and sketch them on properly oriented elements. 2.5 m 1.5 m 9 kN 17 KN 6 m 4m 13kN
50 kN Problem 2 The vertical pipe supports the loads shown. The pipe has an outside...

50 kN Problem 2 The vertical pipe supports the loads shown. The pipe has an outside diameter of 325 mm and an inside diameter of 305 mm Determine the stresses acting on points H and K and sketch them on properly oriented elements. .5 m 1.5 m 9 kN 17 kN 6 m 13 kN 4 m Problem 2-Solution
A concentrated load P is applied to the upper end of a 0.86-m-long pipe. The outside diameter of the pipe is D-106 mm and the inside diameter is d-98 mm. (a) Compute the value of Q for the pipe. (b)...

A concentrated load P is applied to the upper end of a 0.86-m-long pipe. The outside diameter of the pipe is D-106 mm and the inside diameter is d-98 mm. (a) Compute the value of Q for the pipe. (b) If the allowable shear stress for the pipe shape is 75 MPa, determine the maximum load P that can be applied to the cantilever beam. Answers: (a) Q = (b) P = kN A concentrated load P is applied to...

A pipe with an outside diameter of 175 mm and a wall thickness of 6 mm...

A pipe with an outside diameter of 175 mm and a wall thickness of 6 mm is subjected to the loadings shown in the figure below. Р. H For this analysis, use the following values: Distances, Loads, and Moments. a = 400 mm Px = 40.5 kN Py = 68.5 kN T = 35 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the pipe if there is no internal pressure (i.e.,p-OkPa). (Note:...
A pipe with an outside diameter of 150 mm and a wall thickness of 5 mm...

A pipe with an outside diameter of 150 mm and a wall thickness of 5 mm is subjected to the loadings shown in the figure below. P PO a For this analysis, use the following values: Distances, Loads, and Moments. a = 450 mm Px = 11.5 kN Py = 25.5 kN T = 15 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the pipe if there is no internal pressure (i.e.,...
I need help with part B thank you A pipe with an outside diameter of 150...

I need help with part B thank you A pipe with an outside diameter of 150 mm and a wall thickness of 5 mm is subjected to the loadings shown in the figure below. P PO a For this analysis, use the following values: Distances, Loads, and Moments. a = 450 mm Px = 11.5 kN Py = 25.5 kN T = 15 kN-m (a) Calculate the maximum in-plane shear stress Tmax at point Hon the outer surface of the...

Problem 5. (20 pts) A vertical propane tank with an outside diameter of D 300 mm...

Problem 5. (20 pts) A vertical propane tank with an outside diameter of D 300 mm and a wall-thickness of t-9 mm is subjected to a horizontal force of P 41 kN. The gage pressure inside the tank is 7 MPa. [D-300 mm, te9 mm, P 41 kN] a) Determine the maximum normal stress at point K b) Determine the shear stress produced by the applied force. c) Determine the maximum shear stress in the 3d stress element.
A steel pipe assembly supports a concentrated load of P = 26 kN, as shown. The...

A steel pipe assembly supports a concentrated load of P = 26 kN, as shown. The outside diameter of the pipe is 137 mm and the wall thickness is 6.0 mm. Assume L = 760 mm and e = 370 mm. Determine the normal stresses σH, σK produced at points H and K. Answer MPa MPa, σ,-
the hollow tube down has an outside diameter of 45 mm and an inside diameter of...

the hollow tube down has an outside diameter of 45 mm and an inside diameter of 40 mm. the tube is made of an aluminum alloy with a minimum yield strength of 280 MPa. the bending load is F =1.5 kN, the axial load is P = 10kN and the twisting moment is T = 70 N-m. Determine the factor of safety based on the stress at point A using (a) the maximum shear stress theory and (b) the distortion...

Aroadway sign that weighs Py = 12 kN is supported by a structural pipe with an...

Aroadway sign that weighs Py = 12 kN is supported by a structural pipe with an outside diameter of 300 mm and a wall thickness of 12.5 mm. Wind pressure on the sign creates a resultant force of P, - 18 kN, acting as shown. Using length dimensions of a = 4.5 m and b = 6.1 m, determine (a) the normal and shear stresses at point H. (b) the normal and shear stresses at point K. P. H K...
