1a. 1b. 1c. Block A slides down the incline In the figure, two blocks are connected...

Question

Question

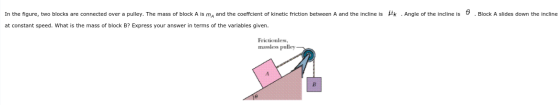

1a. Block A slides down the incline In the figure, two blocks are connected over a pulley. The mass of block A is me and the coef

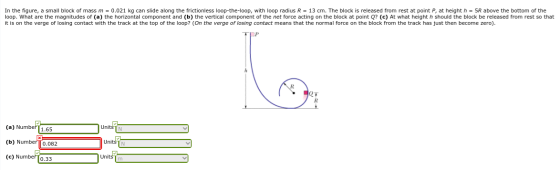

1b. In the figure, a small block of mass m = 0.021 kg can slide along the frictionless loop-the-loop, with loop radius R = 13 cm.

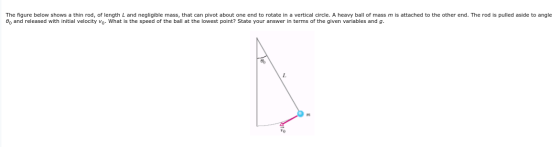

1c. The figure below shows a thin rod, of length L and negligible mass, that can pivot about one end to rotate in a vertical circ

science physics

Answer 1

Answer #1

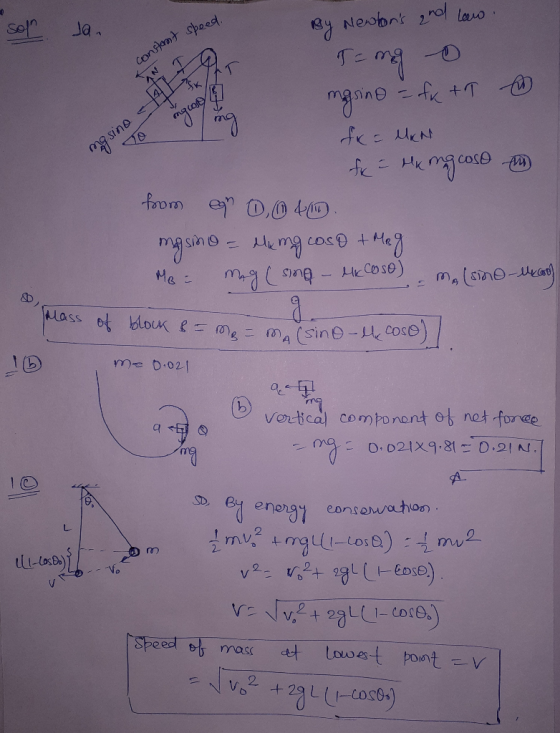

sor Jan constant speed By Newtons and Law Tango masine = fx +T ingrosso ng mg sine fc = MAN Mking coso AW fix - Mx from egr

Answer 2
