8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

Question

Question

science physics

Answer 1

Answer #1

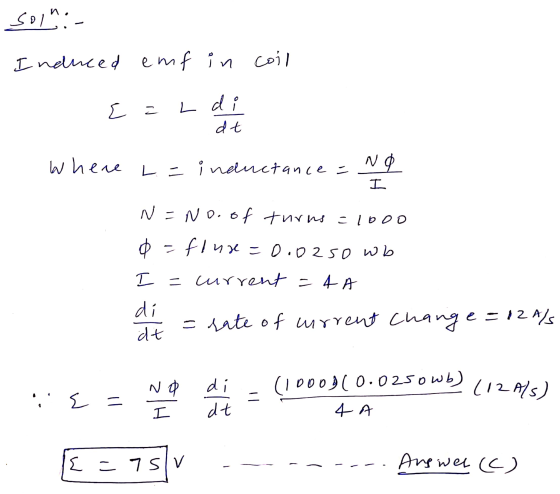

soin:- Induced emf in coil E = L di dt where L = inductance = NO I N = No.of turns=1000 o=flur=0.02so wb I = current = 4A d =

Answer 2

Similar Homework Help Questions

8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

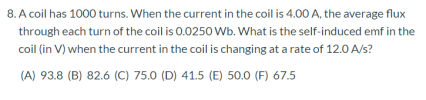

8. A coil has 1000 turns. When the current in the coil is 4.00 A, the average flux through each turn of the coil is 0.0250 Wb. What is the self-induced emf in the coil (in V) when the current in the coil is changing at a rate of 12.0 A/s? (A) 93.8 (B) 82.6 (C) 75.0 (D) 41.5 (E) 50.0 (F) 67.5
8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

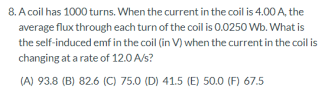

8. A coil has 1000 turns. When the current in the coil is 4.00 A, the average flux through each turn of the coil is 0.0250 Wb. What is the self-induced emf in the coil (in V) when the current in the coil is changing at a rate of 12.0 A/s? (A) 93.8 (B) 82.6 (C) 75.0 (D) 41.5 (E) 50.0 (F) 67.5
8. A coil has 1000 turns. When the current in the coil is 4.00 A, the...

8. A coil has 1000 turns. When the current in the coil is 4.00 A, the average flux through each turn of the coil is 0.0250 Wb. What is the self-induced emf in the coil (in V) when the current in the coil is changing at a rate of 12.0 A/s? (A) 93.8 (B) 82.6 (C) 75.0 (D) 41.5 (E) 50.0 (F) 67.5 OA OB Ос OD OE OF

A coil has 460 turns and self-inductance 7.50 mH. The current in the coil varies with...

A coil has 460 turns and self-inductance 7.50 mH. The current in the coil varies with time according to i=(680mA)cos[πt/(0.0250s)]. What is the maximum emf induced in the coil? What is the maximum average flux through each turn of the coil? At t=0.0180 s, what is the magnitude of the induced emf?
10. A coil has 400 turns and self-inductance 4.80 mH. The current in the coil varies...

10. A coil has 400 turns and self-inductance 4.80 mH. The current in the coil varies with time according to i=(680mA)cos(att/0.0250s). (a) What is the maximum emf induced in the coil? (b) What is the maximum average flux through each turn of the coil? (c) At t= 0.0180 s, what is the magnitude of the induced emf?
At the instant when the current in an inductor is increasing at a rate of 0.063...

At the instant when the current in an inductor is increasing at a rate of 0.063 A/s, the magnitude of the self-induced emf is 0.0240 v. (a) What is the inductance of the inductor? (b) If the inductor is a solenoid with 275 turns, what is the average magnetic flux through each turn when the current is 0.850 A? Wb

A certain inductor is formed from a circular coil consisting of 10 turns of wire. When...

A certain inductor is formed from a circular coil consisting of 10 turns of wire. When a current of 2.5 A is sent through this coil, it experiences a total magnetic flux of 5 * 10^-7 Wb. a) What is the inductance of this coil? b) What magnetic energy does this inductor contain at this current? c) What is the magnitude of the self-induced EMF in the coil if current is reduced to 0 over 0.05 secs?
Exercise 30.12 - Enhanced - with Feedback Along, straight solenoid has 700 turns. When the current...

Exercise 30.12 - Enhanced - with Feedback Along, straight solenoid has 700 turns. When the current in the solenoid is 2.90 A, the average flux through each turn of the solenoid is 3.25 x 10-3 Wb. Part A What must be the magnitude of the rate of change of the current in order for the self-induced emf to equal 6.50 mV? Express your answer in milliamperes per second. ANSWER: die mA/s
When the current in a toroidal solenoid is changing at a rate of 0.0210 A/s ,...

When the current in a toroidal solenoid is changing at a rate of 0.0210 A/s , the magnitude of the induced emf is 12.6 mV . When the current equals 1.50 A , the average flux through each turn of the solenoid is 0.00441 Wb .How many turns does the solenoid have?

A solenoidal coil with 30 turns of wire is wound tightly around another coil with 350...

A solenoidal coil with 30 turns of wire is wound tightly around another coil with 350 turns. The inner solenoid is 23.0 cm long and has a Part A diameter of 2.10 cm. At a certain time, the current in the inner solenoid is 0.120 A and is increasing at a rate of 1800 A/s. For this time, calculate the average magnetic flux through each turn of the inner solenoid. Express your answer in webers. Vη ΑΣφ' Фв - Wb...
