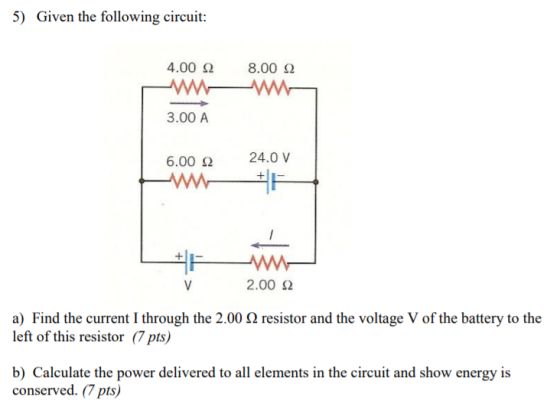

5) Given the following circuit: 4.00 12 8.00 22 3.00 A 6.00 22 24.0 V + V 2.00 2 a) Find the current I through the 2.00 12 resistor and the voltage V of the battery to the left of this resistor (7 pts) is b) Calculate the power delivered to all elements in the circuit and show energy conserved. (7 pts)
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 6.00 22 24.0 V +...
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 6.00 22 24.0 V + V 2.00 2 a) Find the current I through the 2.00 12 resistor and the voltage V of the battery to the left of this resistor (7 pts) is b) Calculate the power delivered to all elements in the circuit and show energy conserved. (7 pts)
Given the following circuit: a) Find the current I through the 2.00 Ω resistor and the...
Given the following circuit:
a) Find the current I through the 2.00 Ω resistor and the
voltage V of the battery to the left of this resistor
b) Calculate the power delivered to all elements in the circuit
and show energy is conserved.
4.00 0 8.00 12 W- 3.00 A 24.0V 6.00 12. M- # + 2.00 2..

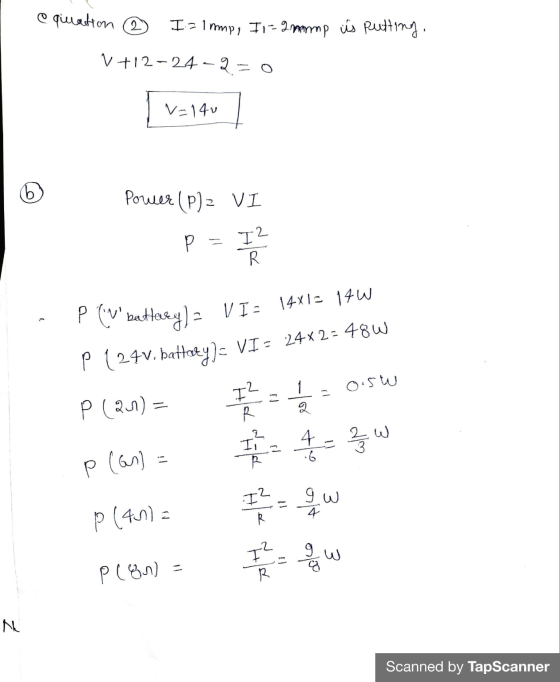

I have trouble understanding the Kirchoff Loop used here, could this be explained in detail with...
I have trouble understanding the Kirchoff Loop used here, could
this be explained in detail with the formulas used if any clearly
illustrated? Much will be appreciated, thanks!
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 24.0 V 6.00 2 Www +E V 2.00 12 a) Find the current I through the 2.00 22 resistor and the voltage V of the battery to the left of this resistor b) Calculate the power delivered to all elements in...
18. Calculate the power dissipated through the 3.002 resistor in the circuit below. 4.00 6.00 V 3.00 6.00 7.00 ww 8...
18. Calculate the power dissipated through the 3.002 resistor in the circuit below. 4.00 6.00 V 3.00 6.00 7.00 ww 8.00 ww- 9.00 V
18. Calculate the power dissipated through the 3.002 resistor in the circuit below. 4.00 6.00 V 3.00 6.00 7.00 ww 8.00 ww- 9.00 V
3) In the figure below, the magnetic flux through the loop shown increases according to the...
3) In the figure below, the magnetic flux through the loop shown increases according to the equation, 0-8-3r where is in webers and is in seconds: wa a) What is the induced voltage across the resistor atr=2 seconds? (5 pes) b) What is the polarity of the voltage across the resistor (Justify your answer (Spes) c) If the area of the entire closed loop is 14 m", what is the magnitude of the magnetic field at 2 seconds? (4 pes)...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
Consider the circuit shown in the figure. The terminal voltage of the 24.0-V battery is...
Consider the circuit shown in the figure. The terminal voltage of the 24.0-V battery is 21.2 V. The current in the circuit is 4.00 A. (Figure 1)Part AWhat is the internal resistance \(r\) of the battery?Part BWhat is the resistance \(R\) of the circuit resistor?
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference...
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a pot...
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a potential difference of 6.00 V. Which of the following is CLOSEST TO, EVEN IF NOT EQUAL TO, the current through R3? (A) 0.078A (B) 0.132 A (C) 0.276 A (D) 0.387 A 9. Ri 6V R2 R4
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the...
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 6.00 22 24.0 V + V 2.00 2 a) Find the current I through the 2.00 12 resistor and the voltage V of the battery to the left of this resistor (7 pts) is b) Calculate the power delivered to all elements in the circuit and show energy conserved. (7 pts)
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 6.00 22 24.0 V + V 2.00 2 a) Find the current I through the 2.00 12 resistor and the voltage V of the battery to the left of this resistor (7 pts) is b) Calculate the power delivered to all elements in the circuit and show energy conserved. (7 pts)
Given the following circuit:
a) Find the current I through the 2.00 Ω resistor and the
voltage V of the battery to the left of this resistor
b) Calculate the power delivered to all elements in the circuit
and show energy is conserved.
4.00 0 8.00 12 W- 3.00 A 24.0V 6.00 12. M- # + 2.00 2..
I have trouble understanding the Kirchoff Loop used here, could
this be explained in detail with the formulas used if any clearly
illustrated? Much will be appreciated, thanks!
5) Given the following circuit: 4.00 12 8.00 22 3.00 A 24.0 V 6.00 2 Www +E V 2.00 12 a) Find the current I through the 2.00 22 resistor and the voltage V of the battery to the left of this resistor b) Calculate the power delivered to all elements in...
18. Calculate the power dissipated through the 3.002 resistor in the circuit below. 4.00 6.00 V 3.00 6.00 7.00 ww 8.00 ww- 9.00 V
18. Calculate the power dissipated through the 3.002 resistor in the circuit below. 4.00 6.00 V 3.00 6.00 7.00 ww 8.00 ww- 9.00 V
3) In the figure below, the magnetic flux through the loop shown increases according to the equation, 0-8-3r where is in webers and is in seconds: wa a) What is the induced voltage across the resistor atr=2 seconds? (5 pes) b) What is the polarity of the voltage across the resistor (Justify your answer (Spes) c) If the area of the entire closed loop is 14 m", what is the magnitude of the magnetic field at 2 seconds? (4 pes)...
In the circuit below the voltage supplied by the battery is 24.0 V and the resistance of the resistors, R1, R2 and R3 are 4.0 Ω, 8.00 Ω and 20.0 Ω respectively, what is the current through the resistor R1? R, R2 Ra What is the current through the resistor R2? What is the current through the resistor R3?
Consider the circuit shown in the figure. The terminal voltage of the 24.0-V battery is 21.2 V. The current in the circuit is 4.00 A. (Figure 1)Part AWhat is the internal resistance \(r\) of the battery?Part BWhat is the resistance \(R\) of the circuit resistor?
1. In the circuit below, find (a) the current in each resistor, (b) the potential difference across each resistor, and (c) the power dissipated by each resistor. The power delivered by the battery equals the power dissipated by all the resistors. What is the power delivered by the battery? 3.0022 MA 6.00 v 2 2.00 4 .00 22 2.00 22
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the resistors in the circuit diagram below are Ri 1.002, R2 2.00 2, R3-3.00 2, and R4 4.00 Ω-The battery provides a potential difference of 6.00 V. Which of the following is CLOSEST TO, EVEN IF NOT EQUAL TO, the current through R3? (A) 0.078A (B) 0.132 A (C) 0.276 A (D) 0.387 A 9. Ri 6V R2 R4
(6 pts) Empirical and Quantitative Reasoning Assessment. The resistances of the...
