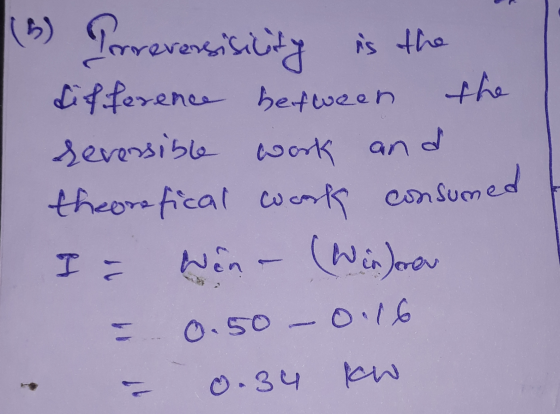

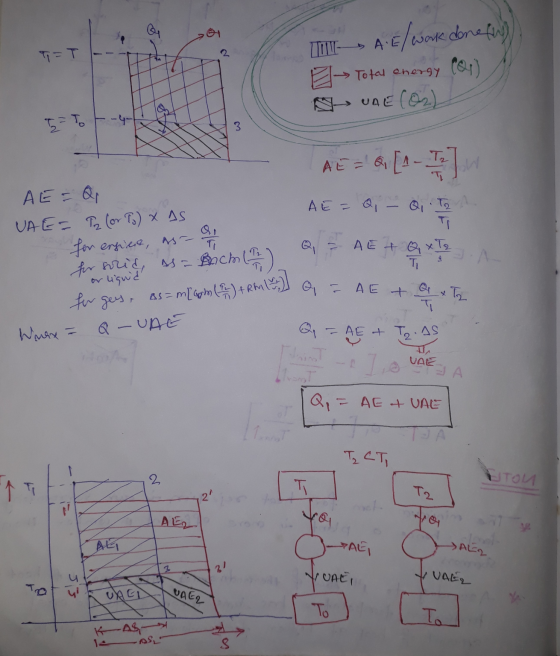

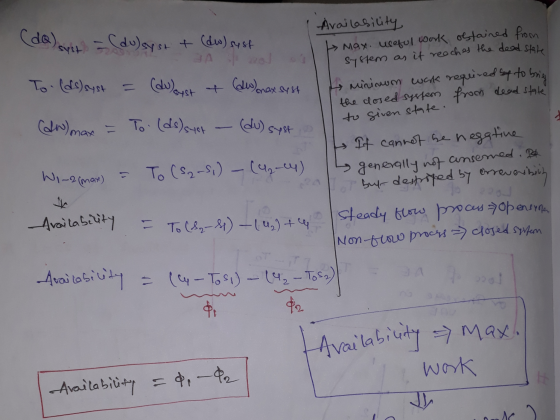

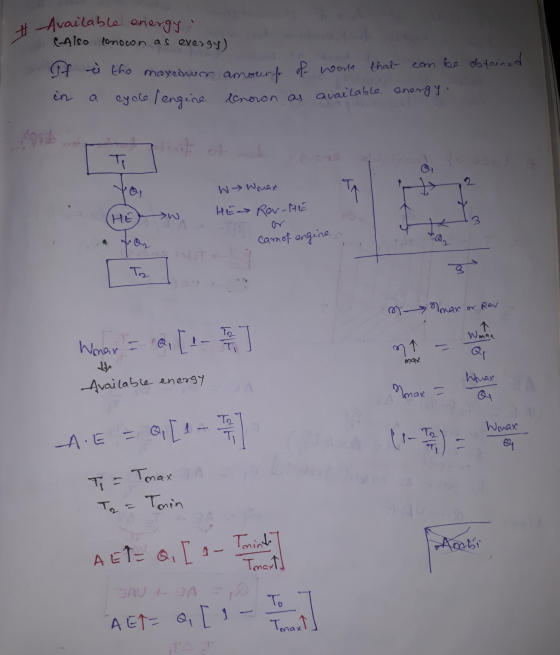

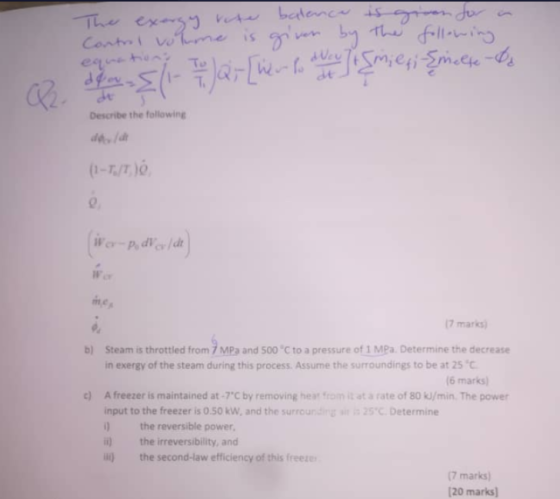

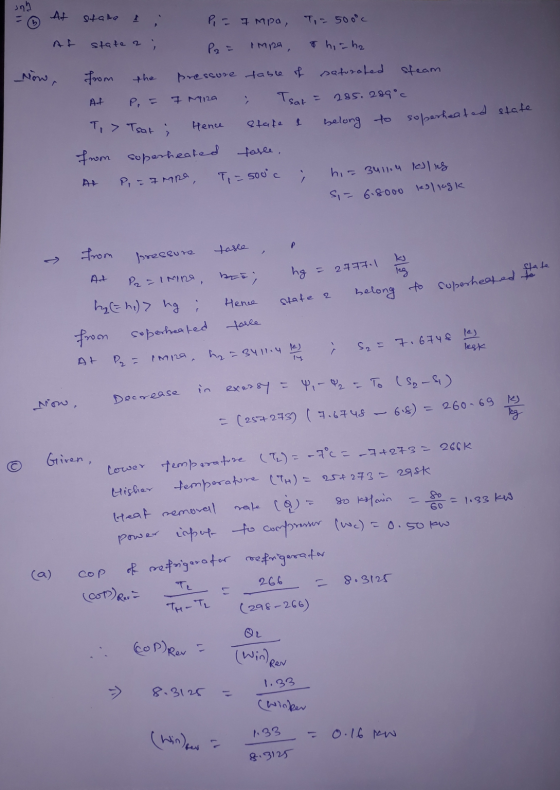

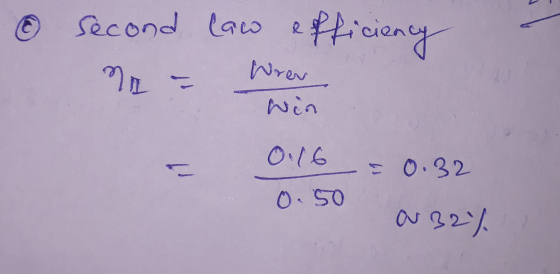

Control volume is given by the following The exergy rese batence is given for der /...
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s
Steam with the mass flow rate of 0.75 kg/s enters an adiabatic turbine steadily at 19 MPa, 600°C and 150 m/s, and leaves at 150 kPa and 350 m/s. The isentropic efficiency of the turbine is 85%. Neglect potential energy. (I) Determine the exit temperature of the steam, and its quality (if saturated mixture) (ii) Calculate the actual power output of the turbine, in kW (iii) Illustrate a T-s diagram with respect to saturation lines for the isentropic process by clearly indicating all pressure, temperature,...
A piston - cylinder device contains 0.15 kg of steam at 1 MPa and 320 degree...
A piston - cylinder device contains 0.15 kg of steam at 1 MPa and 320 degree C. The steam now expand to a final state of 150 kPa and 160 degree C. Energy losses via heat transfer from system to surroundings are estimated to be 3KJ, while the contact temperature with the surroundings is 25 degree C.Assuming: T0=25c and P0=100kPa,Determine: A: the available energy of the steam at the initial and final states B: the work done by the system...
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to th...
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to the steam in a furnace maintained at 800 K, and waste heat is rejected to the surroundings at 300 K. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the net work output, (b) the thermal efficiency...
How do i solve C??? Please details Steam enters a two stage steady state turbine at 8 MPa and 500 C. It expands in the first stage to a state of 2 MPa and 350°C. Steam is then reheated at constant...
How do i solve C??? Please details
Steam enters a two stage steady state turbine at 8 MPa and 500 C. It expands in the first stage to a state of 2 MPa and 350°C. Steam is then reheated at constant pressure to a temperature of 500°C before it enters the second stage, where it exits at 30 kPa and a quality of 98%. The net power output of the turbine is 3 MW Assume the surroundings to be at...
Consider a reheat-regenerative vapor power cycle with two feedwater heaters, a closed feedwater heater and an...
Consider a reheat-regenerative vapor power cycle with two feedwater heaters, a closed feedwater heater and an open feedwater heater. Steam enters the first turbine at 8.0 MPa, 480 C and expands to 0.7 MPa. The steam is reheated to 440°C before entering the second turbine, where it expands to the condenser pressure of 0.008 MPa Steam is extracted from the first turbine at 2 MPa and fed to the closed feedwater heater. Feedwater leaves the closed heater at 205 C...
Boiler P=8000 kPa, T =73°C U=305 H=306 kJ/kg P=8 MPa, T=400°C U=2867 H=3142 kJ/kg S =...
Boiler P=8000 kPa, T =73°C U=305 H=306 kJ/kg P=8 MPa, T=400°C U=2867 H=3142 kJ/kg S = 6.37 kJ/kg.K) W pump Pump Qboller Turbine Wurm Condenser Sat. liq., P=30 kPa U=289 H=290 kJ/kg P = 30 kPa, x = 0.90, U'= 289 H'= 290 UY= 2467 H'=2625 kJ/kg s'=0944 s'= 7.77 kJ/kg.K) Qcondenser For the steam power plant shown above, if the mass flow rate of the steam is 10 kg/s and the surrounding temperature is 25°C, determine the following: a....
Steam in a 2 m rigid sealed vessel is initially at P,=1 MPa, T.-500 °C. The...
Steam in a 2 m rigid sealed vessel is initially at P,=1 MPa, T.-500 °C. The steam undergoes an isochorie process until the final pressure P2-200 kPa. The specific internal energy and the specific entropy at state 2 are respectively u21092.5 kJ/kg and s2- 3.198 kJ/kg-K. 1 Tsing your stram tahle read the values of the following properties: 4. Compute the mass of steam in the vessel in kg 5. For the system, compute the specific exergy change as, A0-01-02...
Q1 a) Company A designed a heat pump to supply heat into a library in Canada during...
Q1
a) Company A designed a heat pump to
supply heat into a library in Canada during
winter, so that the library can maintain to be at 20°C. The heat
pump utilizes
12,000 L/min of Refrigerant-134a as the working fluid and absorb
heat from an
industrial water stream. The water stream enters the evaporator at
50°C and exits
at 25°C. The refrigerant enters the evaporator at 10°C with 90%
moisture content
and leaves at 20°C. There is no pressure drop in...
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to t...
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to the cooling water. A real cycle might cascade the energy down to a lower temperature cycle to utilise some of this exergy (regeneration). It might also use the heat to execute an industrial process (cogeneration). The cycle described below does both! inSeam generator Turbine 1.5 bar H20 cycle To industrial process H2OR-134a heat exchanger Turbine Refrigerant cycle R-134a cycle Pump Condenser Pump Return...
ANSWER PLEASE PROBLEM #2 (68 pts.) Steam at 200 psia, 600°F (State 1) enters an adiabatic...
ANSWER PLEASE
PROBLEM #2 (68 pts.) Steam at 200 psia, 600°F (State 1) enters an adiabatic turbine cperating at steady state with a mass flow rate of 16.5 lbm/min and exits at 15 psia, 240°F (State 2), Neglecting the changes in kinetic and potential energies and assuming the surroundings to be at T.- 537 R. Determine: a) the actual power output, in Btu/min. b) the reversible (or maximum) power output, in Btu/min. c) the rate of exergy destruction, in Btu/min....
Consider a steam power plant operating on the simple ideal Rankine cycle. Steam enters the turbine at 5 MPa and 500°C and is condensed in the condenser at a pressure of 50 kPa. Heat is supplied to the steam in a furnace maintained at 800 K, and waste heat is rejected to the surroundings at 300 K. Show the cycle on a T-s diagram with respect to saturation lines, and determine (a) the net work output, (b) the thermal efficiency...
How do i solve C??? Please details
Steam enters a two stage steady state turbine at 8 MPa and 500 C. It expands in the first stage to a state of 2 MPa and 350°C. Steam is then reheated at constant pressure to a temperature of 500°C before it enters the second stage, where it exits at 30 kPa and a quality of 98%. The net power output of the turbine is 3 MW Assume the surroundings to be at...
Consider a reheat-regenerative vapor power cycle with two feedwater heaters, a closed feedwater heater and an open feedwater heater. Steam enters the first turbine at 8.0 MPa, 480 C and expands to 0.7 MPa. The steam is reheated to 440°C before entering the second turbine, where it expands to the condenser pressure of 0.008 MPa Steam is extracted from the first turbine at 2 MPa and fed to the closed feedwater heater. Feedwater leaves the closed heater at 205 C...
Boiler P=8000 kPa, T =73°C U=305 H=306 kJ/kg P=8 MPa, T=400°C U=2867 H=3142 kJ/kg S = 6.37 kJ/kg.K) W pump Pump Qboller Turbine Wurm Condenser Sat. liq., P=30 kPa U=289 H=290 kJ/kg P = 30 kPa, x = 0.90, U'= 289 H'= 290 UY= 2467 H'=2625 kJ/kg s'=0944 s'= 7.77 kJ/kg.K) Qcondenser For the steam power plant shown above, if the mass flow rate of the steam is 10 kg/s and the surrounding temperature is 25°C, determine the following: a....
Steam in a 2 m rigid sealed vessel is initially at P,=1 MPa, T.-500 °C. The steam undergoes an isochorie process until the final pressure P2-200 kPa. The specific internal energy and the specific entropy at state 2 are respectively u21092.5 kJ/kg and s2- 3.198 kJ/kg-K. 1 Tsing your stram tahle read the values of the following properties: 4. Compute the mass of steam in the vessel in kg 5. For the system, compute the specific exergy change as, A0-01-02...
Q1
a) Company A designed a heat pump to
supply heat into a library in Canada during
winter, so that the library can maintain to be at 20°C. The heat
pump utilizes
12,000 L/min of Refrigerant-134a as the working fluid and absorb
heat from an
industrial water stream. The water stream enters the evaporator at
50°C and exits
at 25°C. The refrigerant enters the evaporator at 10°C with 90%
moisture content
and leaves at 20°C. There is no pressure drop in...
Problem #2 (30 The steam cycle described in Problem #1 wasted a significant amount of exergy to the cooling water. A real cycle might cascade the energy down to a lower temperature cycle to utilise some of this exergy (regeneration). It might also use the heat to execute an industrial process (cogeneration). The cycle described below does both! inSeam generator Turbine 1.5 bar H20 cycle To industrial process H2OR-134a heat exchanger Turbine Refrigerant cycle R-134a cycle Pump Condenser Pump Return...
ANSWER PLEASE
PROBLEM #2 (68 pts.) Steam at 200 psia, 600°F (State 1) enters an adiabatic turbine cperating at steady state with a mass flow rate of 16.5 lbm/min and exits at 15 psia, 240°F (State 2), Neglecting the changes in kinetic and potential energies and assuming the surroundings to be at T.- 537 R. Determine: a) the actual power output, in Btu/min. b) the reversible (or maximum) power output, in Btu/min. c) the rate of exergy destruction, in Btu/min....
