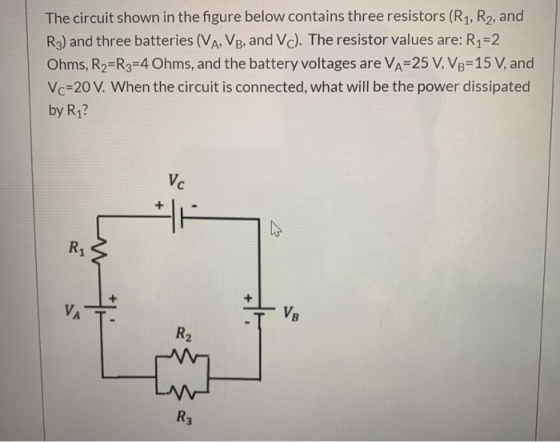

The circuit shown in the figure below contains three resistors (R1, R2, and R3) and three batteries (VA, VB, and Vc). The res

a. 1.25w
b. 2.0 w
c. 12.5 w
d. 6.25 w
e. 8.13 w
science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

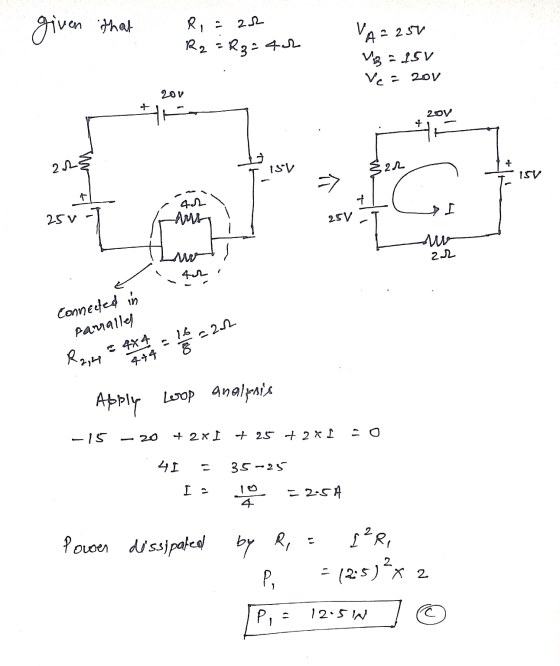

Ri 22 given that R2 = Rg=402 VA-250 V3 = 15V Vec 201 20v 20V + 2125 15V San -> 4h f I 250 Aur 25V 22 Connected in Parallel 4X

0 0
