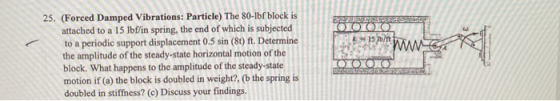

can someone help me with these 2 questions? R15 / ww 25. (Forced Damped Vibrations: Particle)...

Question

Question

can someone help me with these 2 questions?

engineering Mechanical-Engineering

Answer 1

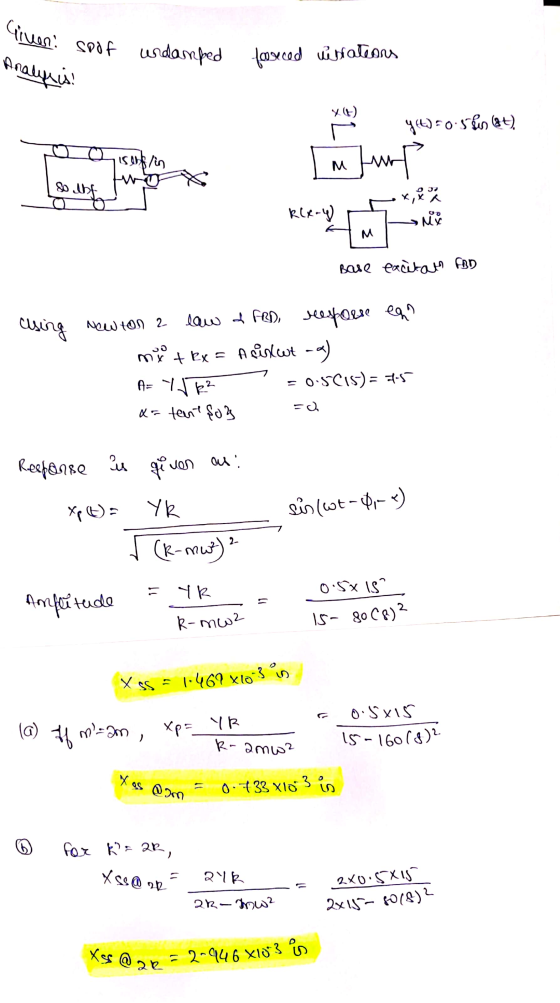

Answer #1

c) Discussion:

As we can observe that increasing the mass of the black decreases the amplitude of vibration in the block. Therefore if we wish to have a smooth operation we should go for higher mass. However this will increase the energy consumption of the process.
Now on doubling the spring constant the amplitude of vibration almost got doubled. This means the spring should be chosen with the least spring constant to prevent large oscillations.

Comments:

As experts we are supposed to answer only one question per post. Since you didn't mention which question you wanted I followed the HOMEWORKLIB RULES and answered the first one for you. If you need help with the remaining questions as well you will have to mention it in the comments.
Feel free to ask for any help in the comment section.
Please rate my work.
