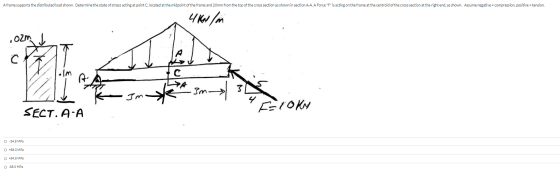

Aframe supports the distributed load shown. Determine the state of stress acting at point C, located at the midpoint of the frame and 20mm from the top of the cross section as shown in section A-A. A Force "F" is acting on the frame at the centroid of the cross section at the right end, as shown. Assume negative = compression, positive = tension.

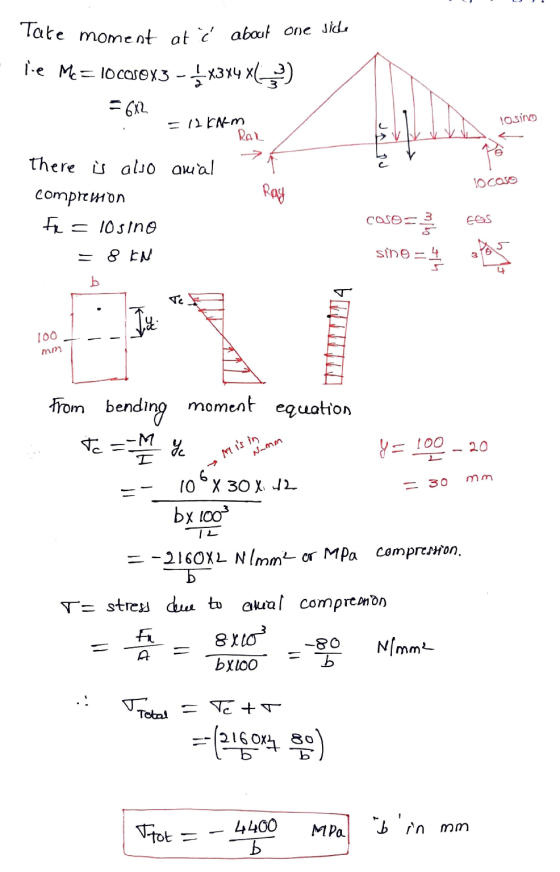

THE VALUE OF b IS NOT GIVEN. SO I HAVE DERIVED THE STRESS EQUATION IN TERMS OF b. HOWEVER FROM OPTIONS AND LITTLE LOGICAL THINKING, WE CAN GUESS b =50 mm AND STRESS WILL BE -88 MPa.
HENCE OUR ANSWER CAN BE LAST OPTION.
THANK YOU VERY MUCH!!
Aframe supports the distributed load shown. Determine the state of stress acting at point C, located...
The frame supports a
distributed load and a tension force of P=195 lb, as shown
in the figure below.Determine the resultant internal loadings acting on the cross
sections at point F of the frame.Determine the resultant internal loadings acting on the cross
sections at point G of the frame.
The frame supports a distributed load and a tension force of P 125 lb, as shown in the figure below 4 ft 75 lb/ft 4 2 ft 2 ft l ft 30° Part A Determine the resultant internal loadings acting on the cross sections at point D of the frame. Express your answers, separated by commas, to three significant figures. lb, lb, lb ft SubmitP Ans An X Incorrect; Try Again; 2 attempts remaining Part B Determine the resultant internal...
The frame supports a distributed load and a tension force of P = 140 lb, as shown in the figure below. 40 75 1b/ D 2 ft В Е -20 If In If 30° Part A Determine the resultant internal loadings acting on the cross sections at point F of the frame. Express your answers, separated by commas, to three significant figures. 190 AED 11 vec ? Ne=, Vp =, MF lb, lb, lb-ft Part B Determine the resultant internal...
Problem 4: The frame with cross-section given supports the distributed load as shown. Answer the following: A. Support reactions at A and the force in member BC B. Find the Shear and moment equations for AD section [V(x) and M(x)] and plot the shear and moment diagrams. C. State of stress at D D. State of stress at E 4 kN/m D 20 mm 60 mm 20 mm BA E 5 m 50 mm |-1.5 m -1.5 m --- 3...
The beam supports the distributed load with Wmax = 6.0 kN/m as shown. The reactions at the supports A and B are vertical. Part A Determine the resultant internal loadings acting on the cross section at point C.
The 1.25" diameter steel rod is subjected to the load shown. Determine the state of stress at point D (located at the top of the rod and on the z-axis), determine the associated strains. Let F = 12 lb and 0 = 45°. The force F is acting in a plane parallel to the x-y plane. Shear modulus of elasticity: G = 11.2 x 106 psi Young's modulus: E = 29.0 x 106 psi 1.25 in 3 in.
The frame supports a distributed load and a tension force of P = 120 lb, as shown in the figure below. 75 lb/ft 7 7 7 7 7 7 e DB -2 ft -2 ft Part A Determine the resultant internal loadings acting on the cross sections at point D of the frame. Express your answers, separated by commas, to three significant figures. VALO vecmo e ? ND= Vp=, Mp= lb, lb, lb-ft Submit Previous Answers Request Answer X Incorrect;...
Problem 1 The continuous beam and post system shown below supports a 10 kip vertical load and a 5 kip horizontal load. Determine the combined normal stress at point "A" and point "B" State if the points are in tension or compression 21 4' -FINED EASE 12"
Problem 1 The continuous beam and post system shown below supports a 10 kip vertical load and a 5 kip horizontal load. Determine the combined normal stress at point "A" and point "B"...
PROBLEM 2: 40% A 6 kN force is exerted on the frame which has the T cross sectio analyze the states of stress at a section taken at 800 mm from the point of n shown below. It is required to 1. For the given T cross section, find the centroid and the area moment of inertia I,. 2. Draw the free body diagram of the free end of the frame and determine the interna loadings at the centroid of...
