The built-up shaft consists of a pipe BC and solid rod CD.The pipe has an inner...

Question

Question

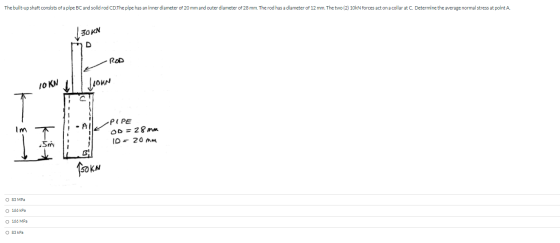

The built-up shaft consists of a pipe BC and solid rod CD.The pipe has an inner diameter of 20 mm and outer diameter of 28 mm

engineering Mechanical-Engineering

Answer 1

Answer #1

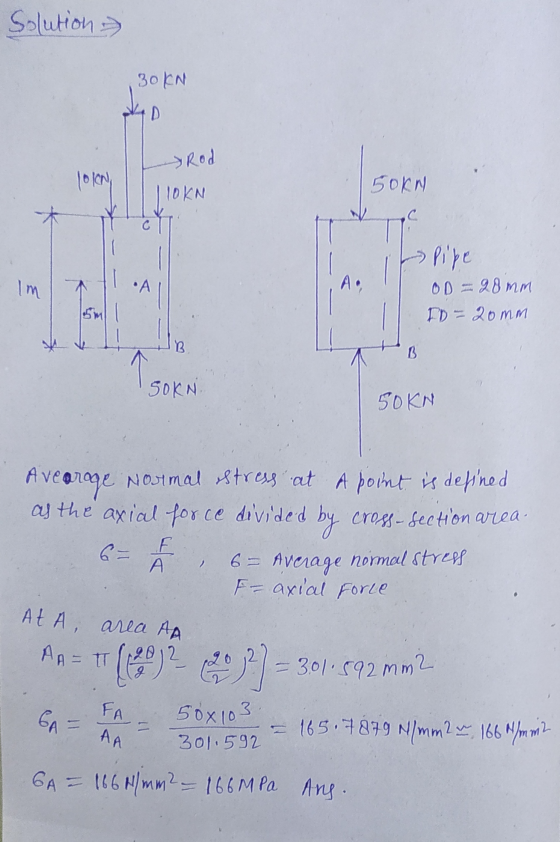

Solution 30KN D Rod lolong 50KN LOKN C Im Pipe OD = 28mm ID = 20 mm B B A SOKN 50KN Avearoge nos mal stress at a point is def

Answer 2
