A magnet produces a uniform field of 0.80 T over a square region 0.2 m x...

Question

Question

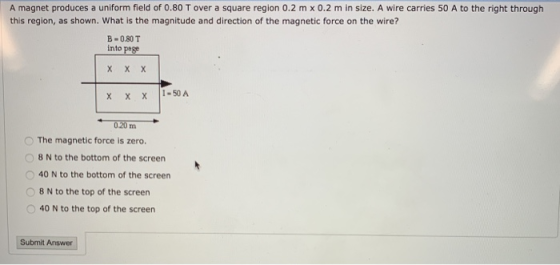

A magnet produces a uniform field of 0.80 T over a square region 0.2 m x 0.2 m in size. A wire carries 50 A to the right thro

science physics

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

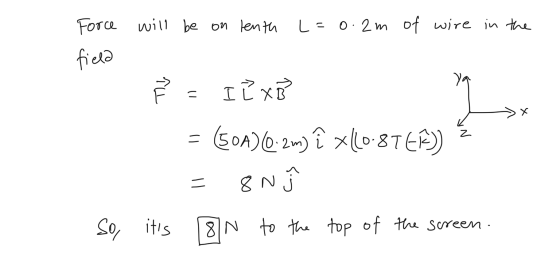

Use equation for magnetic force on a current carrying wire and properties of vector cross product to find the required magnitude and direction of force as shown below
Force will be on lenth L=0.2m of wire in the field Ya în I Z XB u I Z = (501) 6-2m) î x[0-876) 8N - So its 80 to the top of

Add a comment
