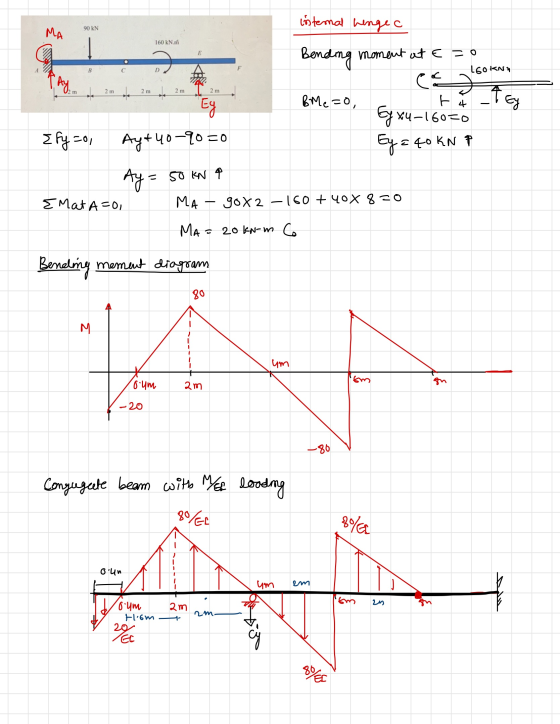

![Mat hinge E=0, cyx4 - [1x2x 80 x 212 + [ - x2 x 80 ] x [277] - [£x 89ecX2Jx(4+ 2021 +(x04X22 1x[8-047 = 0 (*):6*80 JxC6+6 ] E](http://img.homeworklib.com/questions/397eb8f0-f251-11ea-a762-67427015ffe6.png?x-oss-process=image/resize,w_560)
Add Answer to:
EI constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection...
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F,...

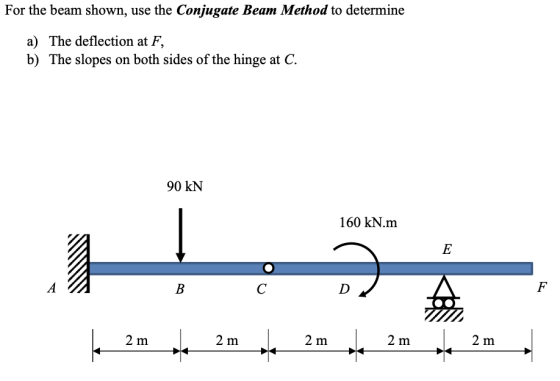

For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m E 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F,...
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m m 2 m 2 m 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F,...
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m 2 m 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F,...
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m * 2 m + 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F,...
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B D F A 2 m ! 2 m 2 m 2 m + 2 m + 1 1 EI - Constant
PLEASE FAST I HAVE 15 MINS LEFT !! Question 2: [50 Marks] For the beam shown,...
PLEASE FAST I HAVE 15 MINS LEFT !!
Question 2: [50 Marks] For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B C D F 2 m 2 m 2 m 2 m 2 m EI = Constant
Solve Problem by the conjugate beam method Compute the deflection and the slopes on both sides...
Solve Problem by the conjugate beam method Compute the deflection and the slopes on both sides of the hinge at B in Figure P7.36. El is constant. Figure P7.36: 20 KN 40 KN с A F B D E k 5 m *5m 5m - 5 m 5 m
Use the Conjugate Beam Method to compute the slope and deflection at points B and C...
Use the Conjugate Beam Method to compute the slope and
deflection at points B and C for the beam given below. EI =
constant. Express answers as positive quantities with correct units
in the numerator terms, and with appropriate directions
Problem 1. Use the Conjugate Beam Method to compute the slope and deflection at points B and C for the beam given below. El constant. Express answers as positive quantities with correct units in the numerator terms, and with appropriate...
Use the conjugate-beam method and determine the slope just to the left and just to the right of the pin at B. Also, determine the deflection at D. Assume the beam is fixed supported at A, and that C is a roller. EI is constant.
Use the conjugate-beam method and determine the slope just to the left and just tothe right of the pin at B. Also, determine the deflection at D. Assume the beam isfixed supported at A, and that C is a roller. EI is constant.
Q5: Using force method, determine the reactions of the supports for the beam shown in Figure...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m E 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m m 2 m 2 m 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m 2 m 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B с D F 2 m 2 m 2 m * 2 m + 2 m EI = Constant
For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B D F A 2 m ! 2 m 2 m 2 m + 2 m + 1 1 EI - Constant
PLEASE FAST I HAVE 15 MINS LEFT !!
Question 2: [50 Marks] For the beam shown, use the Conjugate Beam Method to determine a) The deflection at F, b) The slopes on both sides of the hinge at C. 90 KN 160 kN.m E B C D F 2 m 2 m 2 m 2 m 2 m EI = Constant
Solve Problem by the conjugate beam method Compute the deflection and the slopes on both sides of the hinge at B in Figure P7.36. El is constant. Figure P7.36: 20 KN 40 KN с A F B D E k 5 m *5m 5m - 5 m 5 m
Use the Conjugate Beam Method to compute the slope and
deflection at points B and C for the beam given below. EI =
constant. Express answers as positive quantities with correct units
in the numerator terms, and with appropriate directions
Problem 1. Use the Conjugate Beam Method to compute the slope and deflection at points B and C for the beam given below. El constant. Express answers as positive quantities with correct units in the numerator terms, and with appropriate...
Q5: Using force method, determine the reactions of the
supports for the beam shown in Figure (5). Then draw shear and
bending moment diagrams for the beam. EI is constant. Use conjugate
beam method to determine deflections.
I need it in 30min or 1 h
6 m 50 KN 200 kN.m 22 А В. С 9 m to 3m
