a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back...
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature...
--> XCIO DO ay Explain the methods that can be adopted to increase the thermal emciency or a vapor power cycle. You may use a 1-soigram to explain your reasons. b) A steam regenerative cycle shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C.After expanding isentropically in the 1 stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised...
I need help with this
ان المتفانوس a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400° C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to...
please help thermodynamics
a) Explain the methods that can be adopted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to explain your reasons. b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boller is supplied to the turbine at 8 MPa. 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where Its temperature...
al lain the methods that can be adapted to increase the thermal efficiency of a vapor power cycle. You may use a T-s diagram to plain your reasons Di Astean regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MO40 C. After expanding sentropically in the 14 stage turbine to a pressure of 1 MPa, steam is taken to the reheater where s temperature is raised back to...

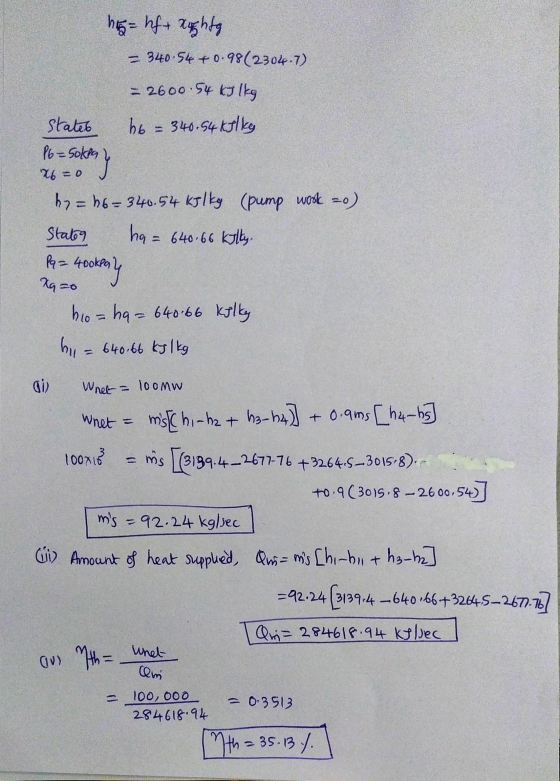

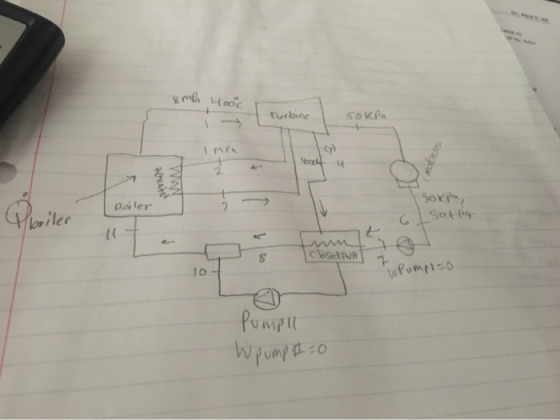

b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
b) A steam regenerative cycle, shown below, is delivering 100 MW of power. Steam from the boiler is supplied to the turbine at 8 MPa, 400°C. After expanding isentropically in the 1st stage turbine to a pressure of 1 MPa, steam is taken to the reheater where its temperature is raised back to 400°C and supplied to the 2nd stage turbine. Expansion in the 2nd stage turbine is also isentropic to a pressure of 400 kPa, where a fraction (y...
P8-29 A closed feedwater heater is used in a Rankine cycle Steam leaves the boiler at 20 MPa, 600°C. Between the high and low-pressure turbines, steam at 1 MPa is extracted and delivered to the closed feedwater heater. Feedwater exits the feedwater heater at 20 MPa and the saturation temperature of the 1-MPa steam; saturated liquid condensate is fed through a steam trap back to the condenser. Steam from the second- stage turbine enters the condenser at 10 kPa, and...
