Add Answer to:

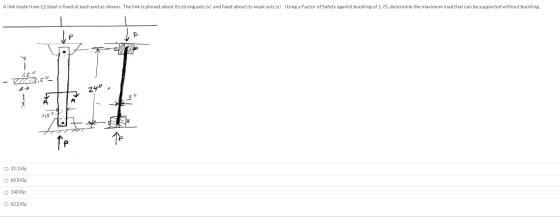

A link made from L2 steel is fixed at each end as shown. The link is...
A steel tool link in a forging machine is connected at its ends as shown. Determine...
A steel tool link in a forging machine is connected at its ends as shown. Determine the maximum load P it can carry without buckling. Use a factor of safety with respect to buckling of F.S.-1.75 Note from the figure on the left that the ends are pinned for buckling, whereas from the figure on the right the ends are fixed. E steel = 29 x 103 ksi and σ,-100 ksi -1.5in. -0.5 in 24 in.
Pinned End Fixed End 18 ft Brace Brace 18.ft 54 ft Brace Brace 18 ft Fixed...
Pinned End Fixed End 18 ft Brace Brace 18.ft 54 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling Strong-axis buckling 0.5 inc Cross-section 0.5 inch 3 5 inches 0.5 inch 0.5 inch 1 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia ly. 3. Calculate the critical...
Pinned End LILIL Fixed End 18 ft Brace | Brace 18 ft 54 ft Brace|||Brace 18...
Pinned End LILIL Fixed End 18 ft Brace | Brace 18 ft 54 ft Brace|||Brace 18 ft Fixed End Pinned End I Cross-section Weak-axis buckling Strong-axis buckling 0.5 inch 1 5 inches 0.5 inch I 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia Iy. 3. Calculate the critical...
please do all 5 parts for getting a like Pinned End Fixed End 18 ft Brace|Brace...
please do all 5 parts for getting a
like
Pinned End Fixed End 18 ft Brace|Brace 18 ft 54 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling H Strong-axis buckling Cross-section 0.5 inch 1 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment...
Pinned End Fixed End 16 ft Brace Brace 16 ft 50 ft Brace Brace 18 ft...
Pinned End Fixed End 16 ft Brace Brace 16 ft 50 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling H Strong-axis buckling Cross-section 0.5 inch 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia ly 3. Calculate the critical buckling stress...
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports...
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports at B and C to act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Member BC is made of A992 steel with a modulus of elasticity of 29,000 ksi and a yield strength of 50 ksi. a) Calculate the maximum allowable load, P, on the system (in kips) considering buckling and...
A long, slender structural steel LE - 29,000 ksil H558 x4x 1/4 shape (see Appendix B...
A long, slender structural steel LE - 29,000 ksil H558 x4x 1/4 shape (see Appendix B for its cross-sectional properties) is used as aL-41.00-ft-long column. The column is supported in the x direction at base A and pinned at ends A and C against translation in the y and z directions. Lateral support is provided to the column so that deflection in the x-2 plane is restrained at mid-height B; however, the column is free to deflect in the x-y...
3. Buckling.(10pts) The A-36-steel W12x 50column is fixed at its base. Its top is constrained so...
3. Buckling.(10pts) The A-36-steel W12x 50column is fixed at its base. Its top is constrained so that it cannot move along the x-x axis but is free to rotate about and move along the y-y axis. Determine the allowable centric load the column can support if the safety factor is 2. Data: A-1Sin', 1, 56in', 1, 394in 24 ft
Q4. Figure Q4 shows a steel column that pinned on top and fixed at the base....
Q4. Figure Q4 shows a steel column that pinned on top and fixed at the base. The column is restrained by steel beams about its x-axis and y-axis on the top of the column. The radius of gyrations of the column about x-axis is 137 mm and y-axis is 77.8 mm. The Modulus Elasticity of the column is 200 x10 kPa. (i) Calculate the moment of inertia of the column on x axis and y axis. (17 marks) (ii) Find...
A steel tool link in a forging machine is connected at its ends as shown. Determine the maximum load P it can carry without buckling. Use a factor of safety with respect to buckling of F.S.-1.75 Note from the figure on the left that the ends are pinned for buckling, whereas from the figure on the right the ends are fixed. E steel = 29 x 103 ksi and σ,-100 ksi -1.5in. -0.5 in 24 in.
Pinned End Fixed End 18 ft Brace Brace 18.ft 54 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling Strong-axis buckling 0.5 inc Cross-section 0.5 inch 3 5 inches 0.5 inch 0.5 inch 1 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia ly. 3. Calculate the critical...
Pinned End LILIL Fixed End 18 ft Brace | Brace 18 ft 54 ft Brace|||Brace 18 ft Fixed End Pinned End I Cross-section Weak-axis buckling Strong-axis buckling 0.5 inch 1 5 inches 0.5 inch I 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia Iy. 3. Calculate the critical...
please do all 5 parts for getting a
like
Pinned End Fixed End 18 ft Brace|Brace 18 ft 54 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling H Strong-axis buckling Cross-section 0.5 inch 1 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment...
Pinned End Fixed End 16 ft Brace Brace 16 ft 50 ft Brace Brace 18 ft Fixed End Pinned End I Weak-axis buckling H Strong-axis buckling Cross-section 0.5 inch 5 inches 0.5 inch 0.5 inch 5 inches A steel column (E = 29,000 ksi) has the cross-section indicated and is supported and braced as shown. Complete the following: 1. Calculate the strong-axis moment of inertia Ix. 2. Calculate the weak-axis moment of inertia ly 3. Calculate the critical buckling stress...
2) The beam shown is supported by steel member BC as shown. Due to the forked ends on the member, consider the supports at B and C to act as pins for x-x axis buckling and as fixed supports for y-y axis buckling. Member BC is made of A992 steel with a modulus of elasticity of 29,000 ksi and a yield strength of 50 ksi. a) Calculate the maximum allowable load, P, on the system (in kips) considering buckling and...
A long, slender structural steel LE - 29,000 ksil H558 x4x 1/4 shape (see Appendix B for its cross-sectional properties) is used as aL-41.00-ft-long column. The column is supported in the x direction at base A and pinned at ends A and C against translation in the y and z directions. Lateral support is provided to the column so that deflection in the x-2 plane is restrained at mid-height B; however, the column is free to deflect in the x-y...
3. Buckling.(10pts) The A-36-steel W12x 50column is fixed at its base. Its top is constrained so that it cannot move along the x-x axis but is free to rotate about and move along the y-y axis. Determine the allowable centric load the column can support if the safety factor is 2. Data: A-1Sin', 1, 56in', 1, 394in 24 ft
Q4. Figure Q4 shows a steel column that pinned on top and fixed at the base. The column is restrained by steel beams about its x-axis and y-axis on the top of the column. The radius of gyrations of the column about x-axis is 137 mm and y-axis is 77.8 mm. The Modulus Elasticity of the column is 200 x10 kPa. (i) Calculate the moment of inertia of the column on x axis and y axis. (17 marks) (ii) Find...
