The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of...
The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of...

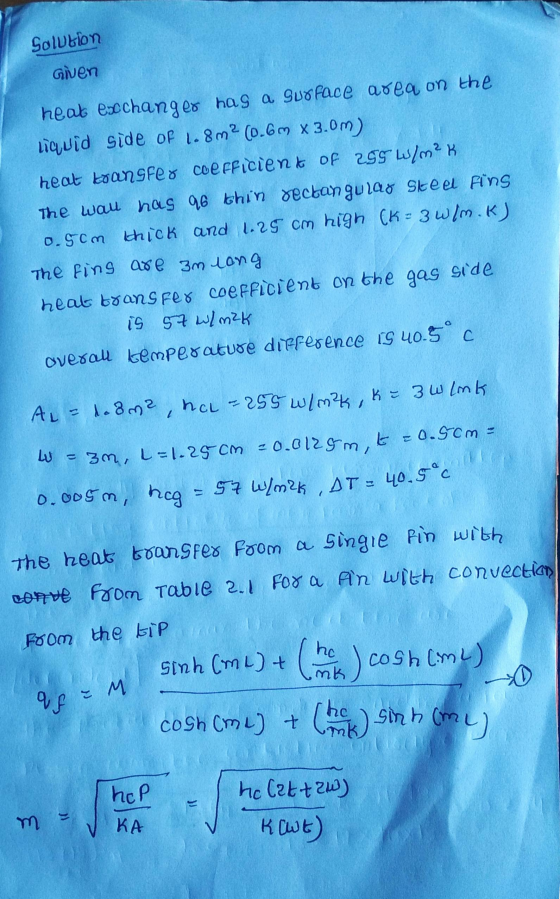

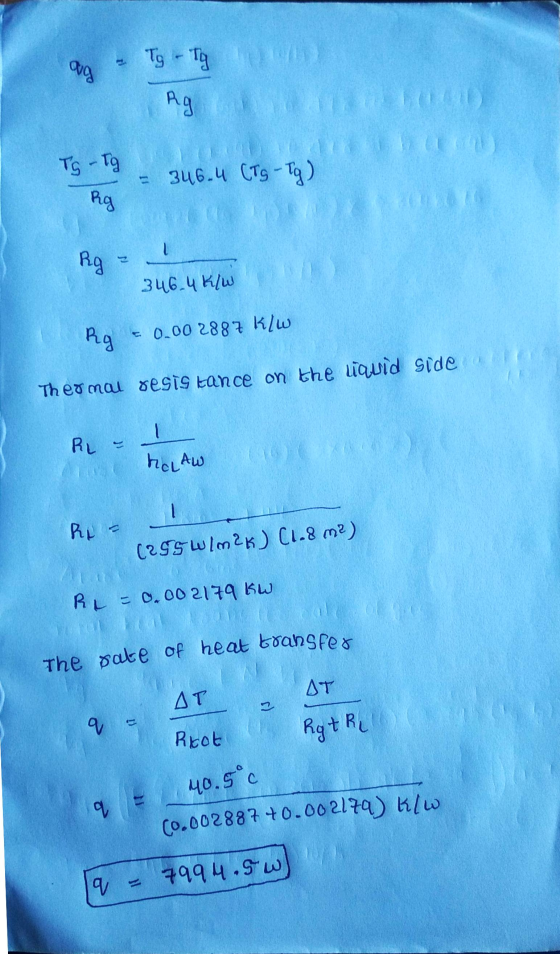

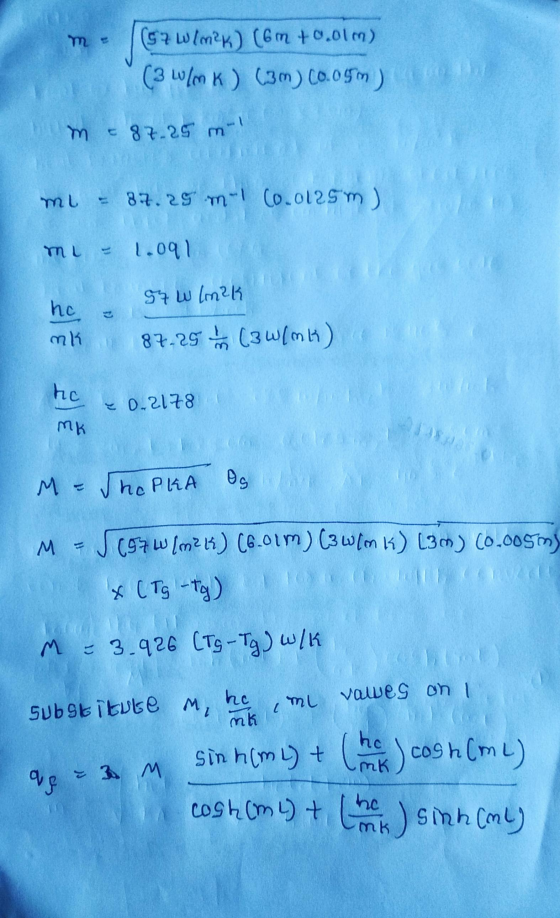

The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of 1.8 m2 (0.6 m 3.0 m) with a heat transfer coefficient of 255 W/m2K. On the other side of the heat exchanger wall a gas flows, and the wall has 96 thin rectangular steel fins 0.5 cm thick and 1.25 cm high (k = 3 W/m K) as shown in the figure below. The fins are 3 m long and the heat transfer coefficient...
Question 11 (15 points) The wall of a liquid-to-gas heat exchanger has a surface area on...
Question 11 (15 points) The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of 1.8 m2 (0.6 m * 3.0 m) with a heat transfer coefficient of 255 W/m2 K. On the other side of the heat exchanger wall a gas flows, and the wall has 96 thin rectangular steel fins 0.5 cm thick and 1.25 cm high (k = 3 W/m K) as shown in the figure below. The fins are 3 m...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
Cylindrical pin fins are used to increase the heat transfer from a flat plate of 100...
Cylindrical pin fins are used to increase the heat transfer from a flat plate of 100 mm × 100 mm. Four hundred fins are added to the plate. Each fin is 10-mm long, has a diameter of 2 mm, a thermal conductivity of 180 W/m∙K, and a fin efficiency of 90%. The plate is at Tb = 85°C and the ambient temperature is T∞ = 20°C. Convection occurs at the fin tips, and the convection heat transfer coefficient for the...
G4 Problem Statement: Circular fins of uniform cross section, with diameter of 14 mm and length 7...
G4 Problem Statement: Circular fins of uniform cross section, with diameter of 14 mm and length 70 mm are attached to the wall with surface temperature o C. The fin is made of material with thermal conductivity of 210 W/mk, and exposed to an ambient air condition of 24 °C and the convection heat transfer coefficient of 190 W/m2k. f 300 1- Plot the temperature variation for the following boundary conditions a- Infinitely long fin b- Adiabatic fin tip c-...
A heat exchanger is to be designed for the following specifications: Hot gas temperature, 1145...
A heat exchanger is to be designed for the following specifications: Hot gas temperature, 1145 oC Cold gas temperature, 45 oC Unit surface conductance on the hot side, 230 W/m2-K Unit surface conductance on the cold side, 290 W/m2-K Thermal conductivity of the metal wall, 115 W/m-K Find the maximum thickness of the metal wall between the hot gas and cold gas so that the maximum temperature of the wall does not exceed 545 oC.
The wall of a heat exchanger separates hot water at Tin 90 C with h." 80 w/m2.K from cold water a...
The wall of a heat exchanger separates hot water at Tin 90 C with h." 80 w/m2.K from cold water at Tout 10 C with h,ut 60 W/m2.K. The thermal conductivity of the heat exchanger is 180 W/m.K To extend the heat transfer area, two-dimensional ridges are machined on the cold side of the wall. This geometry causes non-uniform thermal stresses, which may become critical for crack initiation along the lines between two ridges. To predict thermal stresses, the temperature...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
The surface of a furnace wall is at a temperature of 1350oC. The outside wall temperature...
The surface of a furnace wall is at a temperature of 1350oC. The outside wall temperature is 42oC. The furnace wall is made of 25 cm of refractory material having a thermal conductivity of 1.4 W/moK. The outside wall is steel, 1 cm thick with thermal conductivity of 47 W/moK. Calculate the thickness in meters of brick to be installed in between the refractory material and steel if its thermal conductivity is 0.28 W/moK and the heat loss is not...
a rectangular fin (k= 235w/m*K) is attached to a wall and has a length of 5...
a rectangular fin (k= 235w/m*K) is attached to a wall and has a length of 5 cm, a width of 10 cm, and a thickness of 5 mm. the surface temperature of the wall is 350 degrees Celcius and the ambient air is 25 degrees celcius. what is the efficiency, the heat transfer rate, and the fin effectiveness? assume an adiabatic fin tip condition and a convection heat transfer coefficient of 154 W/m^2 * K
The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of 1.8 m2 (0.6 m 3.0 m) with a heat transfer coefficient of 255 W/m2K. On the other side of the heat exchanger wall a gas flows, and the wall has 96 thin rectangular steel fins 0.5 cm thick and 1.25 cm high (k = 3 W/m K) as shown in the figure below. The fins are 3 m long and the heat transfer coefficient...
Question 11 (15 points) The wall of a liquid-to-gas heat exchanger has a surface area on the liquid side of 1.8 m2 (0.6 m * 3.0 m) with a heat transfer coefficient of 255 W/m2 K. On the other side of the heat exchanger wall a gas flows, and the wall has 96 thin rectangular steel fins 0.5 cm thick and 1.25 cm high (k = 3 W/m K) as shown in the figure below. The fins are 3 m...
Heat is uniformly generated at the rate of 2x 10W/m* in a wall of thermal conductivity 25 W/m-K and thickness 60 mm. The wall is exposed to convection on both sides, with different heat transfer coefficients and temperatures as shown. There are straight rectangular fins on the right-hand side of the wall, with dimensions as shown (L =20 mm) and thermal conductivity of 250 W/m-K. What is the maximum temperature that will occur in the wall? L tt-2 mm k=25...
G4 Problem Statement: Circular fins of uniform cross section, with diameter of 14 mm and length 70 mm are attached to the wall with surface temperature o C. The fin is made of material with thermal conductivity of 210 W/mk, and exposed to an ambient air condition of 24 °C and the convection heat transfer coefficient of 190 W/m2k. f 300 1- Plot the temperature variation for the following boundary conditions a- Infinitely long fin b- Adiabatic fin tip c-...
The wall of a heat exchanger separates hot water at Tin 90 C with h." 80 w/m2.K from cold water at Tout 10 C with h,ut 60 W/m2.K. The thermal conductivity of the heat exchanger is 180 W/m.K To extend the heat transfer area, two-dimensional ridges are machined on the cold side of the wall. This geometry causes non-uniform thermal stresses, which may become critical for crack initiation along the lines between two ridges. To predict thermal stresses, the temperature...
2.) A plane wall is made of brick with a thermal conductivity of 1.5 W/(m-K). The wall is 20 cm thick and has a surface area of 10 m2. One side of the wall is exposed to outside air blowing against the wall resulting in a heat transfer coefficient of 20 W/(m2-K). The other side is exposed to an air-conditioned room with a convective heat transfer coefficient of 5 W/(m2-K). a. What are the thermal resistances corresponding to conduction through...
