You are asked to design a solenoid that will give a magnetic field of 0.10 T,...

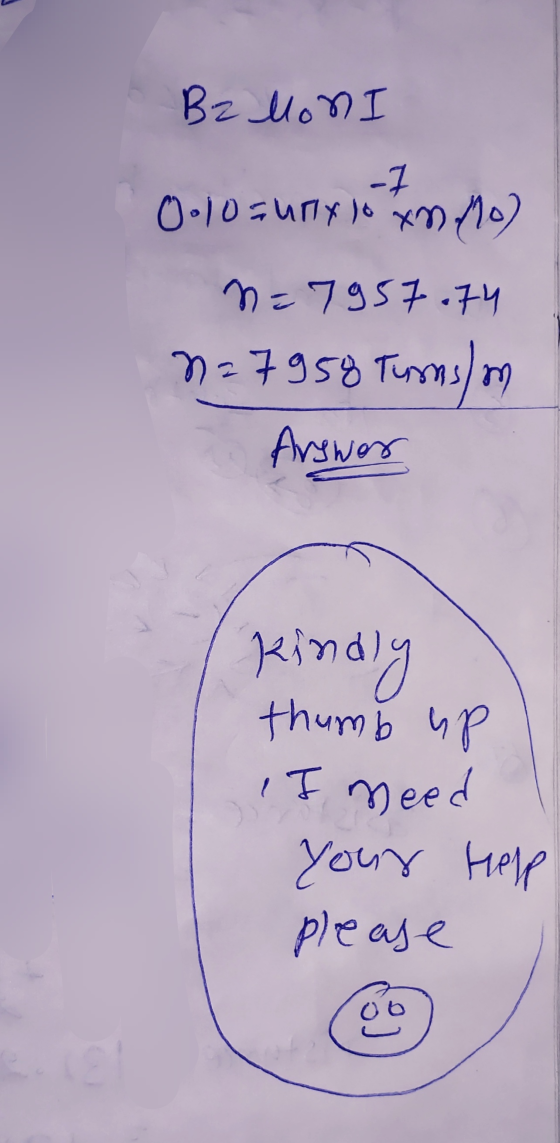

You are asked to design a solenoid that will give a magnetic field of 0.10 T, yet the current must not exceed 10.0 A. Find the number of turns per unit length that the solenoid should have.
Homework Answers
