how to do this drawing using autocad 3d modeling step by step

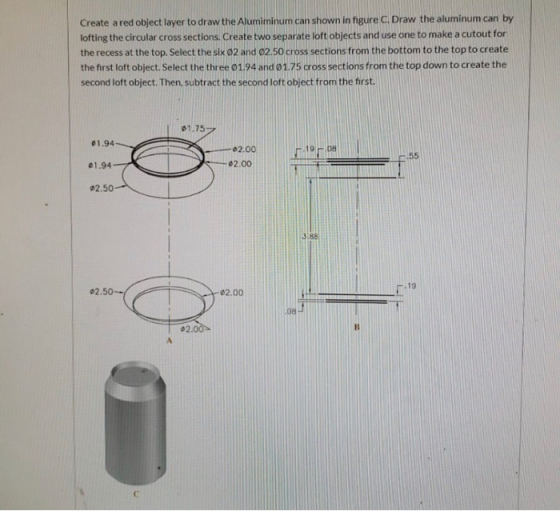

Create a red object layer to draw the Alumiminum can shown in figure C. Draw the aluminum can by lofting the circular cross sections. Create two separate loft objects and use one to make a cutout for the recess at the top. Select the six Ø2 and 02.50 cross sections from the bottom to the top to create the first loft object. Select the three 1.94 and 1.75 cross sections from the top down to create the second loft object. Then, subtract the second loft object from the first. 1.75 01.94 19 08 $2.00 2.00 01.94 $2.50 3.88 19 $2.50-- 02.00 LOB $2.00

Answer 1

Н

construction:

1. first you have to convert the 2d modeling into 3d modeling in the settings.

2.later draw the all circles with given dimensions for 3d body.

3.now draw lines either left or right side of the y-axis by connecting the circles you was drawn earlier. and then trim the circles.

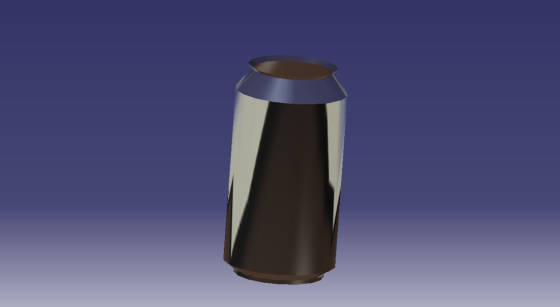

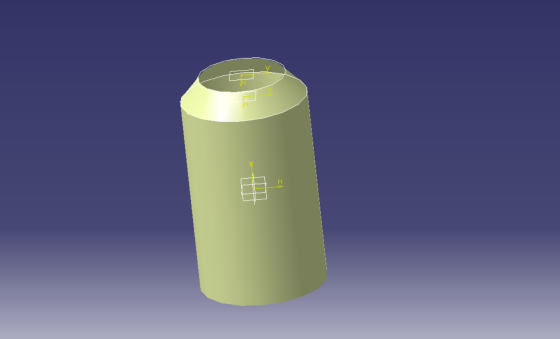

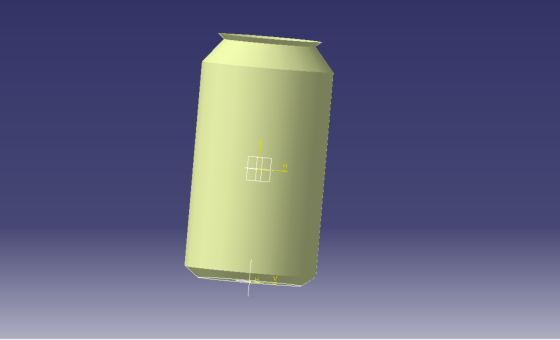

4.now use revolve command and select the drawn profile and make a revolve by selecting the y-axis.

5.then apply material aluminium material.

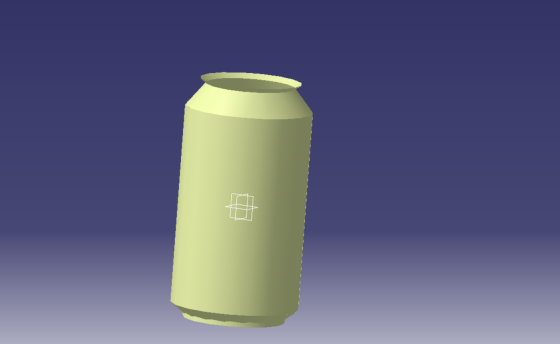

6.then, the required 3d body has been obtained.

if you having any doubts please comment. thankyou.
