Homework Answers
Ans:

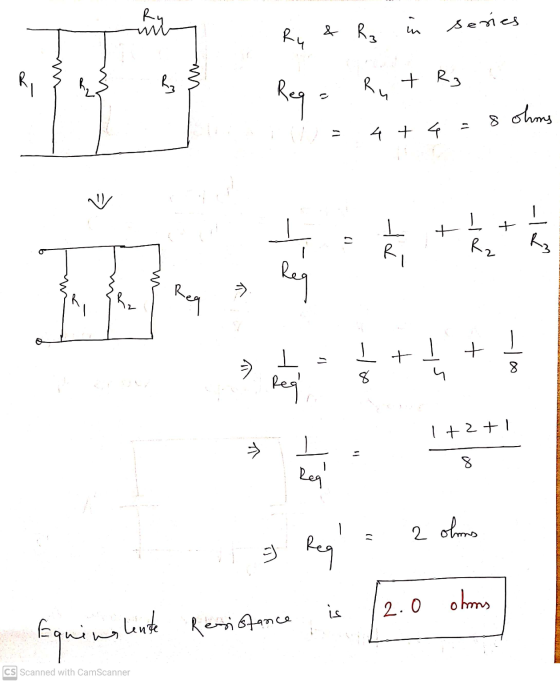

2.0 ohms
Add Answer to:
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...

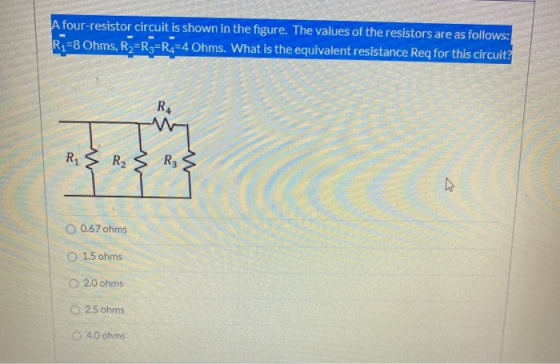

A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1-8 Ohms, R2-R3-R4-4 Ohms. What is the equivalent resistance Req for this circuit? RA R2 R3 0.67 ohms 1.5 ohms O 2.0 ohms O 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 -R₃ O 0.67 ohms O 1.5 ohms 2.0 ohms O 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 R3 0.67 ohms 1.5 ohms 2.0 ohms 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1-8 Ohms, R2=R3=R2=4 Ohms. What is the equivalent resistance Req for this circuit? R4 M my R₂3 R₂3 R₂ a O 0.67 ohms 1.5 ohms 0 2.0 ohms O 2.5 ohms O 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of
the resistors are as follows: R1=8 Ohms,
R2=R3=R4=4 Ohms. What is the
equivalent resistance Req for this circuit?
a) 0.67 ohms
b) 1.5 ohms
c) 2.0 ohms
d) 2.5 ohms
e) 4.0 ohms
R4 w m R1 R2 R3 -
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? R4 R1 ş R2 R3 0.67 ohms 1.5 ohms 2.0 ohms 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=3 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA M M R1 R2 R3 O 0.8 ohms O 1.5 ohms 3.14 ohms 0.67 ohms 2.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ri=6 Ohms, R2=R3=4 Ohms, R4=3 Ohms. What is the equivalent resistance Req for this circuit? R4 RA R₂ R3 O 0.8 ohms 0 2.0 ohms 03.14 ohms 0 4.5 ohms O 6.0 ohms A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ry=6 oms, R2=R3=4 Ohms, R4=3 Ohms. What is the equivalent resistance Req for this circuit?...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=4 Ohms, R2=R3=R4=3 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 R3 O 0.8 ohms O 1.33 ohms 0 3.5 ohms O 2.5 ohms 0.67 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows:...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Rq=3 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R₂ R₂ R₃ O 0.8 ohms 1.5 ohms O 3.14 ohms O 0.67 ohms O 2.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1-8 Ohms, R2-R3-R4-4 Ohms. What is the equivalent resistance Req for this circuit? RA R2 R3 0.67 ohms 1.5 ohms O 2.0 ohms O 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 -R₃ O 0.67 ohms O 1.5 ohms 2.0 ohms O 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 R3 0.67 ohms 1.5 ohms 2.0 ohms 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1-8 Ohms, R2=R3=R2=4 Ohms. What is the equivalent resistance Req for this circuit? R4 M my R₂3 R₂3 R₂ a O 0.67 ohms 1.5 ohms 0 2.0 ohms O 2.5 ohms O 4.0 ohms
A four-resistor circuit is shown in the figure. The values of
the resistors are as follows: R1=8 Ohms,
R2=R3=R4=4 Ohms. What is the
equivalent resistance Req for this circuit?
a) 0.67 ohms
b) 1.5 ohms
c) 2.0 ohms
d) 2.5 ohms
e) 4.0 ohms
R4 w m R1 R2 R3 -
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=8 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? R4 R1 ş R2 R3 0.67 ohms 1.5 ohms 2.0 ohms 2.5 ohms 4.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=3 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA M M R1 R2 R3 O 0.8 ohms O 1.5 ohms 3.14 ohms 0.67 ohms 2.0 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ri=6 Ohms, R2=R3=4 Ohms, R4=3 Ohms. What is the equivalent resistance Req for this circuit? R4 RA R₂ R3 O 0.8 ohms 0 2.0 ohms 03.14 ohms 0 4.5 ohms O 6.0 ohms A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Ry=6 oms, R2=R3=4 Ohms, R4=3 Ohms. What is the equivalent resistance Req for this circuit?...
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: R1=4 Ohms, R2=R3=R4=3 Ohms. What is the equivalent resistance Req for this circuit? RA R1 R2 R3 O 0.8 ohms O 1.33 ohms 0 3.5 ohms O 2.5 ohms 0.67 ohms
A four-resistor circuit is shown in the figure. The values of the resistors are as follows: Rq=3 Ohms, R2=R3=R4=4 Ohms. What is the equivalent resistance Req for this circuit? RA R₂ R₂ R₃ O 0.8 ohms 1.5 ohms O 3.14 ohms O 0.67 ohms O 2.0 ohms
