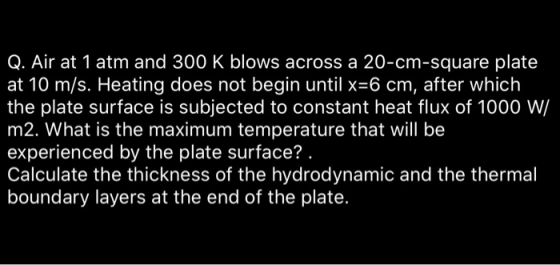

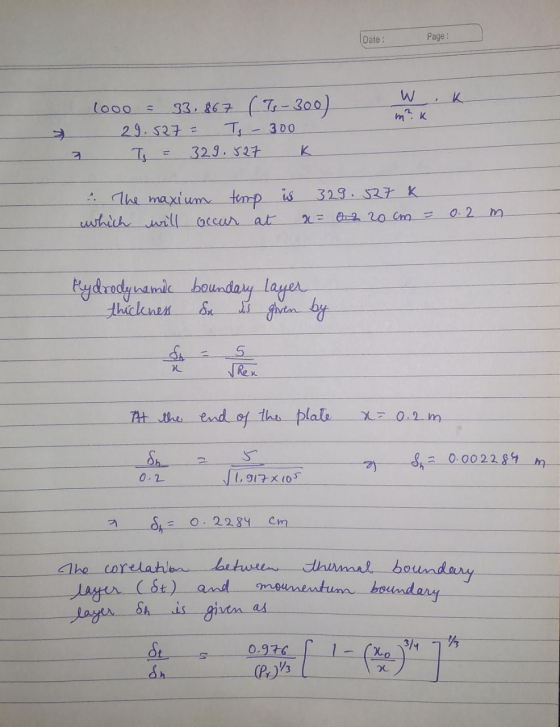

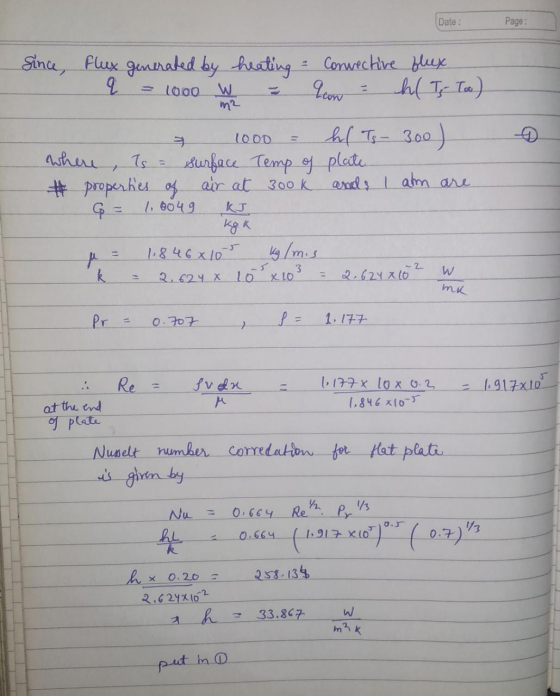

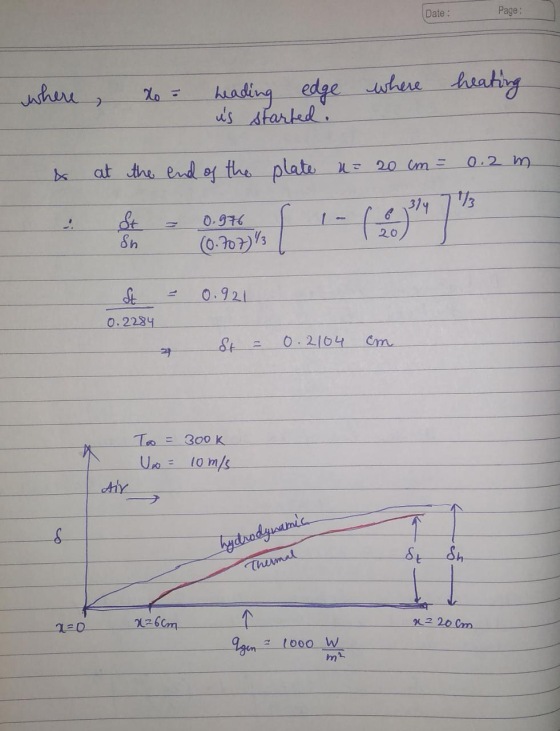

Q. Air at 1 atm and 300 K blows across a 20-cm-square plate at 10 m/s....
Air at 0.8 atm and 22 °C flows across a 40 cm square plate with a...
Air at 0.8 atm and 22 °C flows across a 40 cm square plate with a velocity of 10 m/s. The plate temperature is maintained at 120 °C. What is the average convective heat transfer coefficient? what is the rate of heat transfer in W? Ans. q = 268.8 W a. b.
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50...
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
list the assumptions (if appropriate), provide a sketch (if appropriate) A thin flat plate of length L-120 mm, thicknes...
list the assumptions (if appropriate), provide a sketch
(if appropriate)
A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k-20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x 0) = To-100°C and T(x = L) Ti-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection coefficient of h-50...
Consider the base plate of a 1200-W household iron that has a thickness of L =...
Consider the base plate of a 1200-W household iron that has a thickness of L = 0.5-cm, base area of A= 300-cm', and thermal conductivity of k = 15-W/m-C". The inner surface of the base plate is subjected to a uniform heat flux generated by the resistance heaters inside, and the outer surface losses heat to the surroundings at T = 20°C by convection. Taking the convection heat transfer coefficient to be h = 80-W/m--°C obtain an expression for the...
Need help with part B (the sketching!) thanks Problem 3: A thin flat plate of length...
Need help with part B (the sketching!) thanks
Problem 3: A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k=20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x = 0) = To-100 C and T(x = L) = T,-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection...
2-157 A long electrical resistance wire of radius r.-0.25 cm has a thermal conductivity kwire-15 W/m-K. Heat is gene...
2-157 A long electrical resistance wire of radius r.-0.25 cm has a thermal conductivity kwire-15 W/m-K. Heat is generated uniformly in the wire as a result of resistance heating at a constant rate of 0.5 W/cm3. The wire is covered with polyethylene insulation with a thickness of 0.25 cm and thermal conductivity of ks 0.4 W/m K. The outer surface of the insulation is subjected to free convection in air at 20°C and a convection heat transfer coefficient of 2...
Air at 25 °C and 1 atm is flowing over a long flat plate with a...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm...
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm is covered with an insulation material [k 0.2 W/(m. C)] of thickness 2 cm. A hot gas at 320°C with a heat transfer coefficient of 200 W/(m2.C) flows inside the tube. The outer surface of the insulation is exposed to cooler air at 20°C with a heat transfer coefficient of 50 W/(m2·°C). Calculate a) The heat loss from the tube to the air for...
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The...
1. 1.08x106 grams/h of a superheated fluid flows through a pipe in a power plant. The pipe is 1000 cm long, has an inner diameter of 0.05m and a wall thickness of 0.6 cm. The pipe has a thermal conductivity of 0.0017 kW/mK, and the inner pipe surface is at a uniform temperature of 393K. The temperature drop between the inlet and exit of the pipe is 7K, and the constant pressure specific heat of vapor is 2190 J/kgK. If...
izon- e and sur- osed loss calm ffec- e the ce to 1-106 A nonmetal plate...
izon- e and sur- osed loss calm ffec- e the ce to 1-106 A nonmetal plate (k = 0.05 W/m.K) and an ASME SA-240 stainless steel plate (k = 15 W/m-K) are bolted together by ASTM B21 naval brass bolts. Both plates have a thickness of 38 mm, and the brass bolts are bolted through both plates. The bottom steel plate surface (surface 1) is subjected to a uniform heat flux of 200 W/m². The top non- metal plate surface...
Air at 0.8 atm and 22 °C flows across a 40 cm square plate with a velocity of 10 m/s. The plate temperature is maintained at 120 °C. What is the average convective heat transfer coefficient? what is the rate of heat transfer in W? Ans. q = 268.8 W a. b.
Exercise 2 Air at 20 °C and 1 atm flows over a flat plate at 50 m/s. The plate is 300 cm long and is maintained at 60C. The width of the plate is 2 m. The critical Rec = 5 x 105 The properties are Conductivity k = 0.0263 W/mK, kinematic viscosity nu = v = 15.89 x 10-6 m²/s, Prandtl number is Pr=0.707 Density rho = p = 1.128 kg/m3 1. Determine the critical length Xc 2. Determine...
list the assumptions (if appropriate), provide a sketch
(if appropriate)
A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k-20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x 0) = To-100°C and T(x = L) Ti-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection coefficient of h-50...
Consider the base plate of a 1200-W household iron that has a thickness of L = 0.5-cm, base area of A= 300-cm', and thermal conductivity of k = 15-W/m-C". The inner surface of the base plate is subjected to a uniform heat flux generated by the resistance heaters inside, and the outer surface losses heat to the surroundings at T = 20°C by convection. Taking the convection heat transfer coefficient to be h = 80-W/m--°C obtain an expression for the...
Need help with part B (the sketching!) thanks
Problem 3: A thin flat plate of length L-120 mm, thickness t=4 mm, width W=30 mm, and thermal conductivity k=20 W/m-K is thermally joined to heat sinks at different temperatures, where T(x = 0) = To-100 C and T(x = L) = T,-35°C. The top surface of the plate is subjected to uniform heat flux q"-20 kW/m2, and the bottom surface of the plate is subjected to uniform convection with a convection...
2-157 A long electrical resistance wire of radius r.-0.25 cm has a thermal conductivity kwire-15 W/m-K. Heat is generated uniformly in the wire as a result of resistance heating at a constant rate of 0.5 W/cm3. The wire is covered with polyethylene insulation with a thickness of 0.25 cm and thermal conductivity of ks 0.4 W/m K. The outer surface of the insulation is subjected to free convection in air at 20°C and a convection heat transfer coefficient of 2...
Air at 25 °C and 1 atm is flowing over a long flat plate with a velocity of 8 m/s. (a) Determine the distance from the leading edge of the plate where the flow becomes turbulent. (b) What will be the boundary layer thickness at the end of the plate? (c) If the plate is a 2m by 2 m square, what will be the friction drag acting on the plate? Schematic Given ssumptions Find v=8m/s xcr ,FD ,δ@x=L L-2m...
1. A steel tube [k 15 W/(m.°C)] of outside diameter 7.6 cm and thickness 1.3 cm is covered with an insulation material [k 0.2 W/(m. C)] of thickness 2 cm. A hot gas at 320°C with a heat transfer coefficient of 200 W/(m2.C) flows inside the tube. The outer surface of the insulation is exposed to cooler air at 20°C with a heat transfer coefficient of 50 W/(m2·°C). Calculate a) The heat loss from the tube to the air for...
izon- e and sur- osed loss calm ffec- e the ce to 1-106 A nonmetal plate (k = 0.05 W/m.K) and an ASME SA-240 stainless steel plate (k = 15 W/m-K) are bolted together by ASTM B21 naval brass bolts. Both plates have a thickness of 38 mm, and the brass bolts are bolted through both plates. The bottom steel plate surface (surface 1) is subjected to a uniform heat flux of 200 W/m². The top non- metal plate surface...
